Procom MN100HBG - Page 12

www.usaprocom.com
200307-01E12

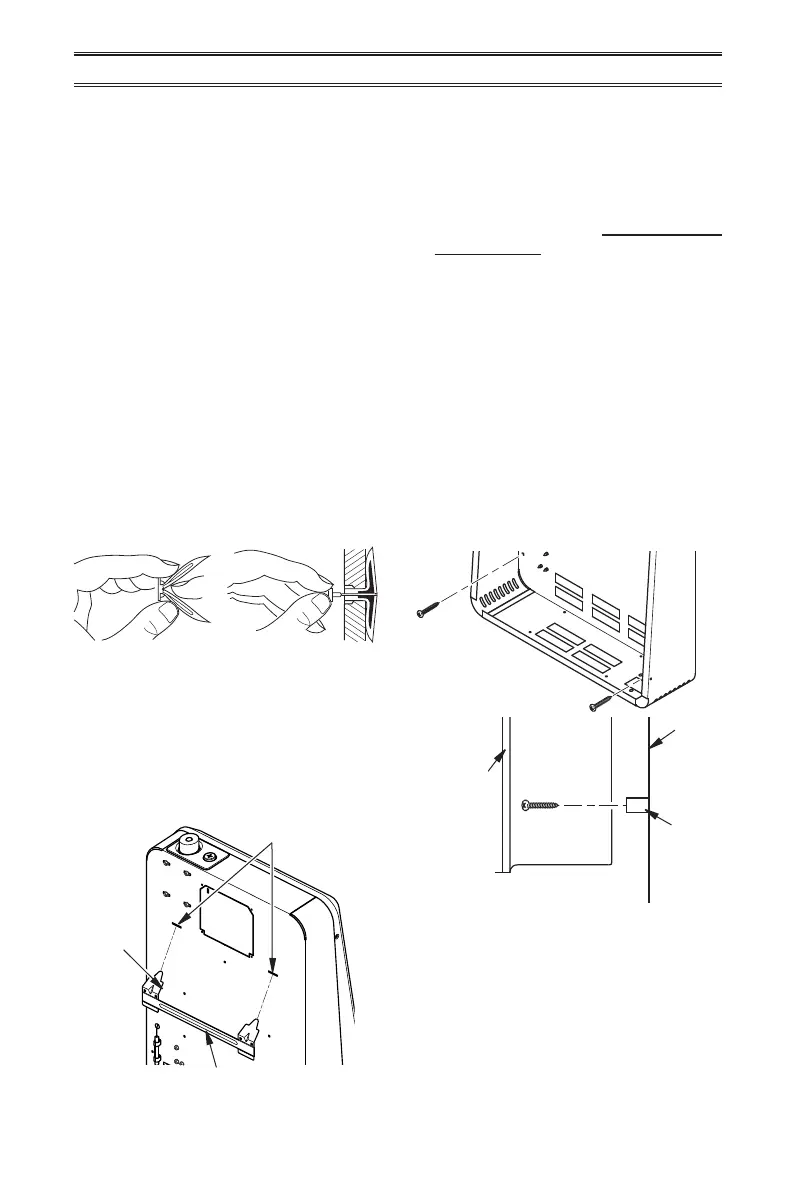

INSTALLATION
Installing Wall Spacers
1. Place heater on wall mounting bracket.
2. Mark screw locations on wall.
3. Remove heater from mounting bracket.
4. If installing bottom mounting screws into hol-
low or solid wall, install wall anchors. Follow
steps 1 through 4 under Attaching To Wall
Anchor Method, page 11. If installing bottom
mounting screw into wall stud, drill holes at
marked locations using 9/64" drill bit.
5. Replace heater onto mounting bracket.
6. Place spacers between bottom mounting
holes and wall anchor or drilled hole.
7. Hold spacer in place with one hand. With other
hand, insert mounting screw though bottom
mounting hole and spacer. Place tip of screw
in opening of wall anchor or drilled hole.
8. Tighten both screws until heater is rmly
secured to wall. Do not over tighten.
Note: Do not replace front panel at this time.
Replace front panel after making gas connec-
tions and checking for leaks.
Figure 10 - Mounting Heater Onto
Mounting Bracket
Mounting Bracket (attached to wall)
Horizontal Slots
Stand-
Out
Tab
Figure 11 - Installing Bottom Mounting
Screws
Placing Heater On Mounting Bracket
1. Locate two horizontal slots on back panel
of heater (see Figure 10).
2. Place heater onto mounting bracket. Slide
horizontal slots onto stand-out tabs on
mounting bracket.
Side View
Front View
Side View
Front View
Wall
Spacer
Heater
Figure 8 - Folding
Anchor
Figure 9 - Popping
Open Anchor Wings
For Thin Walls
Attaching to Wall Anchor Method
For attaching mounting bracket to hollow
walls (wall areas between studs) or solid walls
(concrete or masonry):
1. Drill holes at marked locations using
5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 8.
3. Insert wall anchor (wings rst) into hole.
Tap anchor ush to wall.
4. For thin walls (1/2" or less), insert red key
into wall anchor. Push red key to “pop”
open anchor wings (see Figure 9).
IMPORTANT: Do not hammer anchor key! For
thick walls (over 1/2" thick) or solid walls, do
not pop open wings.
5. Place mounting bracket onto wall. Line up
last hole on each end of bracket with wall
anchors.
6. Insert mounting screws through bracket
and into wall anchors.
7. Tighten screws until mounting bracket is
rmly fastened to wall.
