Clip remaining renting ties and remove packaging.
Tighten 8 mounting screws securely.
OB7 Collaborative Robot User Manual Version 0.6
Getting Started With OB7 / 19

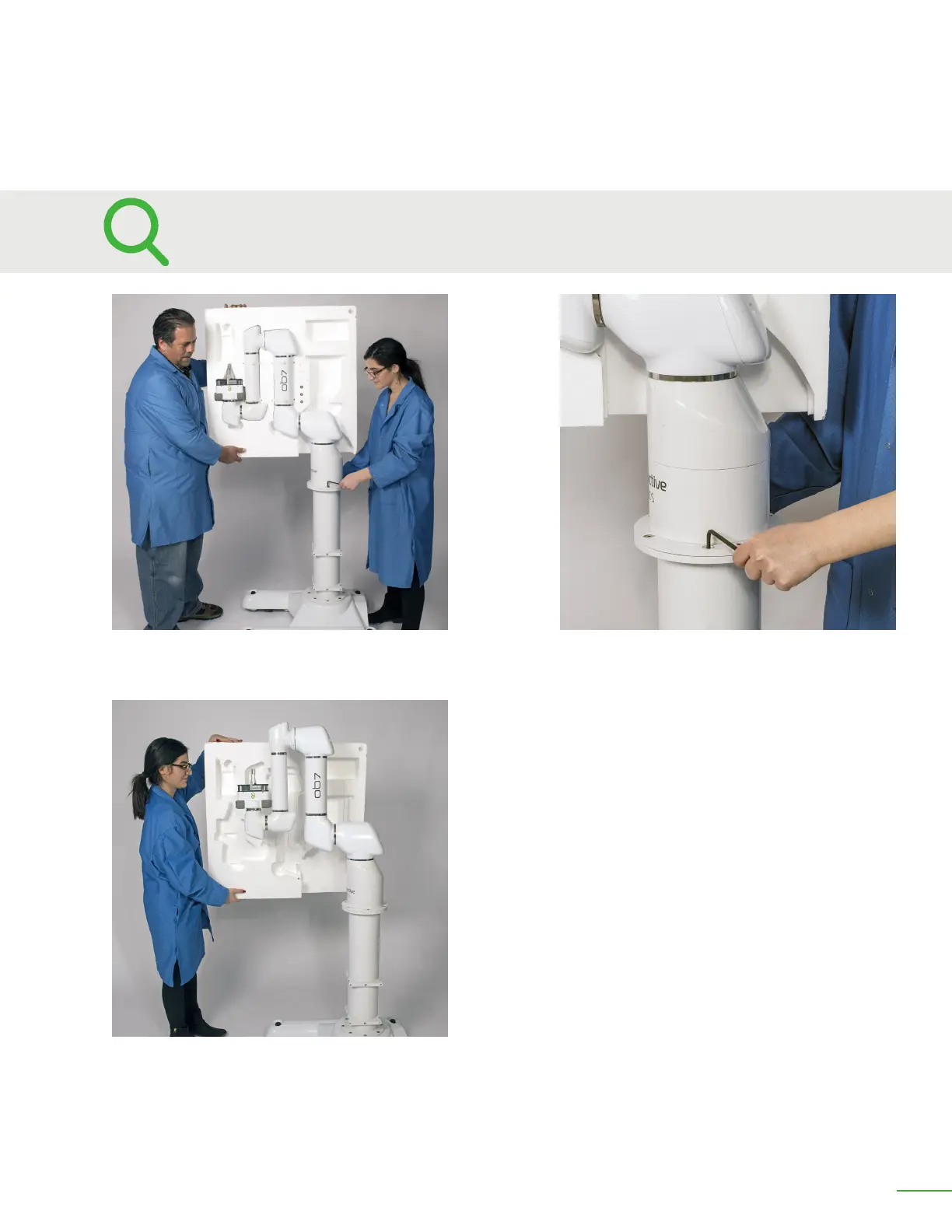

Place OB7 in package onto mounting.
Step 4: Use two people for this step. Using the 6 screws provided, mount OB7. Tighten the mounting
screws securely. Aer securely mounting OB7, clip the remaining ties and remove the foam packaging.
Note: The OB7 weighs 26 kg, or 58 lbs. Use two people to li OB7 onto its mounting.
