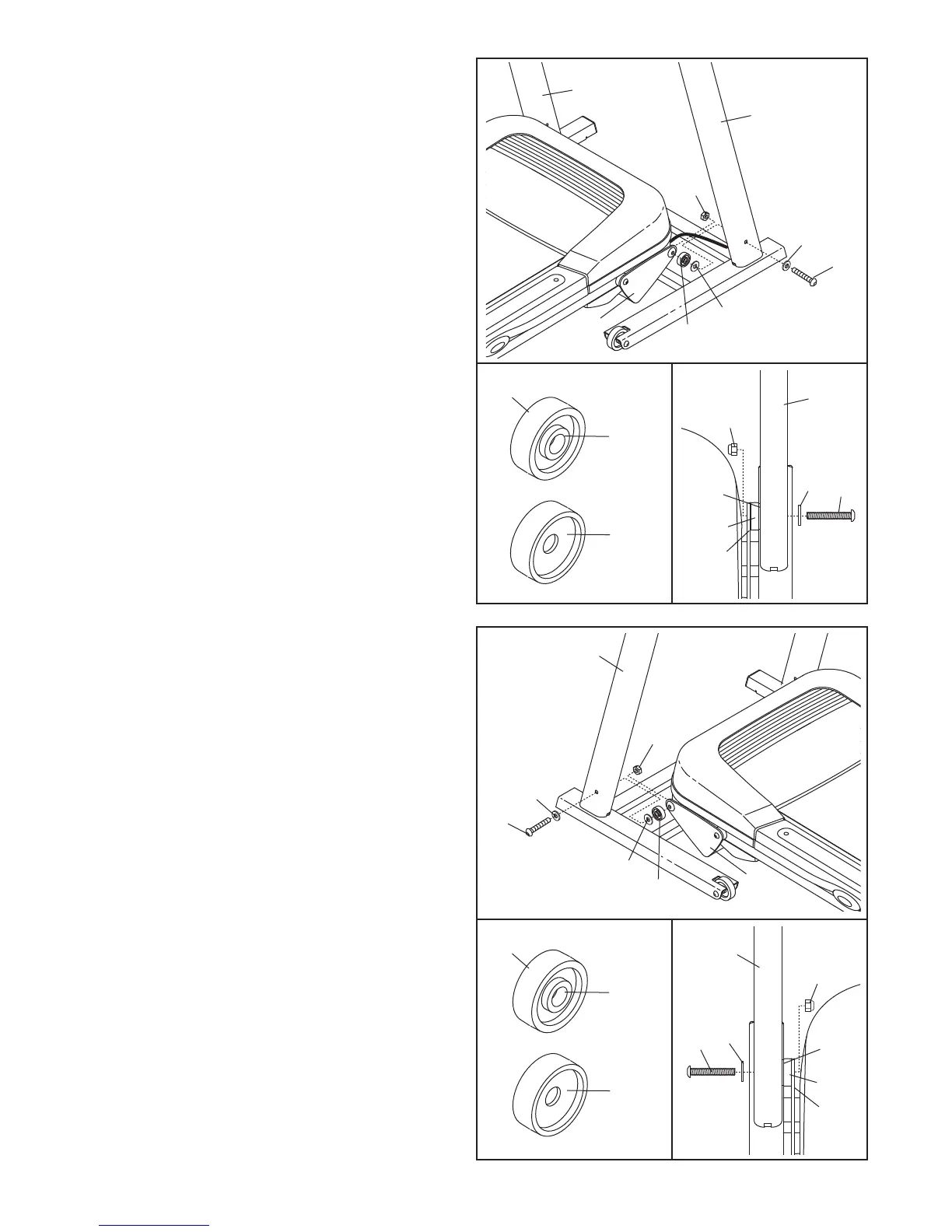

4. Raise the Uprights (38, 39).
S
ee the left inset drawing. Identify the two Frame
Spacers (96). Open the included packet of
g
rease, and apply grease to both sides of both
Frame Spacers. Next, identify the outer side of
each Frame Spacer.
Hold a Frame Spacer (96) and a Frame Washer
(99) between the Right Upright (39) and the Lift
Frame (41), with the outer side of the Frame
Spacer facing the Frame Washer and the
Right Upright.
Attach the Right Upright to the
Lift Frame with a Frame Bolt (1), an Upright
Washer (7), and a Nut (12);
do not tighten the
Nut yet.
4
3
8
3
9
1
1
96
96
99
7
12
12
41
7
41
Outer
Side
Inner
Side
96
39
99
5. Hold the remaining Frame Spacer (96) and
Frame Washer (99) between the Left Upright
(38) and the Lift Frame (41), with the outer side
of the Frame Spacer facing the Frame
Washer and the Left Upright. Attach the Left
Upright to the Lift Frame with a Frame Bolt (1),
an Upright Washer (7), and a Nut (12); do not
tighten the Nut yet.
5
38
1
1
96
96
99
7
99
12
12
41
7
41
Outer
Side
Inner
Side
96
38
8
