8

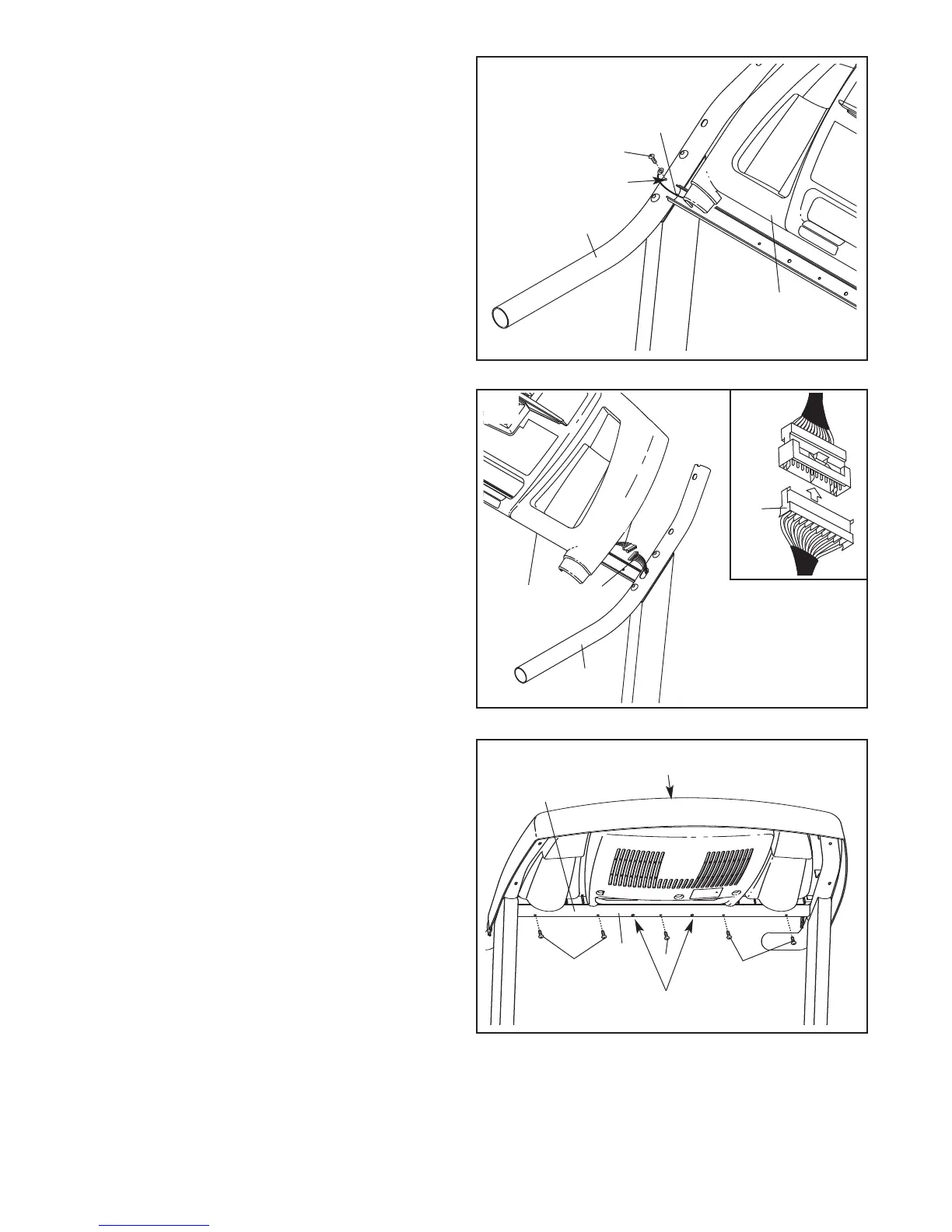

5. While a second person holds the console as-
s
embly near the Handrail (20), attach the ground
wire to the indicated hole in the Handrail with a
G
round Screw (33).
20
H
ole
Ground
Wire
Console
Assembly
33
5
7. Set the console assembly on the Handrail (20).
Be careful to avoid pinching any of the wires.
Make sure that the ground wire (see step 5)
and the wire harness from the console as
-
sembly (see step 6) are in the indicated chan-
nel.
Hand tighten five Screws (3) into the Handrail
(20) and the console assembly. Start all five
Screws, but do not tighten them yet. Do not
put Screws into the two indicated holes.
6. While the second person continues to hold the
console assembly, locate the wire harness un-
derneath the console assembly
.
Connect the wire harness from the console as-
sembly to the Upright Wire Harness (77).
Make
sure to connect the connectors properly (see
the inset drawing). The connectors should
slide together easily and snap into place. If
the connectors do not slide together easily and
snap into place, turn one connector and then try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, insert the connectors down-
ward into the Handrail (20).
Console Assembly
3
3
No Screws
3
20
77
Console
Assembly
77
20
7
6
Channel
Wire
