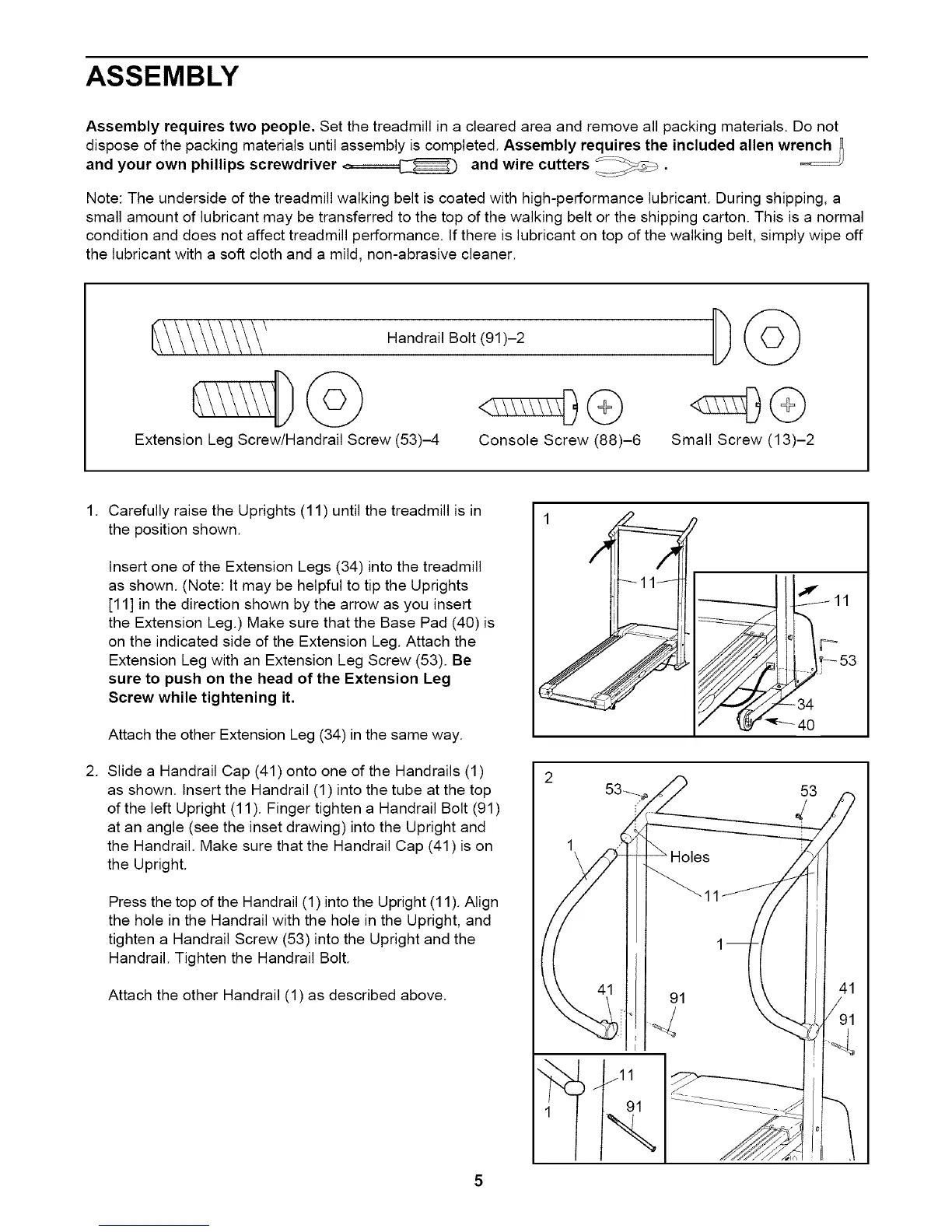

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench [_
and your own phillips screwdriver _ and wire cutters _?_.
_J
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Extension Leg Screw/Handrail Screw (53)-4
Handrail Bolt (91)-2
Console Screw (88)-6
D
Small Screw (13)-2
1. Carefully raise the Uprights (11) until the treadmill is in
the position shown.
Insert one of the Extension Legs (34) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert
the Extension Leg.) Make sure that the Base Pad (40) is
on the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be
sure to push on the head of the Extension Leg
Screw while tightening it.
Attach the other Extension Leg (34) in the same way.
2. Slide a Handrail Cap (41) onto one of the Handrails (1)
as shown. Insert the Handrail (1) into the tube at the top
of the left Upright (11). Finger tighten a Handrail Bolt (91)
at an angle (see the inset drawing) into the Upright and
the Handrail. Make sure that the Handrail Cap (41) is on
the Upright.
Press the top of the Handrail (1) into the Upright (11). Align
the hole in the Handrail with the hole in the Upright, and
tighten a Handrail Screw (53) into the Upright and the
Handrail. Tighten the Handrail Bolt.
Attach the other Handrail (1) as described above.
To Next Page
