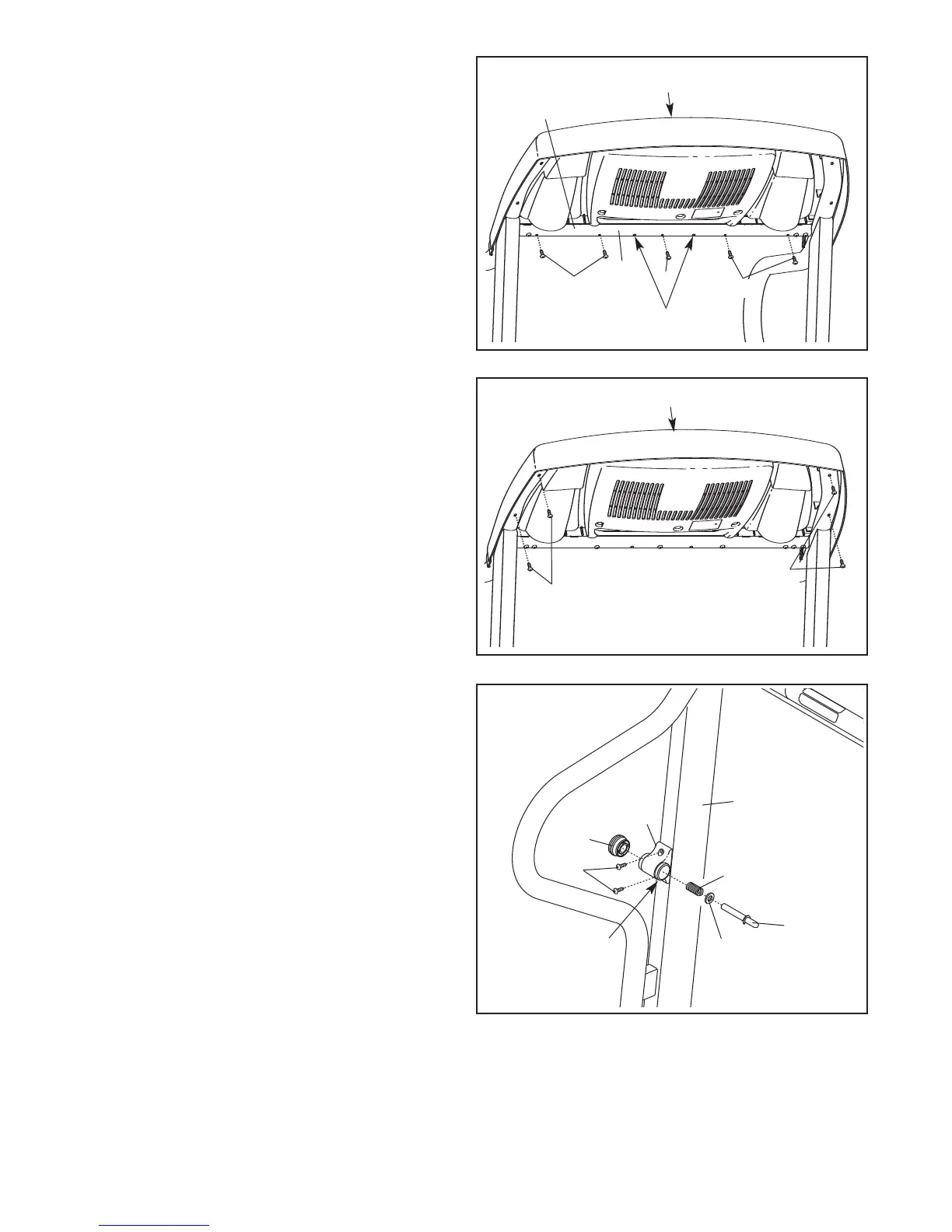

9
9. Hand tighten four additional #8 x 3/4" Screws
(19) into the console assembly. Then, tighten
all nine Screws used in step 8 and this step;
do not overtighten the Screws.
Console Assembly
19
9
19
10. Attach the Latch Housing (73) to the left Upright
(84) with two #8 x 3/4" Screws (19). Make sure
that the large hole in the Latch Housing is on
the side shown. Do not overtighten the
Screws.
If the pin is not preassembled in the Latch
Housing (73), remove the knob from the pin.
Make sure that the collar and the spring are on
the pin as shown. Insert the pin into the Latch
Housing, and tighten the knob back onto the
pin.
Plug in the power cord as described on page
11, and turn on the power as described on page
13. Note: The treadmill may automatically rise to
the maximum incline level and then return to the
minimum level.
19
84
10
Knob
Pin
Collar
Large
Hole
Spring
73
8. Set the console assembly on the Crossbar (20).
Be careful to avoid pinching any of the
w
ires. Make sure that the ground wire (see
step 6) and the console wire harness (see
s
tep 7) are inside the indicated channel.
Hand tighten five #8 x 3/4" Screws (19) into the
Crossbar (20) and the console assembly. Start
all five Screws, but do not tighten them yet.
Do not put Screws into the two indicated
holes.
Console Assembly
19
19
19
No Screws
20
8
Channel
To Next Page
