6
ASSEMBLY

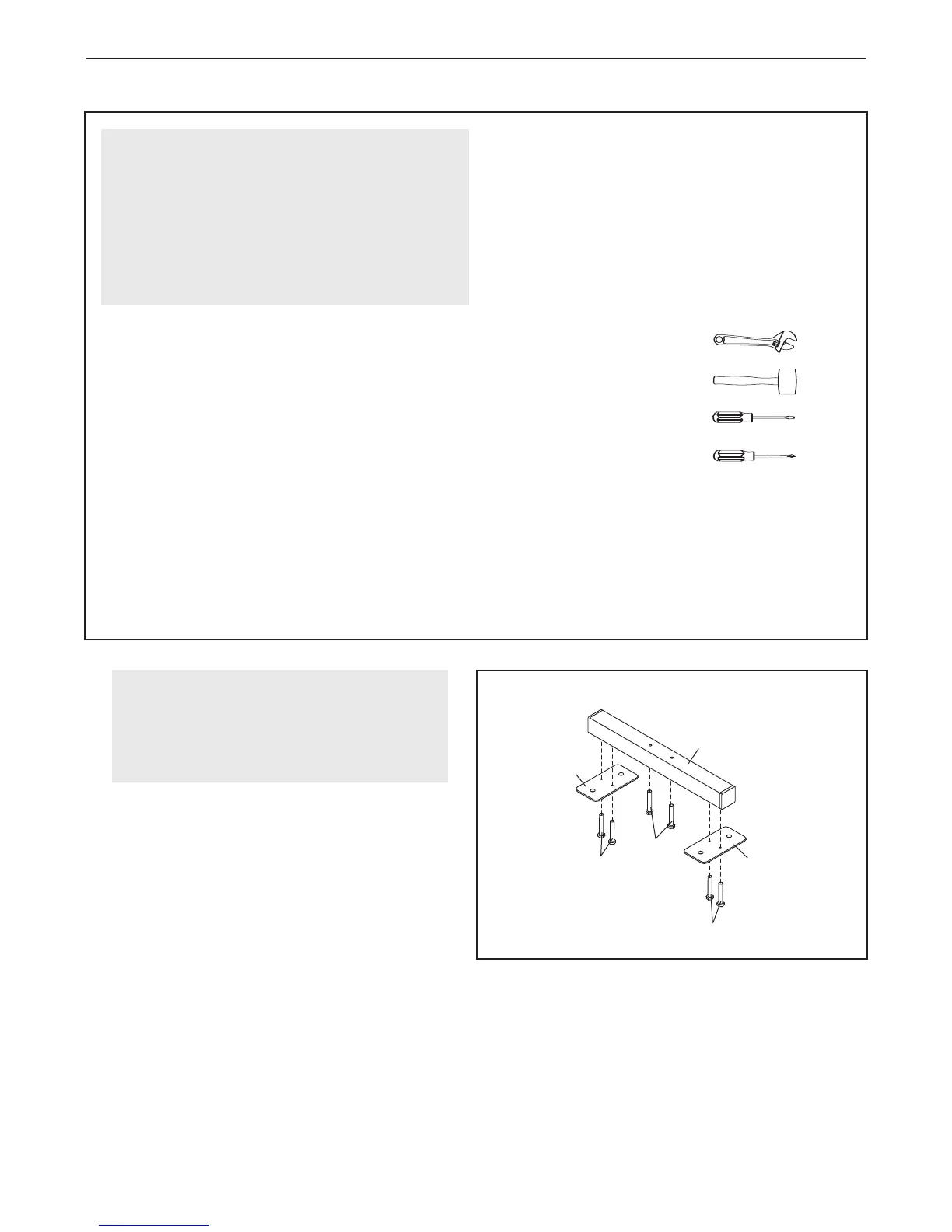

1.
Attach the two Rear Stabilizers (5) to the Base
(4) with four M4 x 15mm Screws (20).
Insert two M8 x 70mm Carriage Bolts (26) up
through the Base (4).
It may be helpful to
place a piece of tape over the Carriage Bolts
to hold them in place.
5
5
20
20
4
1
26
Before beginning assembly, make sure
that you have read and understand the
information in the box above. See the
PART IDENTIFICATION CHART on page 5
for help identifying small parts.
Before beginning assembly, carefully read the fol-
lowing information and instructions:
• To hire an authorized service technician to
assemble the weight bench, call 1-800-445-2480.
• Assembly requires two persons.
• Because of its size, the weight bench should be
assembled in the location where it will be used.
Make sure that there is enough clearance to walk
around the weight bench as you assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
•
Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight bench, make sure all
p
arts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
• Assembly requires the following tools (not
included):
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Make Assembly Easier
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by almost anyone. However, the weight
bench has many parts and the assembly
process will take time. By setting aside plenty of
time, assembly will go smoothly.
