7
6. Attach the Seat (12) to the Seat Carriage (11) with
four 1/4” x 16mm Hex Screws (29) and four M8 Flat
Washers (18).
7.
Attach the Right Seat Handle (31) to the Seat
Carriage (11) with two M8 x 19mm Button Bolts (43)
and two M8 Nylon Locknuts (56).
Attach the Left Seat Handle (14) to the Seat
Carriage (11) in the same way.
43
31
14
56
11
6
7
12
11
29
18

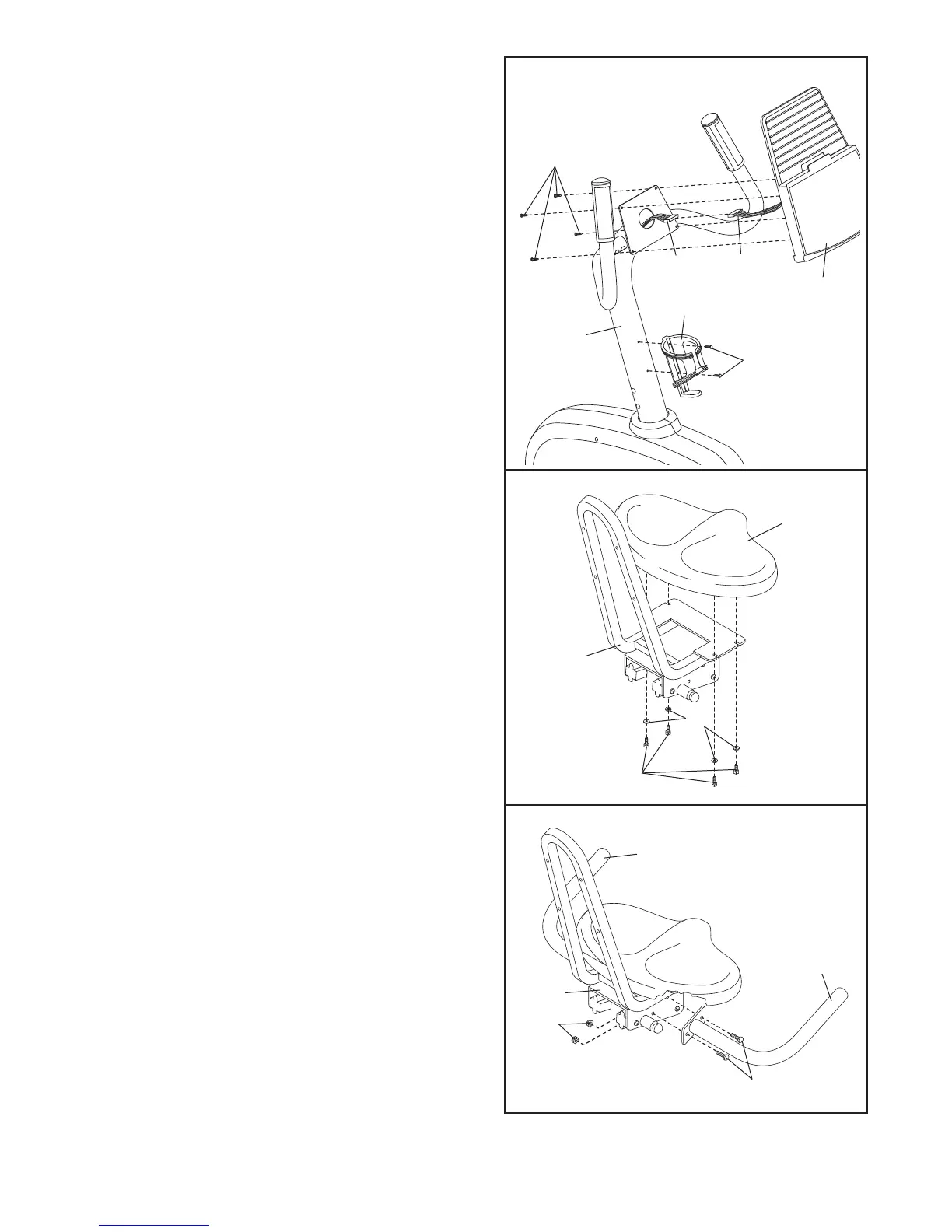

5. Hold the Console (9) near the Handlebar Post (6).
Connect the wire harness on the Console (9) to the
Upper W
ire Harness (16). Then, insert the wire har-
nesses into the Handlebar Post.
Attach the Console (9) to the Handlebar Post (6)
with four M4 x 16mm Screws (21).
Be careful to
avoid pinching the wire harnesses.
Attach the Bottle Holder (69) to the Handlebar Post
(6) with two M4 x 21mm Screws (81). Note: The
bottle holder is designed to be used with your own
bottle.
69
6
81
9
Wire
Harness
16
21
5
To Next Page
