ProForm J6SI - Part List

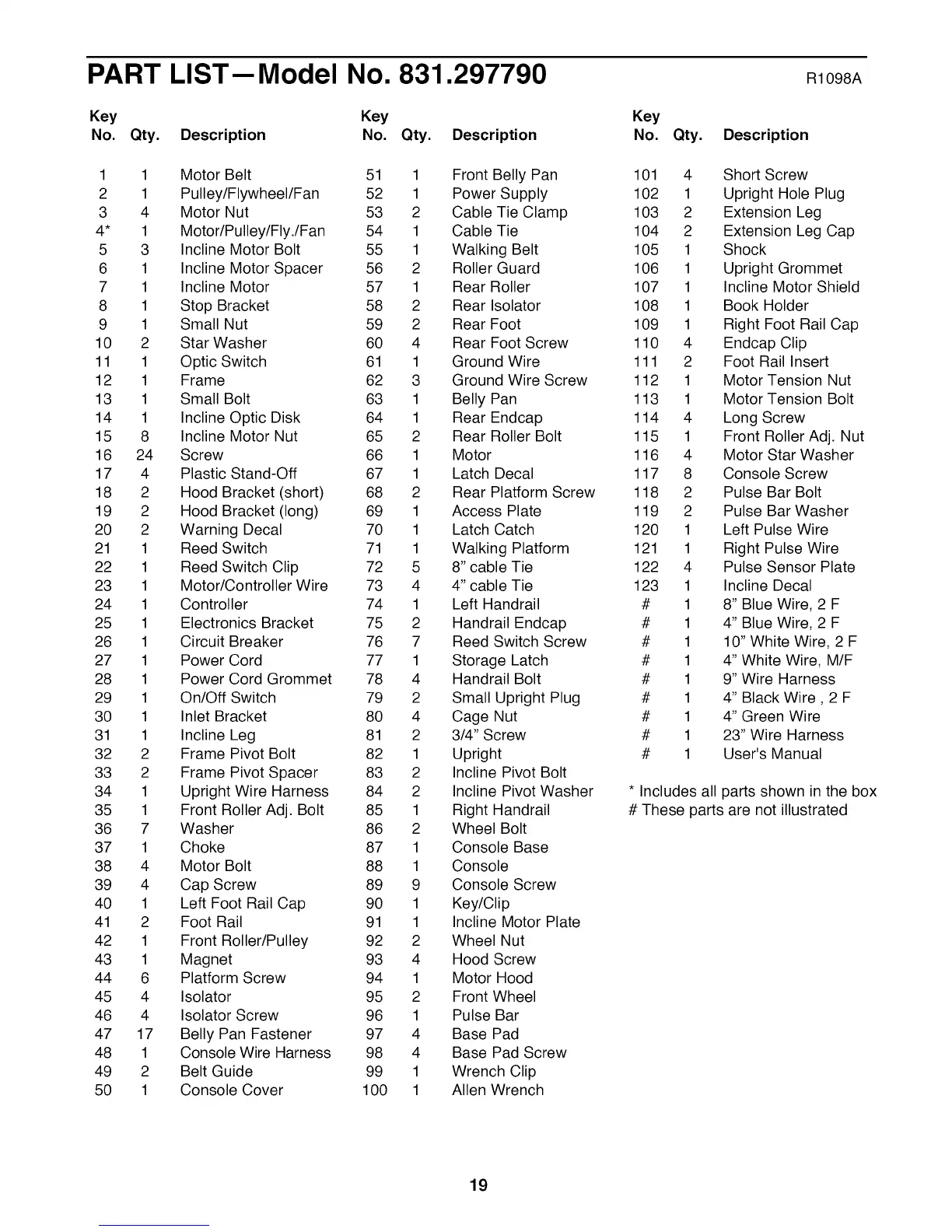

PART LIST--Model No. 831.297790 R1098A
Key Key
No. Qty. Description No. Qty. Description
1 1 Motor Belt 51 1 Front Belly Pan
2 1 Pulley/Flywheel/Fan 52 1 Power Supply
3 4 Motor Nut 53 2 Cable Tie Clamp
4* 1 Motor/Pulley/Fly./Fan 54 1 Cable Tie
5 3 Incline Motor Bolt 55 1 Walking Belt
6 1 Incline Motor Spacer 56 2 Roller Guard
7 1 Incline Motor 57 1 Rear Roller
8 1 Stop Bracket 58 2 Rear Isolator
9 1 Small Nut 59 2 Rear Foot
10 2 Star Washer 60 4 Rear Foot Screw
11 1 Optic Switch 61 1 Ground Wire
12 1 Frame 62 3 Ground Wire Screw
13 1 Small Bolt 63 1 Belly Pan
14 1 Incline Optic Disk 64 1 Rear Endcap
15 8 Incline Motor Nut 65 2 Rear Roller Bolt
16 24 Screw 66 1 Motor
17 4 Plastic Stand-Off 67 1 Latch Decal
18 2 Hood Bracket (short) 68 2 Rear Platform Screw
19 2 Hood Bracket (long) 69 1 Access Plate
20 2 Warning Decal 70 1 Latch Catch
21 1 Reed Switch 71 1 Walking Platform
22 1 Reed Switch Clip 72 5 8" cable Tie
23 1 Motor/Controller Wire 73 4 4" cable Tie
24 1 Controller 74 1 Left Handrail
25 1 Electronics Bracket 75 2 Handrail Endcap
26 1 Circuit Breaker 76 7 Reed Switch Screw
27 1 Power Cord 77 1 Storage Latch
28 1 Power Cord Grommet 78 4 Handrail Bolt
29 1 On/Off Switch 79 2 Small Upright Plug
30 1 Inlet Bracket 80 4 Cage Nut
31 1 Incline Leg 81 2 3/4" Screw
32 2 Frame Pivot Bolt 82 1 Upright
33 2 Frame Pivot Spacer 83 2 Incline Pivot Bolt
34 1 Upright Wire Harness 84 2 Incline Pivot Washer
35 1 Front Roller Adj. Bolt 85 1 Right Handrail
36 7 Washer 86 2 Wheel Bolt
37 1 Choke 87 1 Console Base
38 4 Motor Bolt 88 1 Console
39 4 Cap Screw 89 9 Console Screw
40 1 Left Foot Rail Cap 90 1 Key/Clip
41 2 Foot Rail 91 1 Incline Motor Plate
42 1 Front Roller/Pulley 92 2 Wheel Nut
43 1 Magnet 93 4 Hood Screw
44 6 Platform Screw 94 1 Motor Hood
45 4 Isolator 95 2 Front Wheel
46 4 Isolator Screw 96 1 Pulse Bar
47 17 Belly Pan Fastener 97 4 Base Pad
48 1 Console Wire Harness 98 4 Base Pad Screw
49 2 Belt Guide 99 1 Wrench Clip
50 1 Console Cover 100 1 Allen Wrench
Key
No. Qty. Description
101 4 Short Screw
102 1 Upright Hole Plug
103 2 Extension Leg
104 2 Extension Leg Cap
105 1 Shock
106 1 Upright Grommet
107 1 Incline Motor Shield
108 1 Book Holder
109 1 Right Foot Rail Cap
110 4 Endcap Clip
111 2 Foot Rail Insert
112 1 Motor Tension Nut
113 1 Motor Tension Bolt
114 4 Long Screw
115 1 Front Roller Adj. Nut
116 4 Motor Star Washer
117 8 Console Screw
118 2 Pulse Bar Bolt
119 2 Pulse Bar Washer
120 1 Left Pulse Wire
121 1 Right Pulse Wire
122 4 Pulse Sensor Plate
123 1 Incline Decal
# 1 8" Blue Wire, 2 F
# 1 4" Blue Wire, 2 F
# 1 10" White Wire, 2 F
# 1 4" White Wire, M/F
# 1 9" Wire Harness
# 1 4" Black Wire, 2 F
# 1 4" Green Wire
# 1 23" Wire Harness
# 1 User's Manual
* Includes all parts shown in the box
# These parts are not illustrated
