Manual Profound VIBRA-series, version 2.00
25

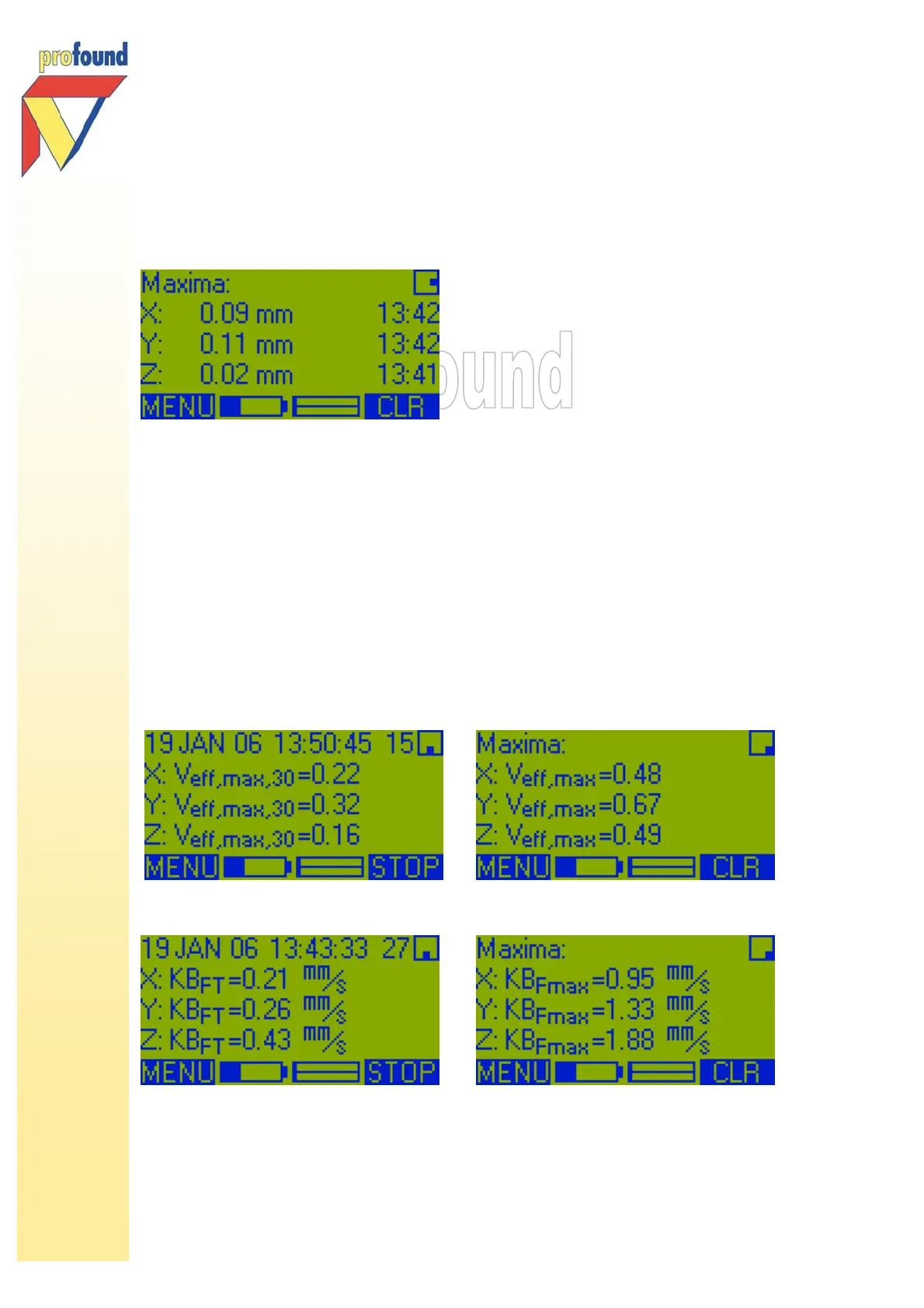

The display of the maximum displacements / u / is only available in the VIBRA
+
:
5.2.1.3 Measuring values in accordance with the governing code
Press  again to view the system information and the measuring values that are automatically
registered in accordance with the governing code for Effects on persons in buildings:
• the v
eff,max
–values in accordance with SBR 2002 are shown (VIBRA-sbr only).
• the KB-values in accordance with DIN 4150 or the v
eff,max
-values in accordance
with SBR (VIBRA
+
only).
A data save level of 0.1 has been set for both the values, as specified in the respective governing
codes. Measuring values below this threshold are not saved and displayed as 0 in the PC software.
This measurement is done fully parallel with the measurement Effects on Structures.
Measuring values according to the SBR 2002 (VIBRA-sbr and VIBRA
+
):
Measuring values according to the DIN 4150 (only shown by the VIBRA
+
):
