3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.

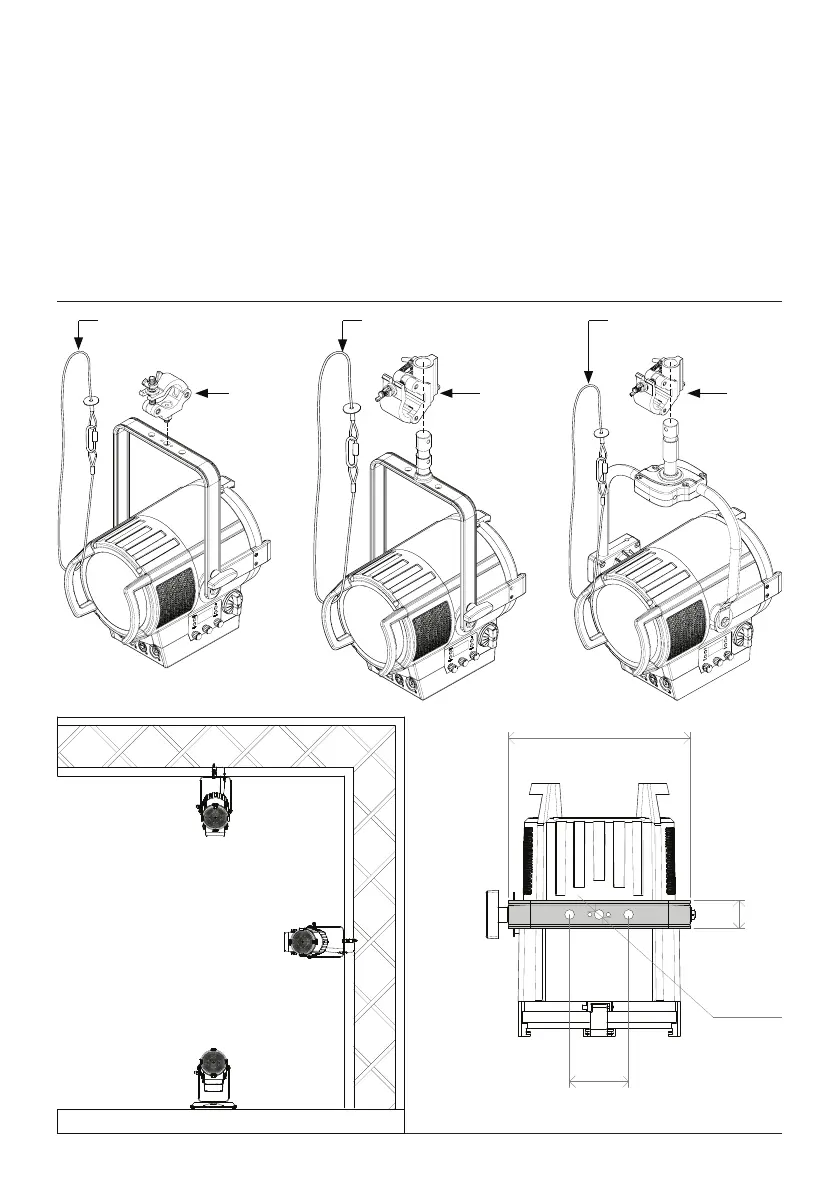

C6002
clamp
C6040
clamp
RSR0630A/B
steel security cable
RSR0630A/B
steel security cable
38 mm
1.5 in
246 mm
9.7 in
80 mm
3.1 in
Ø13 mm
Ø0.5 in
C6040
clamp
RSR0630A/B
steel security cable
