PROLIGHTS - EclFresnel TW / PTW 13

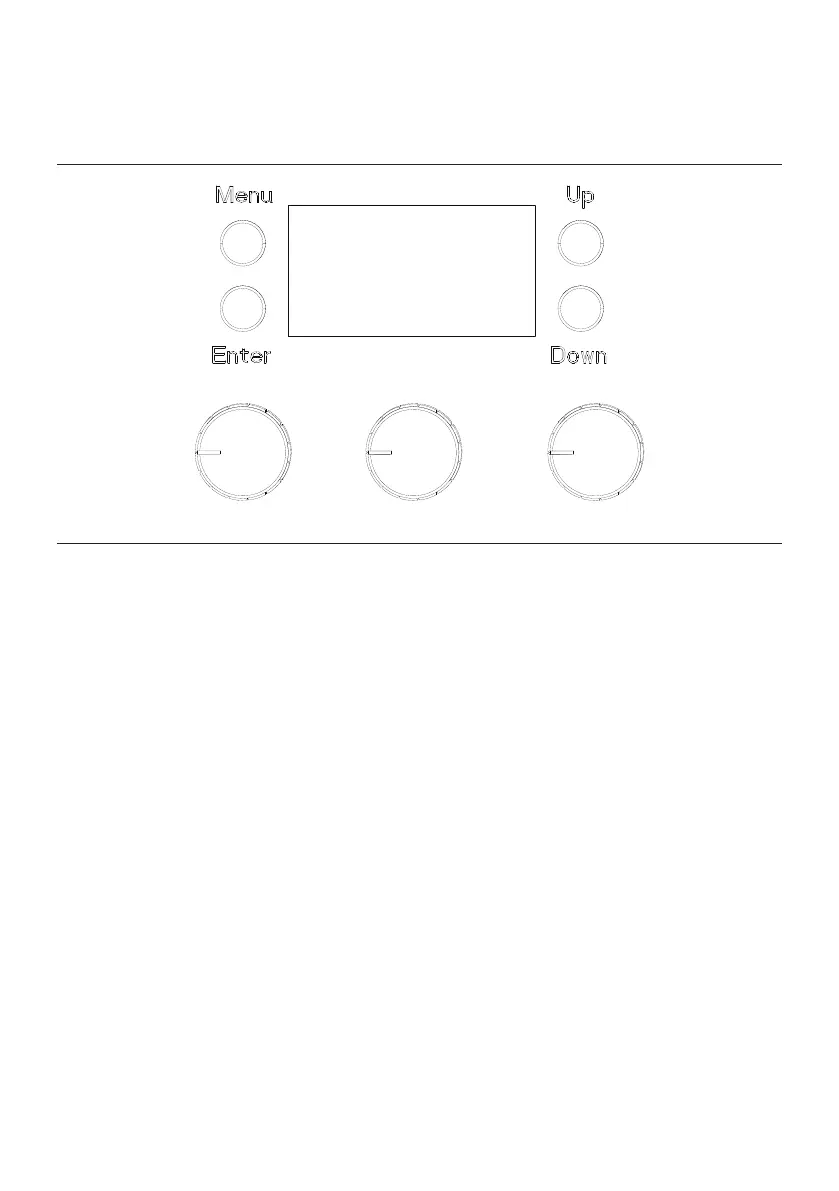

Fig. 08
8 - CONTROL PANEL
The product has a display and buttons for access to the control panel functions.
DISPLAY AND BUTTONS LAYOUT
The product has a display and buttons for access to the control panel functions:
• MENU: used to access the menu tree or to return a previous menu window;
• UP: browse upwards through the menu list and increases the numeric value displayed;
• DOWN: browse downwards through the menu list and decreases the numeric value displayed;
• ENTER: used to conrm the current menu or conrm the current function value or option within a
menu.
• ROTARY KNOB 1, 2, 3: used to control stand alone modes.
ROTARY KNOB 1 ROTARY KNOB 2 ROTARY KNOB 3
