EVO64CYC
Structure and power supply
• Forced-air cooling with no-noise fans
• Internal Protection: IP20
• Mechanics for individual adjustment of LED panels positioning
• Individual LED panels excursion: -10°-/+90°
• Omega kit with “quick lock” system for suspension included
• Input/Output connections: Neutrik Powercon, 3p/5p XLR
• Power (shuko) and data (xlr-3p) cables included
• Double bracket for safe hanging and for oor positioning
• Power supply: 100-240V 50/60Hz
• Working conditions: -20/45°
• Power output for daisy-chain connection of more units: up to 10 projectors at 230V
• Max output consumption: 195W
• Weight: 10,00 kg
• Dimensions (WxHxD): 390x310x298 mm

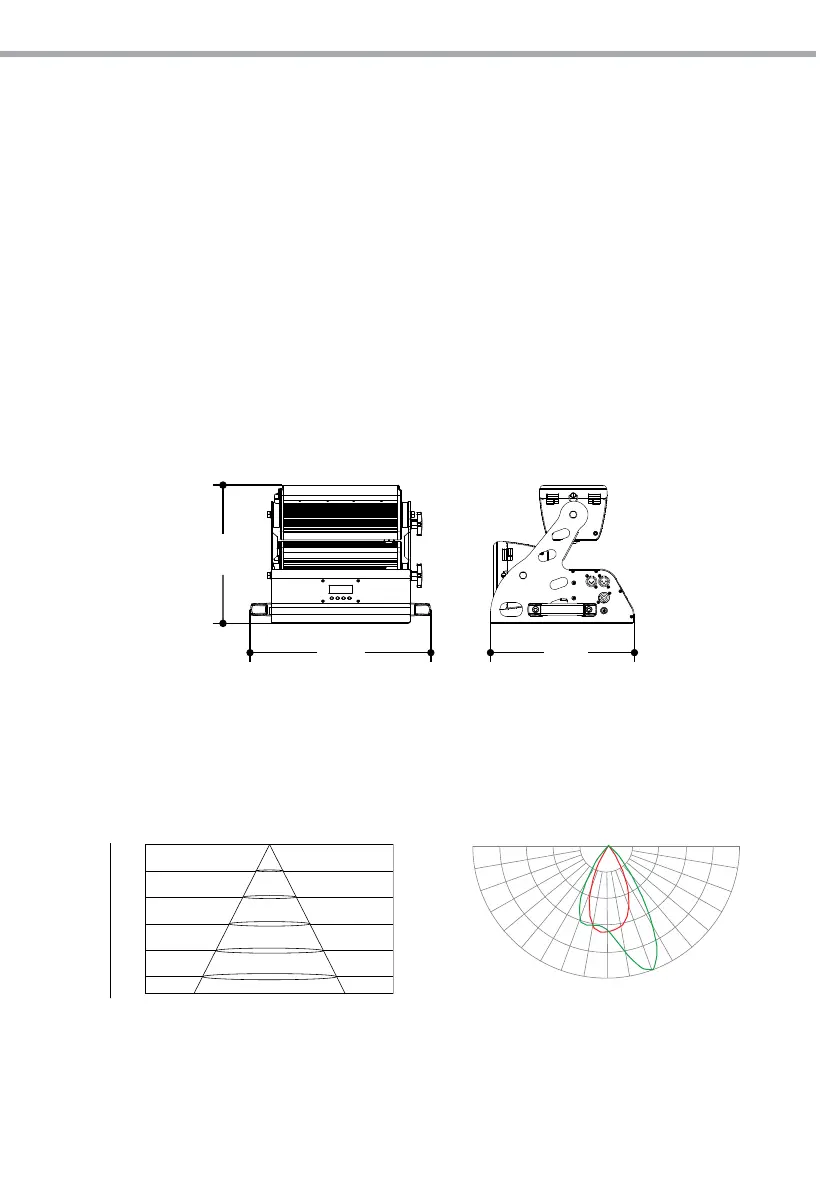

Photometric data
Fig.1
Fig.2
298
310390
Illuminance at a Distance
55°
2.0m
4.0m
6.0m
8.0m
10.0m
0.20m
0.41m
0.61m
0.82m
1.02m
Eavg/Emax Beam Angle: 54.3°
Beam Width
707/1181lx
176/295lx
78/131lx
44/73lx
28/47lx
Light Intensity Distribution (55°)
— Vert. Intensity (cd)
— Hori. Intensity (cd)
-60 60
-30 30
0
Average Beam Angle ( 50% ) : 54.3°
90
-90
2200
3300
4400
5500
1100
