ProLights EVO64CYC - Appendix; Exploded View

21
EVO64CYC
- 5 - APPENDIX

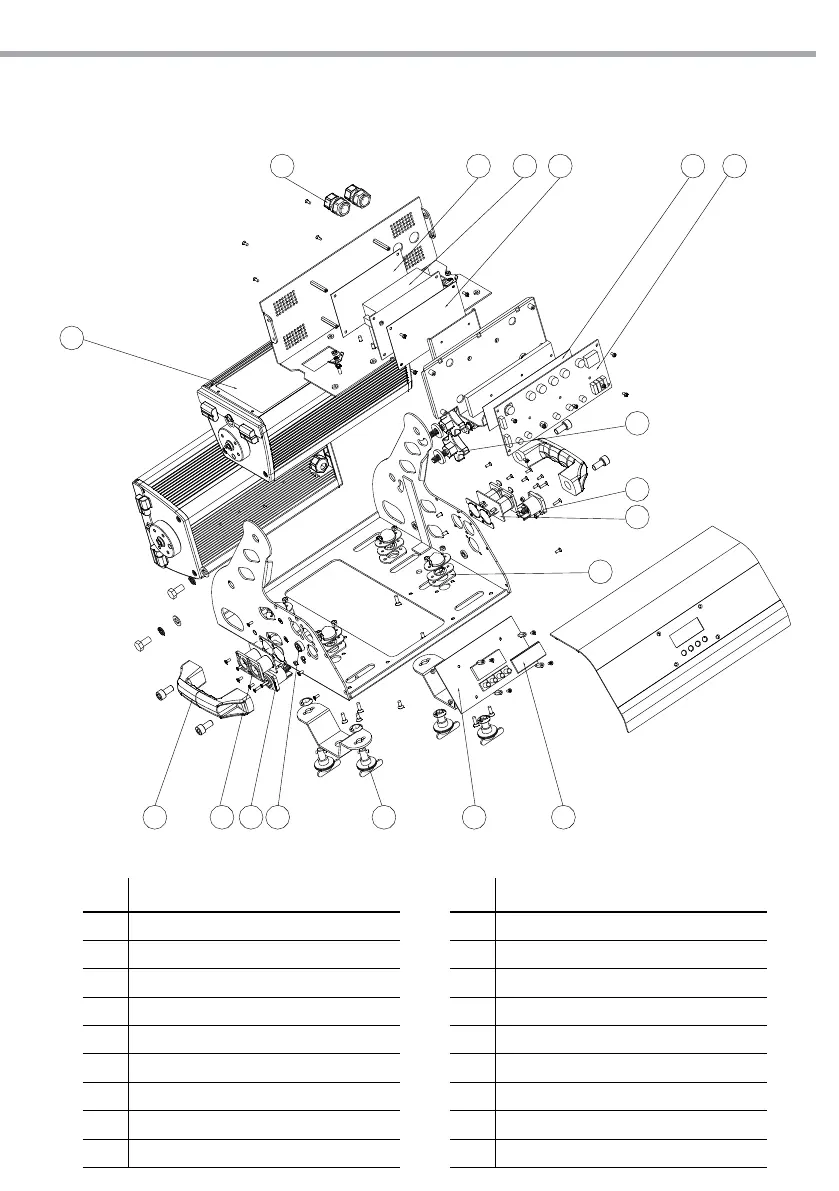

5.1 EXPLODED VIEW
7
12
345
6
15
8
9
10 11
12 13 14
17
16
18
No ITEM
1 Driver board
2 Thermal silica gel pad
3 PS isolation sheet
4 Power supply
5 PS insulating heat conduction sheet
6 Black nylon water joint
7 Lamp cap
8 Base handle (general)
9 Adaptor PCB
No ITEM
10 PS socket (male)
11 Fuse holder
12 Quick-lock
13 Display PCB
14 Display screen lens
15 Quick-lock cushion
16 Adaptor PCB
17 PS socket (male)
18 Adjusting stainless steel knob
Fig.11
