ProLights SmartBat Plus - Operating Elements and Connections

5
SMARTBATPLUS

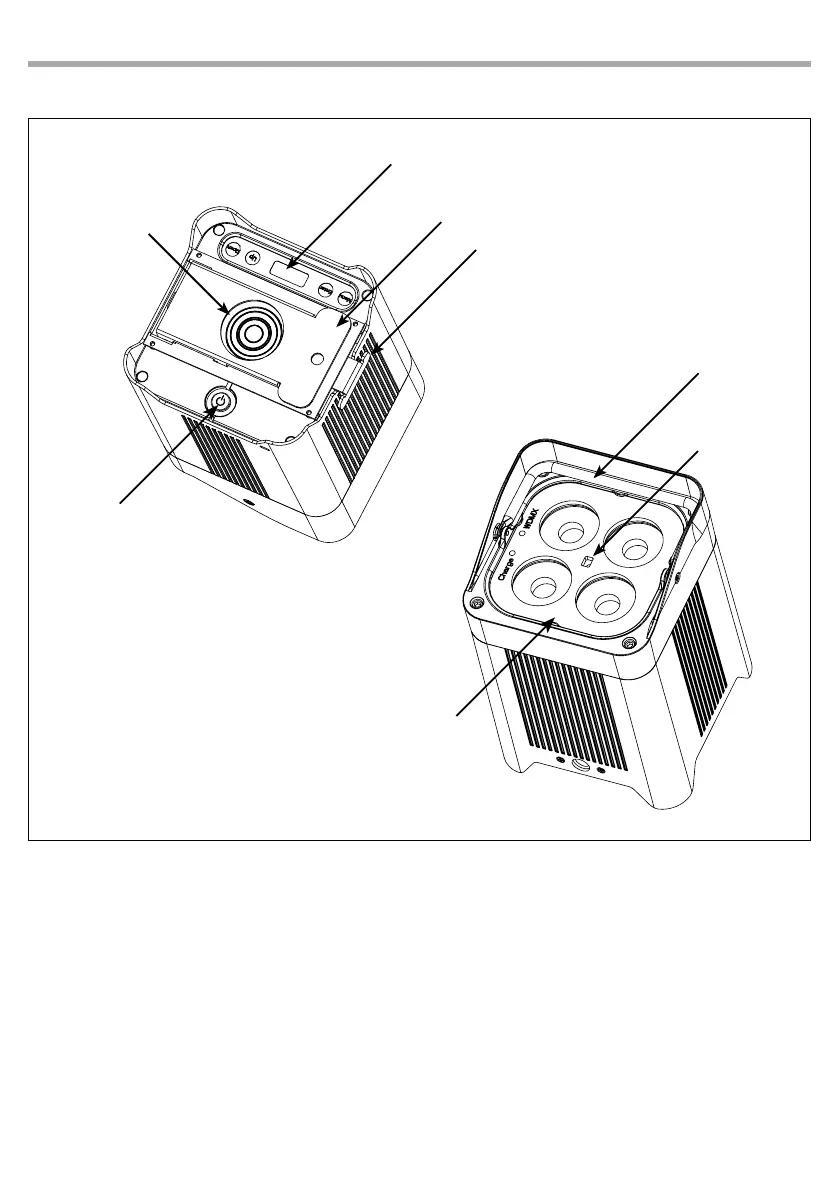

1.3 OPERATING ELEMENTS AND CONNECTIONS
1. CONTROL PANEL with display and 4 button
used to access the control panel functions
and manage them.
2. Adjustable foot support for tilt regulation (up
to 20°).
3. ON/OFF SWITCH.
4. CHARGING CONTACT
5. RELEASE LEVER to adjustable foot support
6. CARRYING HANDLE
7. IR SENSOR
8. Wireless DMX RECEIVER
Fig.3
4
5
1
2
3
6
7
8
