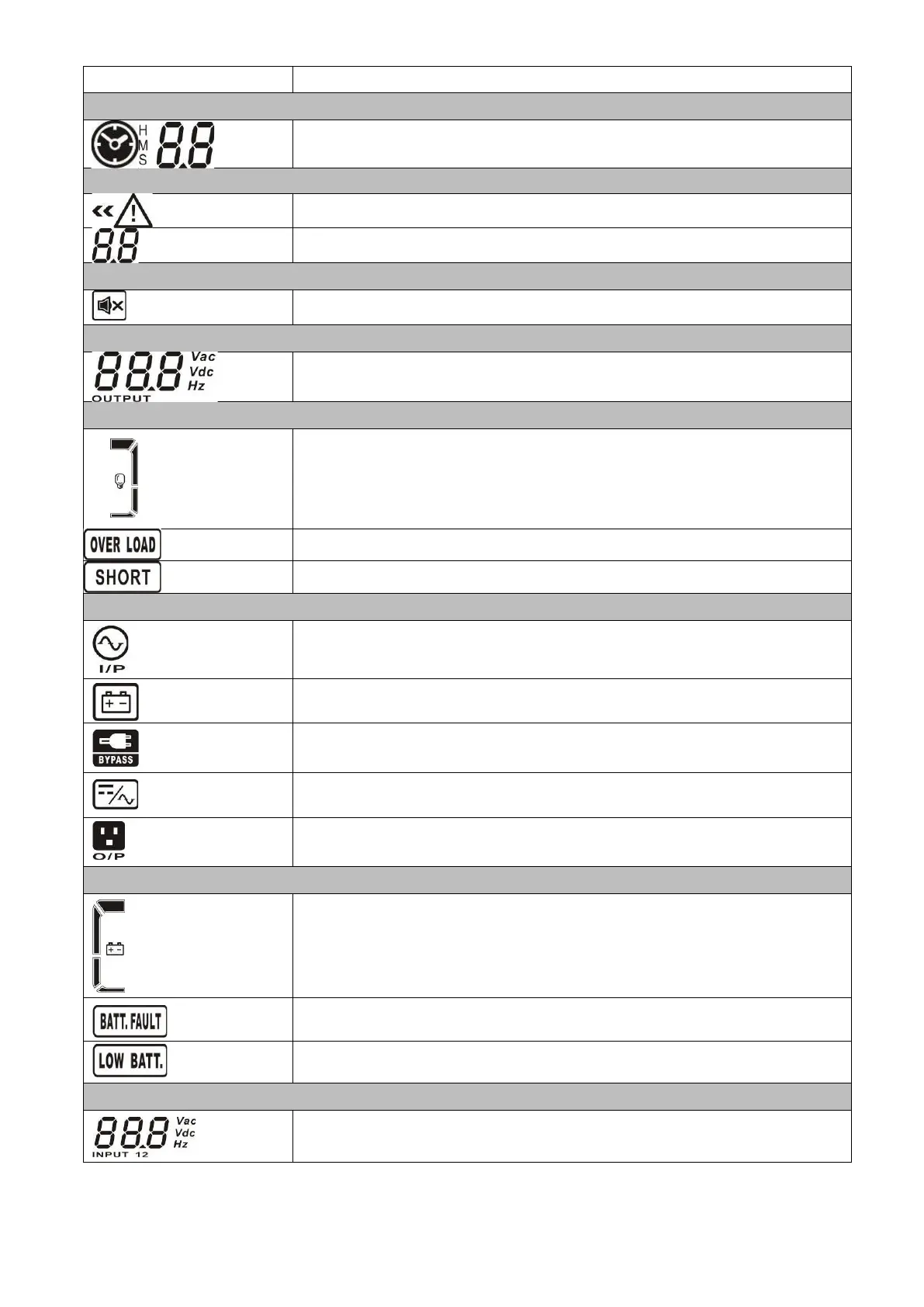

Backup time information
Battery discharge time in numbers
H: Hours, M: minutes, S: seconds
Error information
Indicates a warning that an error has occurred.
Indicating the error code, it is listed in detail in sections 3-9.
Operation of turning off the alarm
Indicates that the UPS alarm is disabled.
Battery voltage output & input information
Vac: Indicates output voltage, Vdc: battery voltage, Hz:
Frequency.
Load Information
Shows load levels of 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates overload.
Indicates the load or output of the short circuit UPS.
Operating mode information
Indicates the UPS is connected to the mains.
Indicates the battery is working.
Indicates the bypass is working.
Indicates the inverter circuit is working.
Indicates the output works.
Battery information
Shows battery capacity 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates battery is not connected or damaged
Indicates low battery level and low battery voltage.
Input &; Battery voltage information
Indicates the input voltage or frequency or voltage of the battery.
Vac: Input voltage, Vdc: battery voltage, Hz: input frequency.
