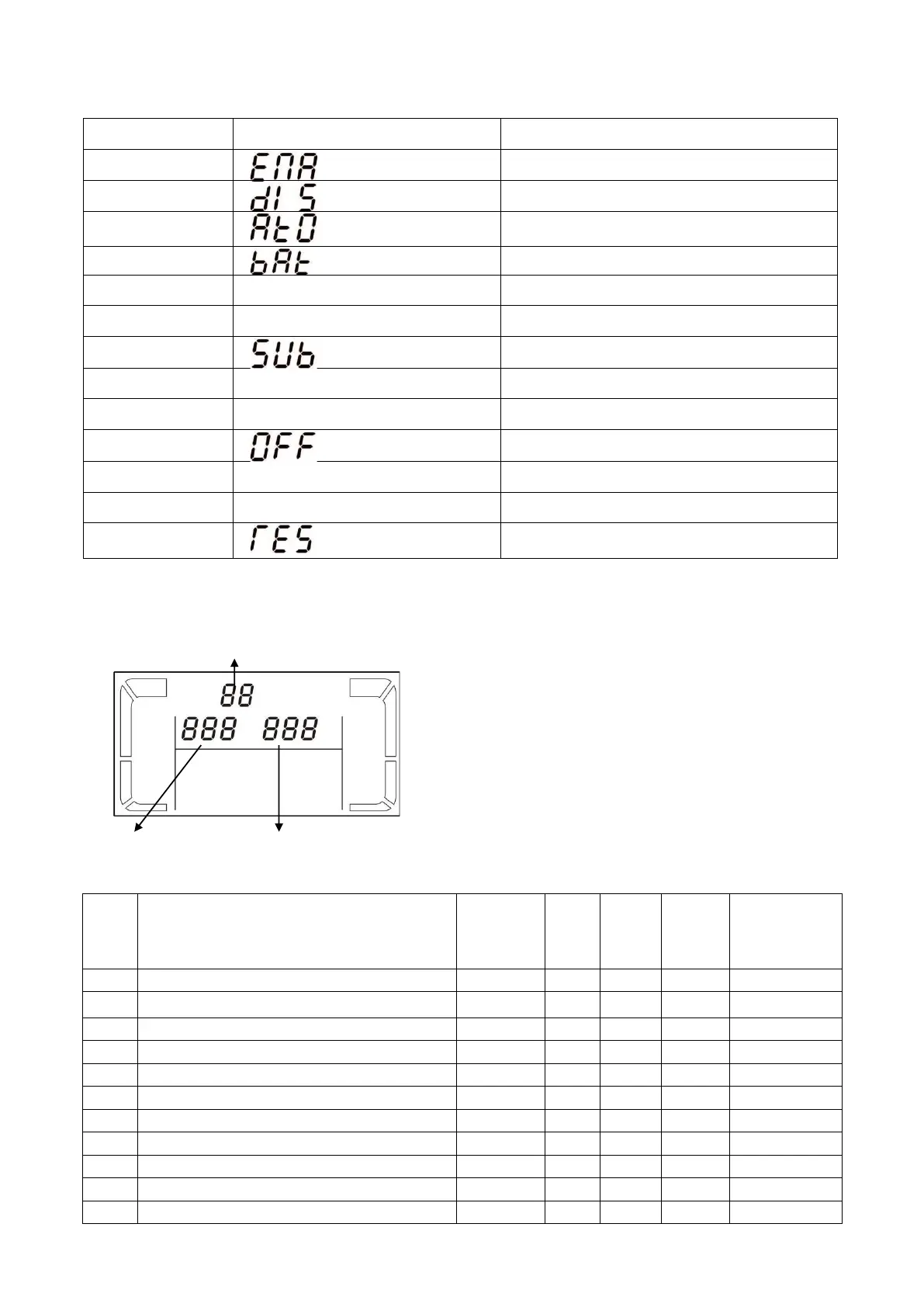

3-5. LCD display index
Abbreviation
Show content
Meaning
ENA
Enable
DIS
Disable
ATO
Auto
.BAT
Battery
NCF
Normal mode mode (not CVCF mode)
CF
Mode CVCF
SUB
Subtract
ADD
Add
ON
On
OFF
Off
FBD
Not allowed
OPN
Allowed
RES
In the message
3-6. LCD Settings
There are three parameters for setting up a UPS. Refer to the diagram.
Parameter 1
Parameter 2 Parameter 3
Parameter 1: This is for alternative programs. See the
table below
Parameter 2 and parameter 3 are setting options or
values for each program.
Note: Please select "Up" or "Down" button to change
programs or parameters.
List of available programs for parameter 1:
Code
Information
Bypass
Air
cond
itioni
ng
CVCF
Battery
Battery Test
01
Output voltage
Y
02
Output frequency
Y
03
Voltage range for cutting
Y
04
Frequency range for cutting
Y
05
Reserved
06
Reserved
07
Reserved
08
Shortcut mode settings
Y
Y
09
09 Maximum battery discharge timing
Y
Y
Y
Y
Y
10
Reserved
11
Reserved
