ProMinent delta General Operating Instructions

3.6 Special installation instructions
n Position the end of the discharge line higher than the fluid level in the
storage tank to avoid overstraining.
n Position the outlet of the discharge line higher than the fluid level in
the storage tank to avoid overstraining.
n Install an adjustable back pressure valve in the discharge line and
install a shut-off valve in the suction line, which has to be closed when
the pump is at a standstill (preferably a solenoid valve).
n If the system is primed from lines with fluctuating pressure, use a
hopper with a float valve to ensure a regular discharge flow.

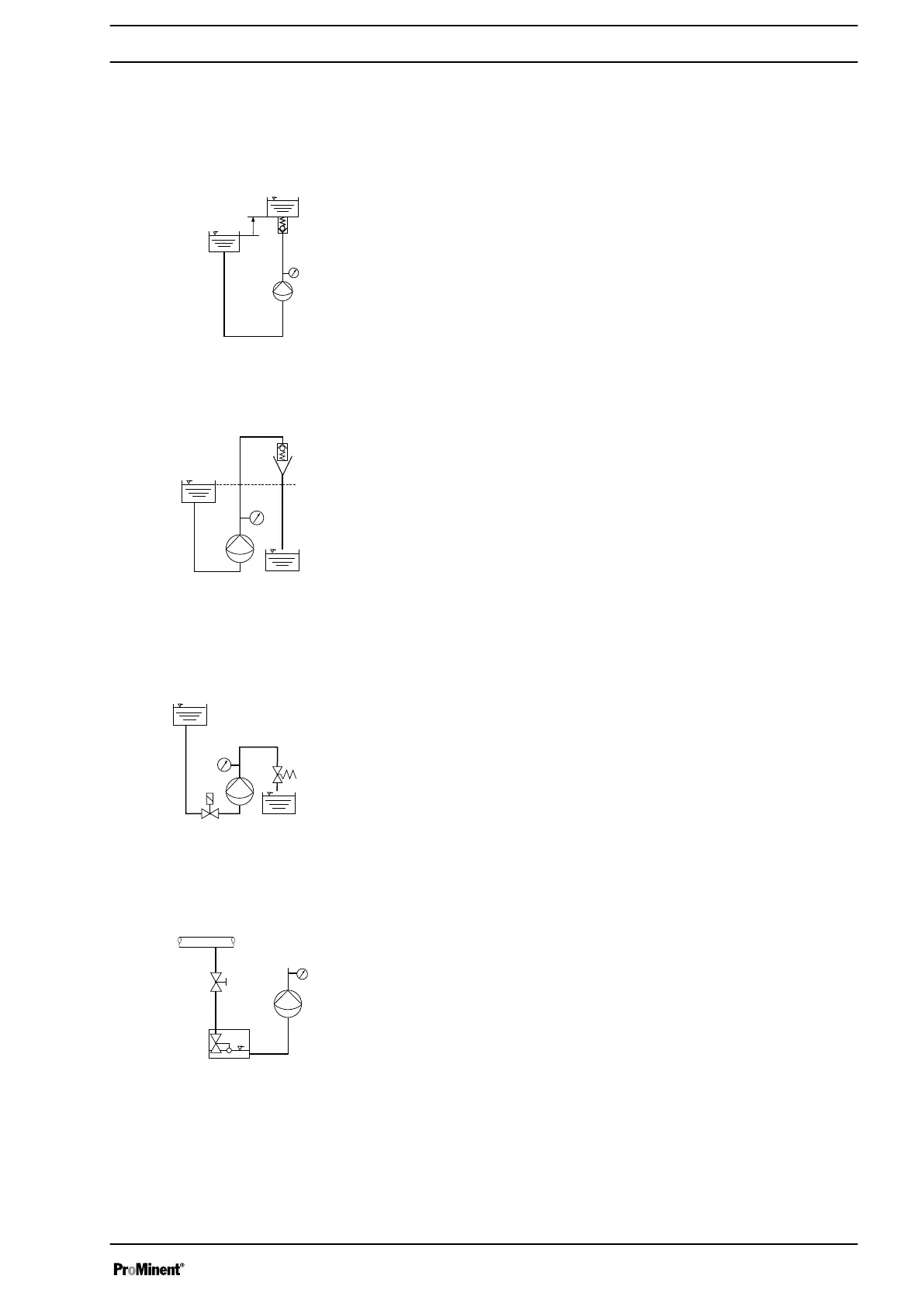

Fig. 19
With high suction-side pressure 1
P_MAZ_0013_SW
Fig. 20
With high suction-side pressure 2
P_MAZ_0014_SW
Fig. 21
With high suction-side pressure 3
P_MAZ_0015_SW
Fig. 22
With high suction-side pressure 1
P_MAZ_0016_SW
Fig. 23
Installation, hydraulic
15

ProMinent delta Specifications

General

Stroke rate	max. 180 strokes/min
Type	Diaphragm metering pump
Materials	PVDF, PTFE, stainless steel
Protection class	IP 65
Diaphragm material	PTFE
Drive	Solenoid
Power supply	230 V, 50/60 Hz
