1.2 Construction and function of the sensor
The inductive transducer of the two types of sensor ICT 5 and ICT 5-IMA consists of a hermetically
sealed polypropylene (PP) body. A transmission coil and a receiver coil are incorporated in the
transducer. A flow opening in the sensor (sensor eye) permits the measuring medium to flow
through. There is galvanic isolation between the sample medium and the signal output. A stand-
alone temperature sensor (Pt1000) with a short response time records the process temperature. The
temperature sensor is enclosed within a protective stainless steel sleeve.

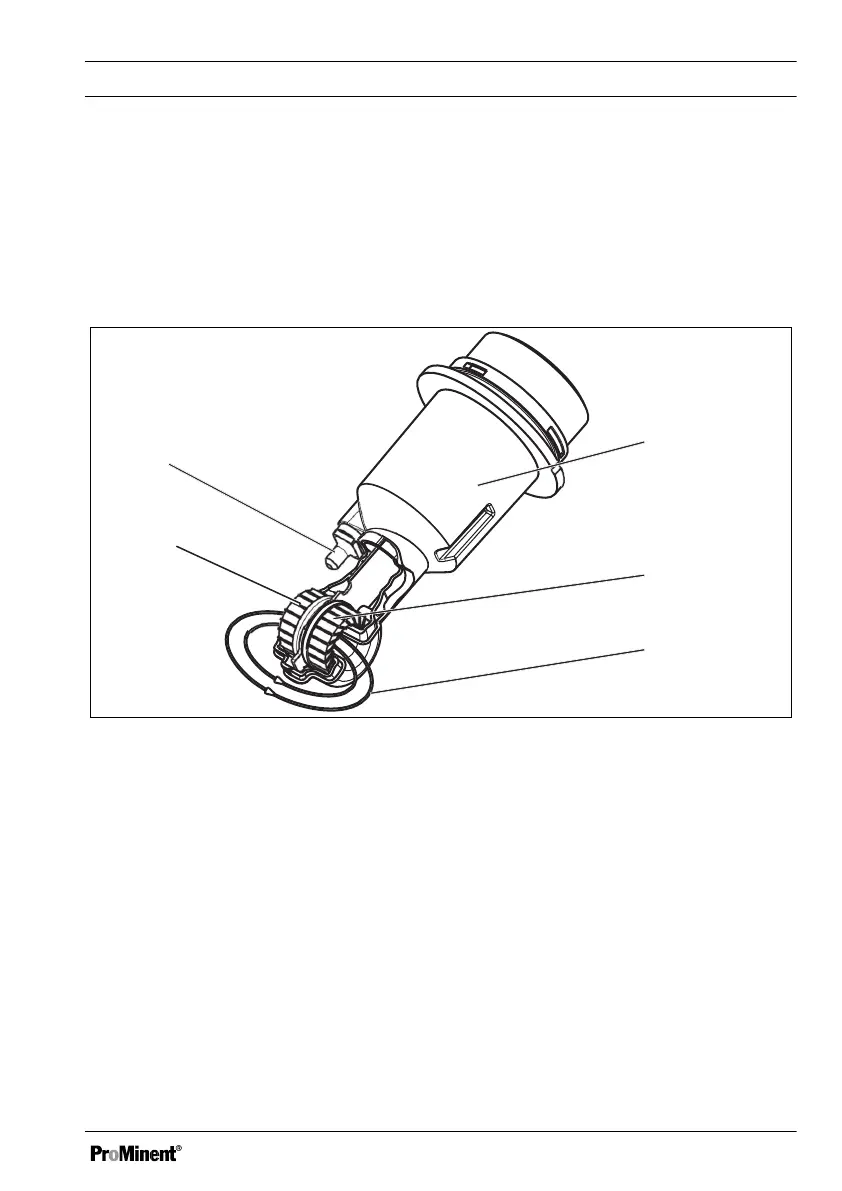

Fig. 1: Components
1 PP sensor body
2 Transmission coil
3 Sensor eye through which the sample
medium flows
4 Receiver coil
5 Temperature sensor, stand-alone, enclosed
within a stainless steel sleeve
Introduction
9
