61_05_104_01_26_03
P_SI_0083_SW
1
5
4
5
6
2
3

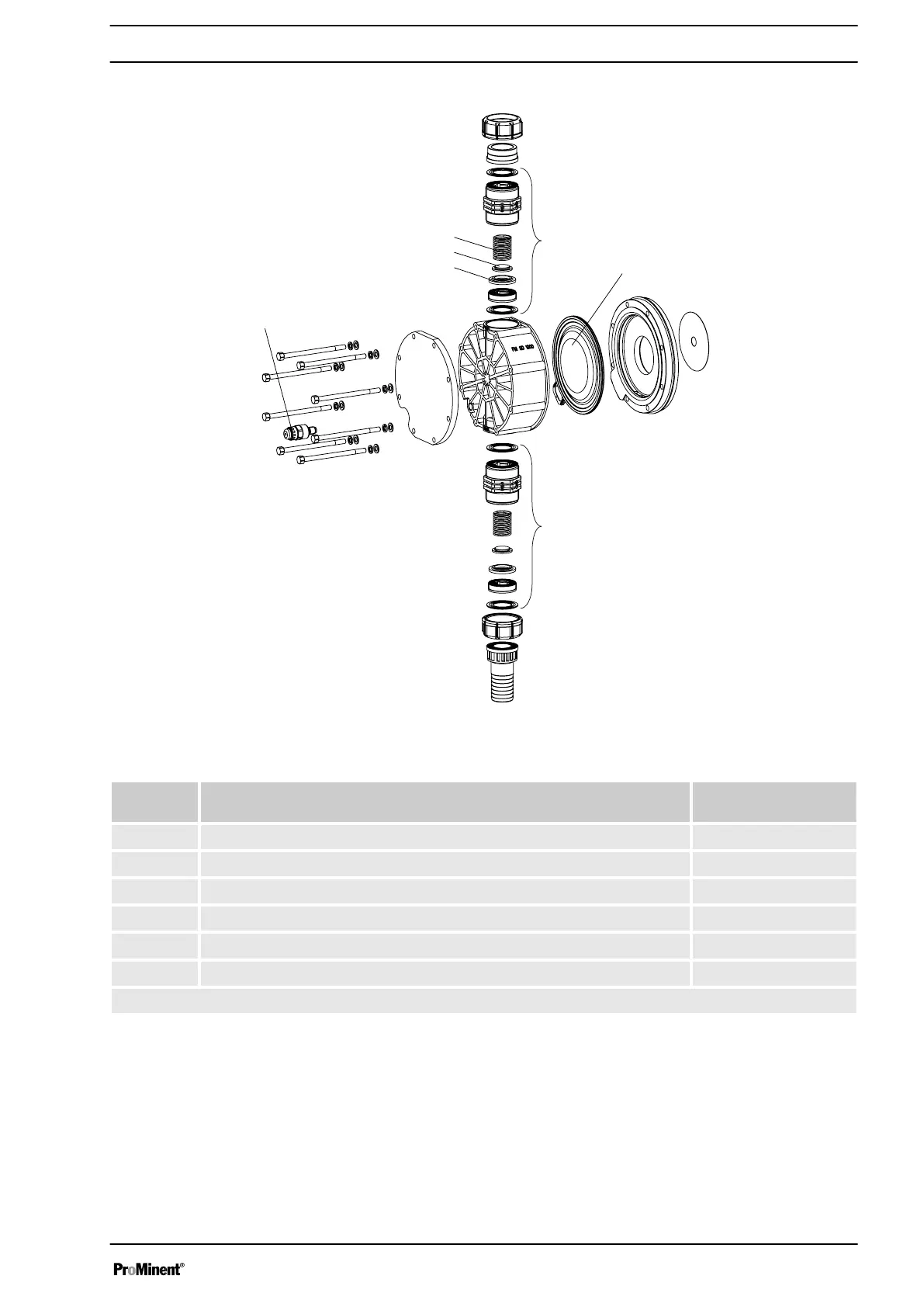

Fig. 27: Liquid end Sigma/ 3 1000 PVT
Item Description Type 070410, 070580,
040830, 041030
1 Spring *
2 Ball *
3 Ball seat *
4 Diaphragm rupture sensor, visual 1033323
5 Valve 1002806*
6 Multi-layer diaphragm 1029603*
* The items listed are included in the spare parts kit. Technical changes reserved.
Liquid end Sigma/ 3 1000 PVT, PCT, PPT
Exploded drawings Sigma/ 3
59
