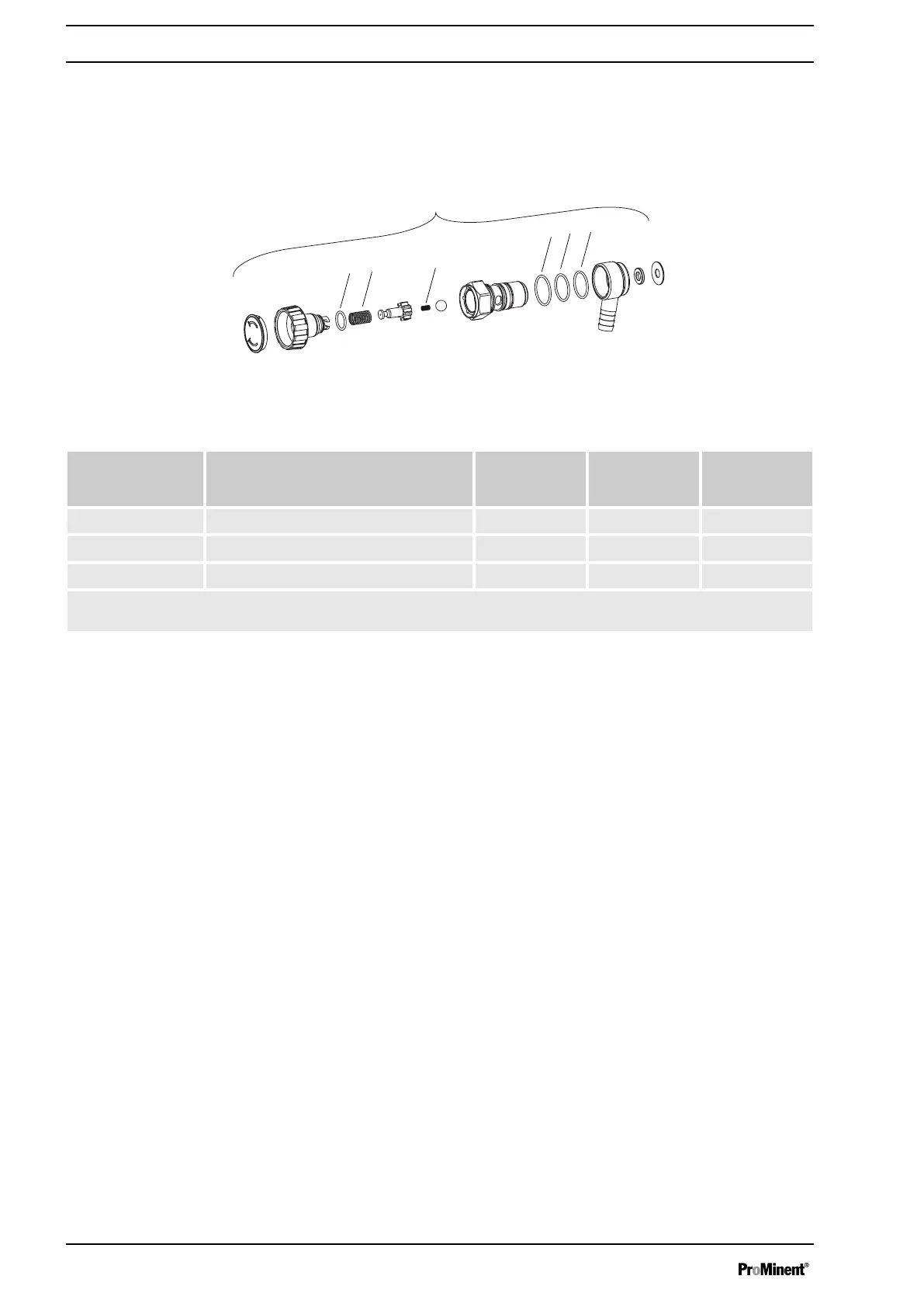

Fig. 28: Sigma/ 3 PVT relief valve-A
Item Description Type 120145,
120190,
120270, 120330
Type 070410,
070580
Type 040830,
041030
10 Relief valve, compl. 10 bar PVA 1005626
10 Relief valve, compl. 7 bar PVA 1004801
10 Relief valve, compl. 4 bar PVA 1004778
* The items listed are included in the spare parts kit. Springs made from Hastelloy C, O-rings from FPM-A and EPDM.
Technical changes reserved.
Sigma/ 3 PVT relief valve-A
Exploded drawings Sigma/ 3
