61_05_103_00_67_03
P_SI_0084_SW
1
5
4
5
6
2
3

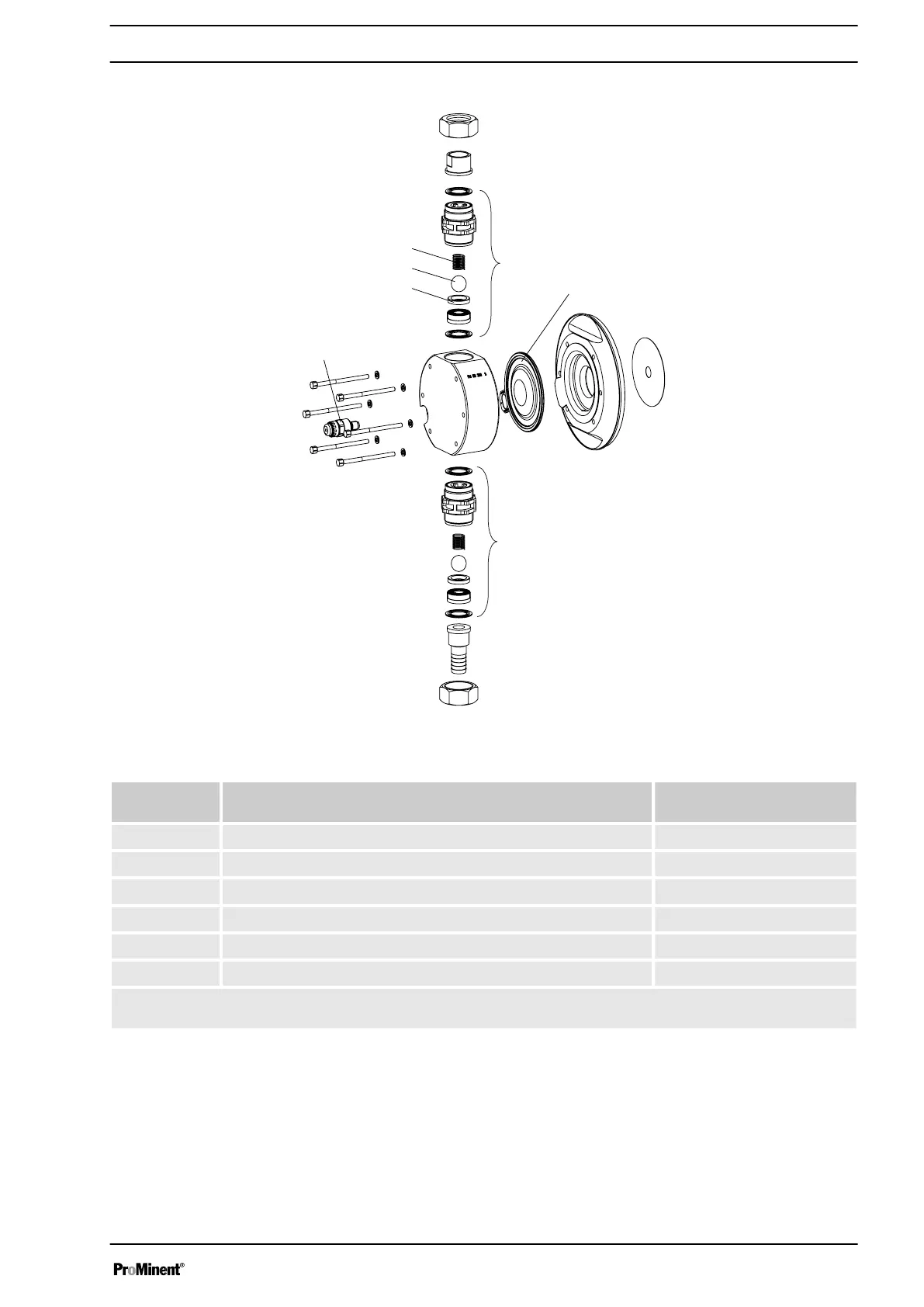

Fig. 29: Liquid end Sigma/ 3 330 SST
Item Description Type 120145, 120190,
120270, 120330
1 Spring **
2 Ball *
3 Ball seat *
4 Diaphragm rupture sensor, visual 1033323
5 Valve 803708
6 Multi-layer diaphragm 1029604*
* The items listed are included in the spare parts kit. ** Special accessories (not included in the spare parts kit). Tech‐
nical changes reserved.
Liquid end Sigma/ 3 330 SST
Exploded drawings Sigma/ 3
61
