61_05_104_01_32_03
P_SI_0085_SW
1
5
4
5
6
2
3

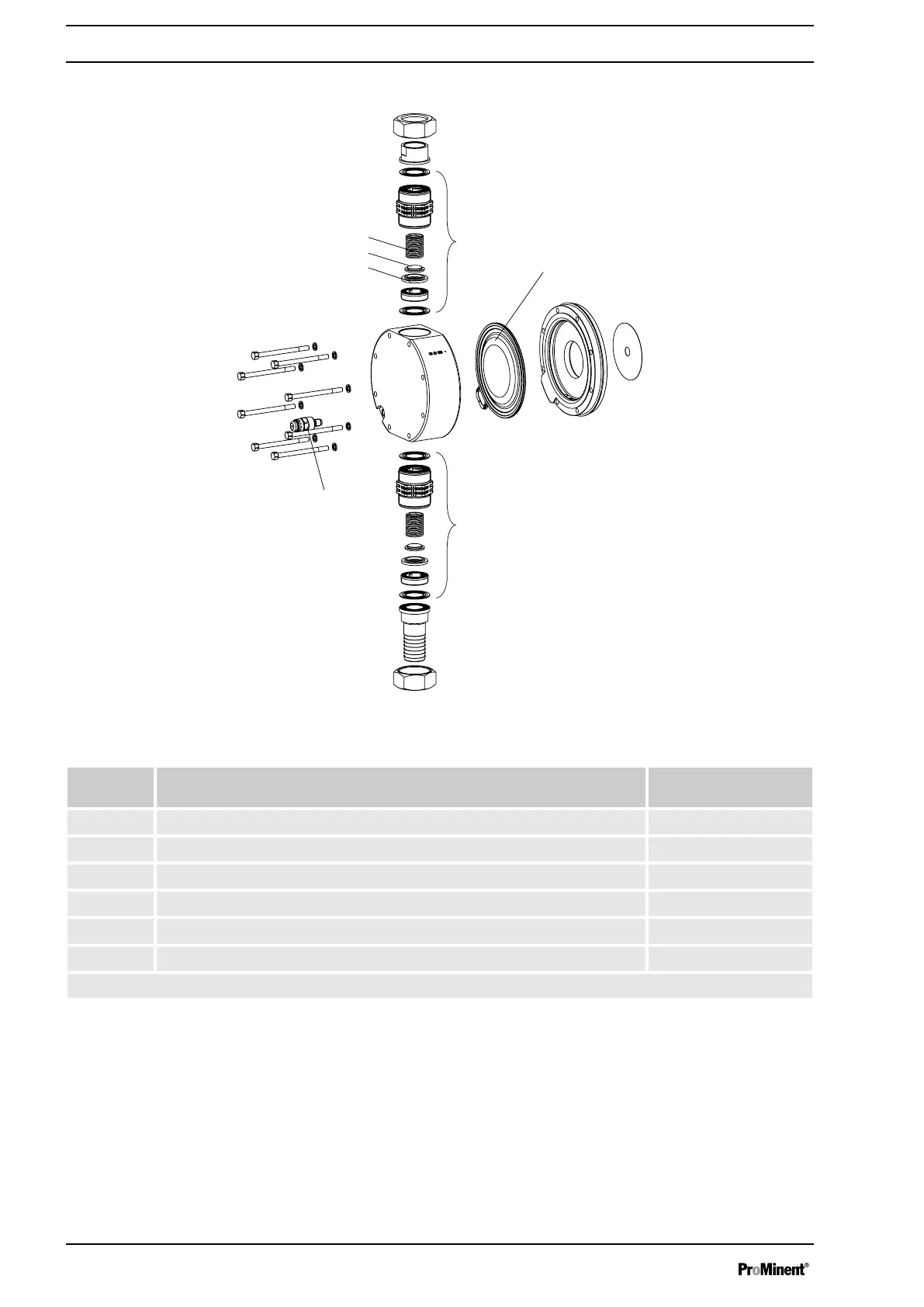

Fig. 30: Liquid end Sigma/ 3 1000 SST
Item Description Type 070410, 070580,
040830, 041030
1 Spring *
2 Ball *
3 Ball seat *
4 Diaphragm rupture sensor, visual 1033323
5 Valve 1002811
6 Multi-layer diaphragm 1029603*
* The items listed are included in the spare parts kit. Technical changes reserved.
Liquid end Sigma/ 3 1000 SST
Exploded drawings Sigma/ 3
62
