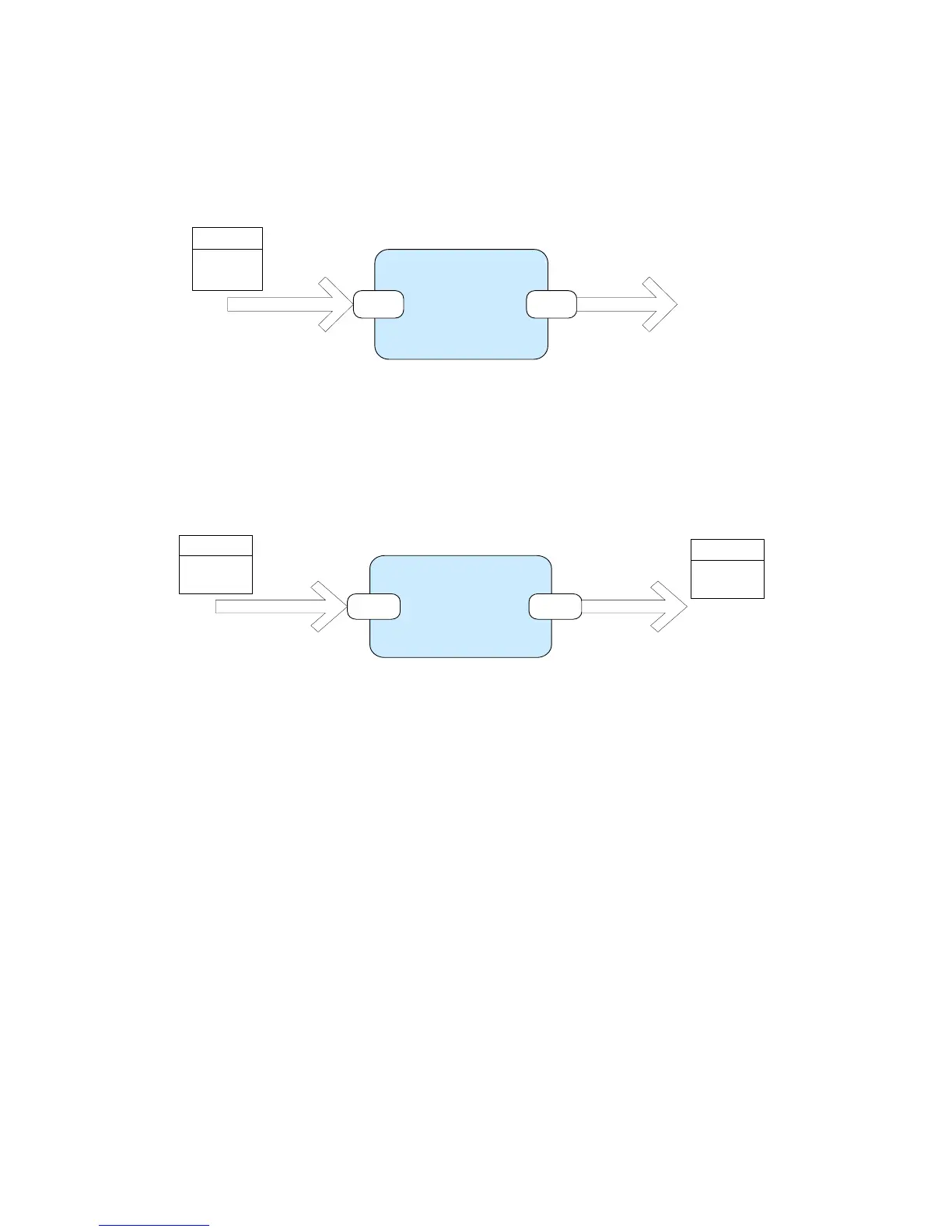

Case 5
Ingress Port = WAN1 (Tag)
Egress Port = LAN1 (Un-tag)
Incoming Packet with VID = 30
6200 VPN Router LAN1
WAN1
VID = 30
PDU
The packet is dropped because the packet’s VID (30) is not matched with VID (10).
Case 6
Ingress Port = WAN1 (Tag)
Egress Port = LAN1 (Un-tag)
Incoming Packet with VID = 10
6200 VPN Router
LAN1
WAN1
VID = 10
PDU
PDU
The packet’s VID will be removed and the packet will be forward.
