Proscend 6200 SERIES User Manual

9
2
2
.
.
3
3
W
W
A
A
N
N
P
P
o
o
r
r
t
t
The VPN Router have one port for WAN port connection, this is a G.SHDSL .Bis interface.

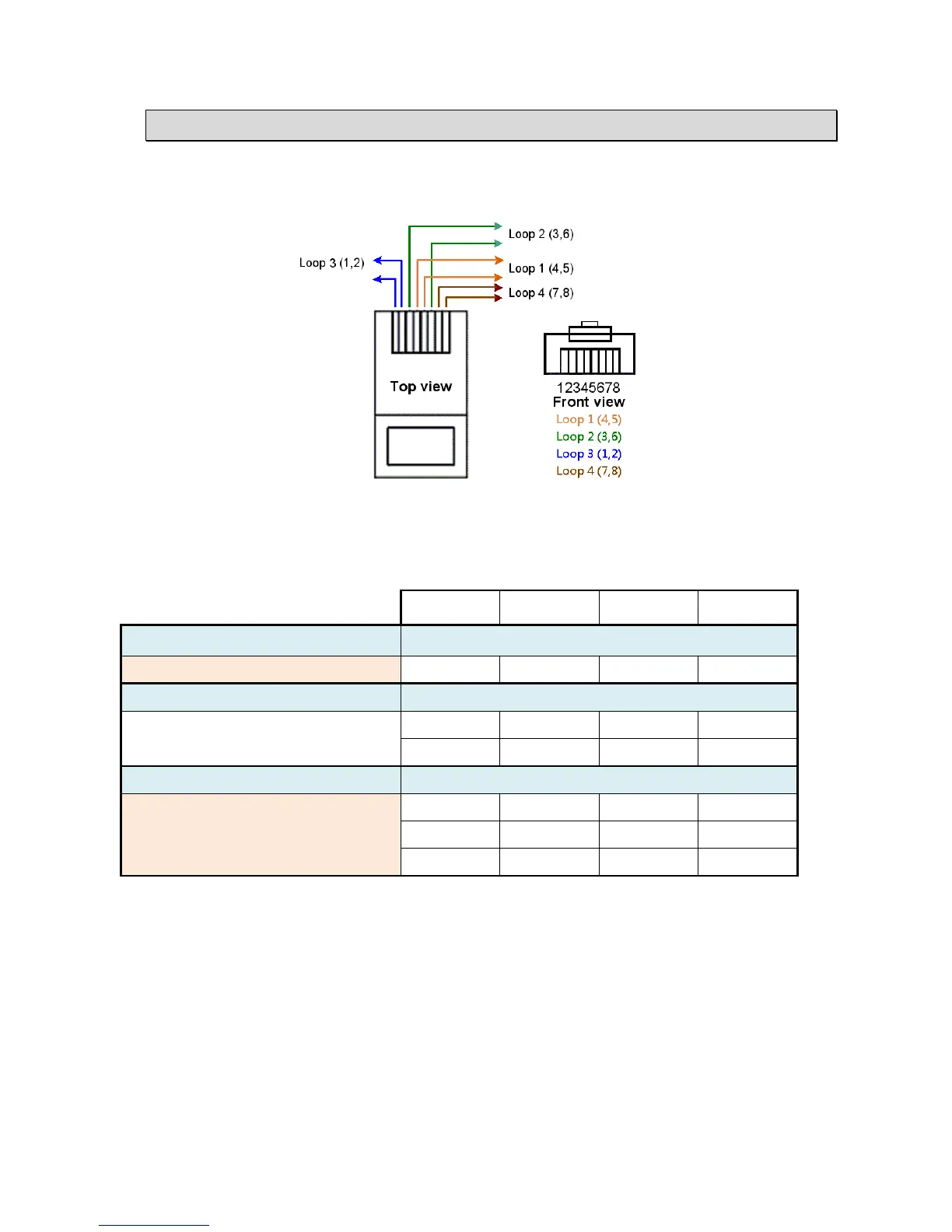

The pin assignments for SHDSL line cable are:
For 2-wire (one pair) model , Loop1 has been used.
For 4-wire (two pair) model, Loop1 and 2 have been used.
For 8-wire (four pair)model, Loop1, 2, 3 and 4 have been used.
Channel A Channel B Channel C Channel D
2-wire model (6200-2W , 6200-2W/U)
2-wire mode Loop1 (4,5)
4-wire model (6200-4W , 6200-4W/U)
2-wire mode
4-wire mode
Loop1 (4,5)
Loop1 (4,5) Loop2 (3,6)
8-wire model (6200-8W , 6200-8W/U)
2-wire mode
4-wire mode
8-wire mode
Loop1 (4,5)
Loop1 (4,5) Loop2 (3,6)
Loop1 (4,5) Loop3 (1,2) Loop4 (7,8) Loop2 (3,6)
For test on point to point connection purpose, you can use the Straight-Through Ethernet Cable for
SHDSL.bis link as the following.
