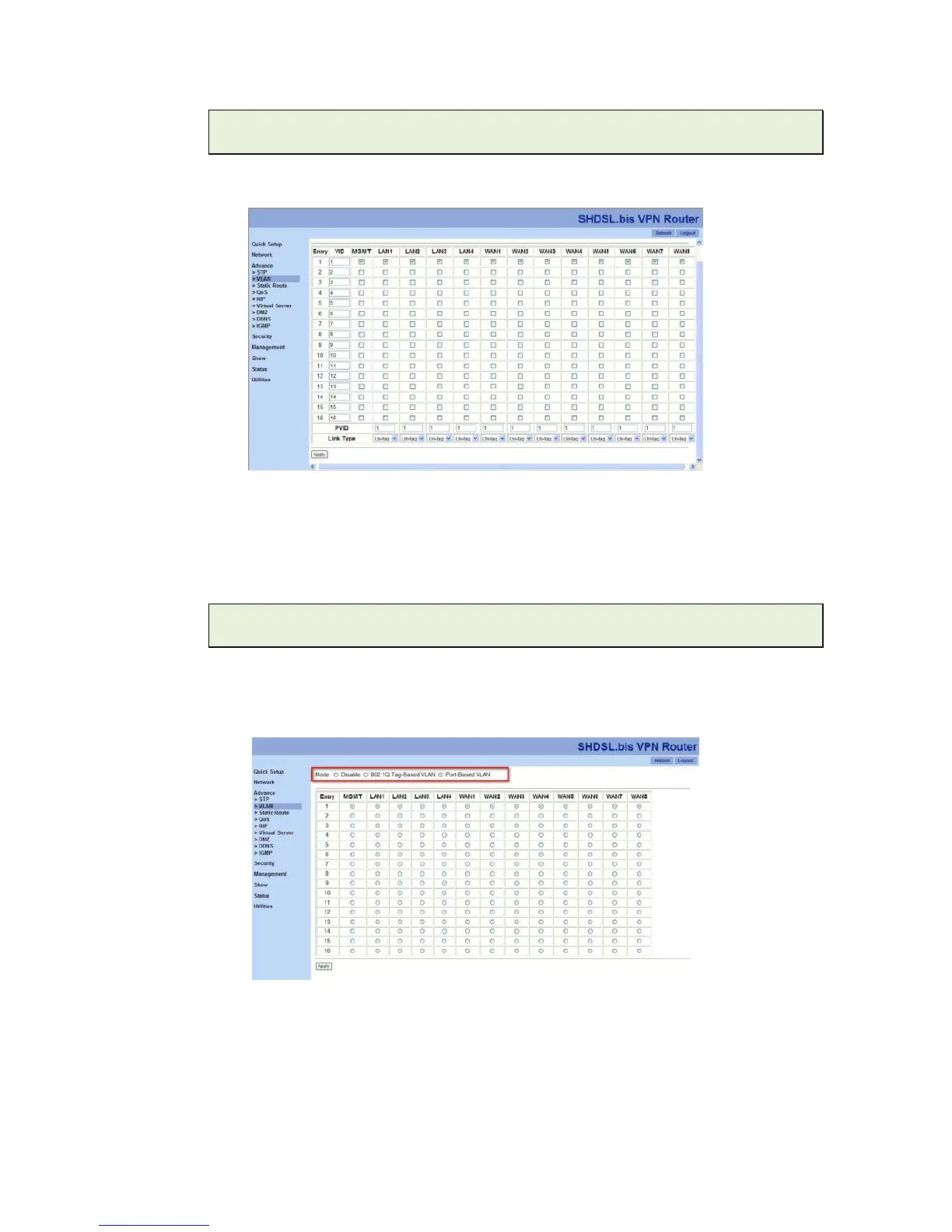

Click on “802.1Q Tag-Based VLAN” to show more configuration as the following screen shot.
Assign each group’s VID and which port should be in a group. Then, assign PVID to the port you need and
its link type, un-tag or tag. Then, click on “Apply” to set your VPN router with 802.1Q Tag-Based VLAN
policy.
3
3
.
.
6
6
.
.
2
2
.
.
2
2
P
P
o
o
r
r
t
t
-
-
B
B
a
a
s
s
e
e
d
d
V
V
L
L
A
A
N
N
Click on “Port-Based VLAN” in the mode section and you will see the following configuration section as the
screen shot below.
Assign which port should be in one group together by click on the corresponding radio buttons in each entry.
Click on “Apply” to save this changes.
