Proserve Compact 25 - Page 19

19
Appendix 2 -

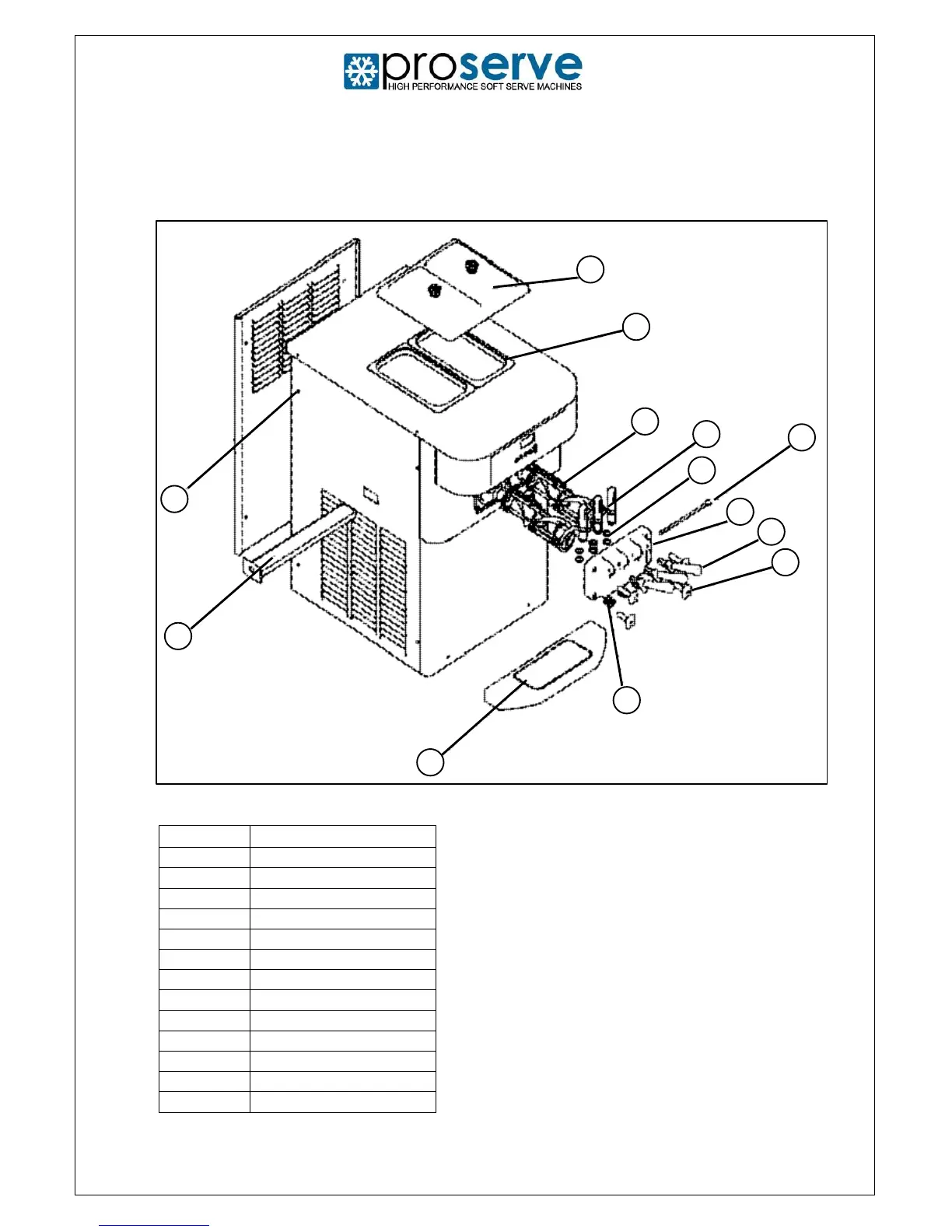

Parts Diagram for Compact 25
Number
Part Name
1
Hopper Cover
2
Hopper
3
Beater
4
Piston
5
Piston O-Ring
6
Fixed Pin
7
Dispensing Door
8
Handle
9
Locking Nuts x 4
10
Shaping Caps
11
Front Drip Tray
12
Side Drip Tray
13
Back Cover
1
2
3
4
6
5
7
8
9
10
11
12
13
