Proserve Compact 25 - Parts Diagrams

18

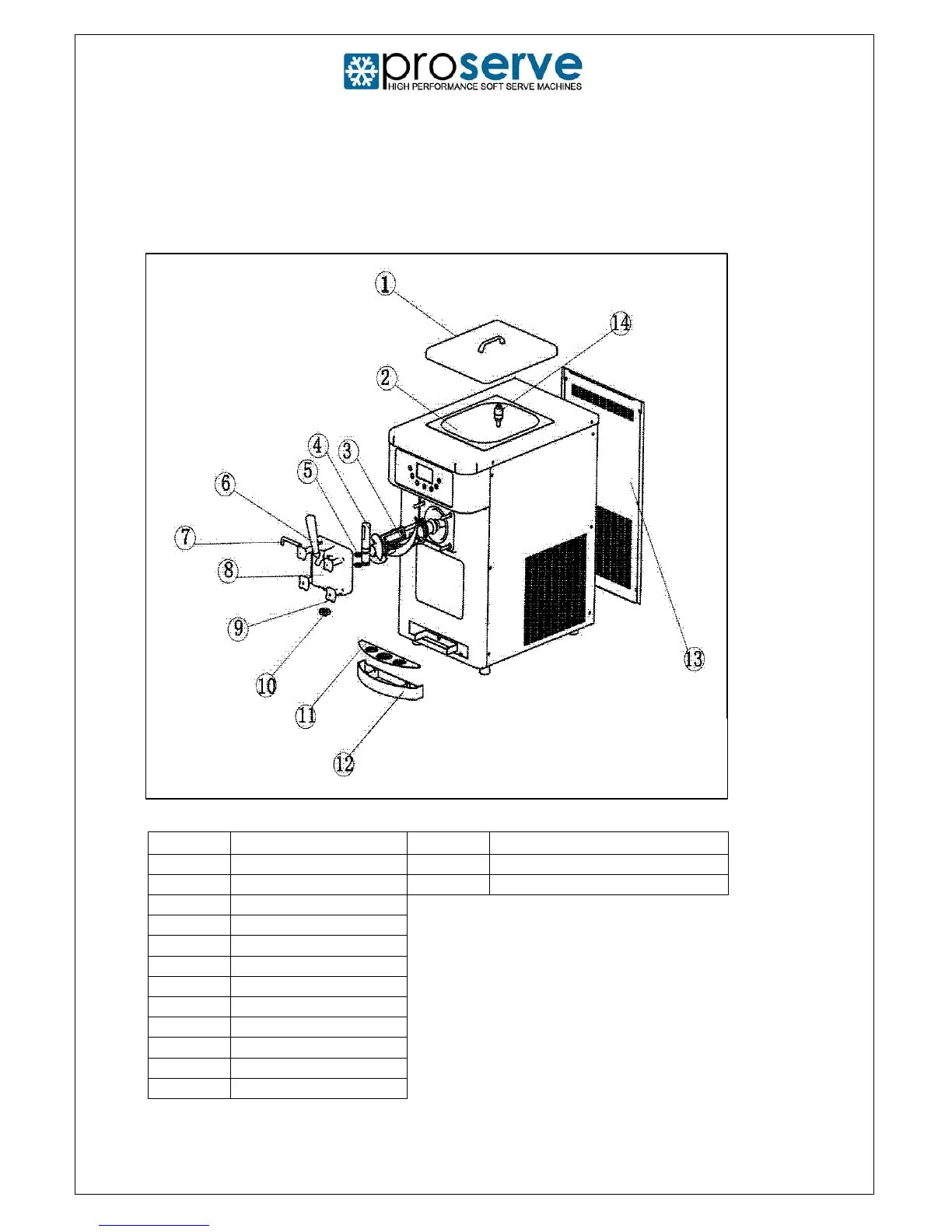

Appendix 1 - Parts Diagram for Compact 11
Number
Part Name
Number
Part Name
1
Hopper Cover
13
Back Cover
2
Hopper
14
Low-Level Indicator
3
Beater
4
Piston
5
Piston O-Ring
6
Handle
7
Fixed Pin
8
Dispensing Door
9
Locking Nuts x 4
10
Shaping Cap
11
Drip Tray Cover
12
Drip Tray
