3 In the Explorer window, navigate to the files you need, and then copy them to
a location on your hard drive.
Download the manuals and sample program from the ProSoft Technology web site
You can always download the latest version of the sample ladder logic and user
manuals for the MVI56-MCM module from the ProSoft Technology web site, at
http://www.prosoft-technology.com/support/downloads (http://www.prosoft-
technology.com/support/downloads)
From that link, navigate to the download page for your module and choose the
sample program to download for your version of RSLogix 5000 and your
processor.
To determine the firmware version of your processor
Important: The RSLinx service must be installed and running on your computer in order for
RSLogix to communicate with the processor. Refer to your RSLinx and RSLogix documentation for
help configuring and troubleshooting these applications.
1 Connect an RS-232 serial cable from the COM (serial) port on your PC to the
communication port on the front of the processor.
2 Start RSLogix 5000 and close any existing project that may be loaded.
3 Open the Communications menu and choose Go Online. RSLogix will
establish communication with the processor. This may take a few moments.

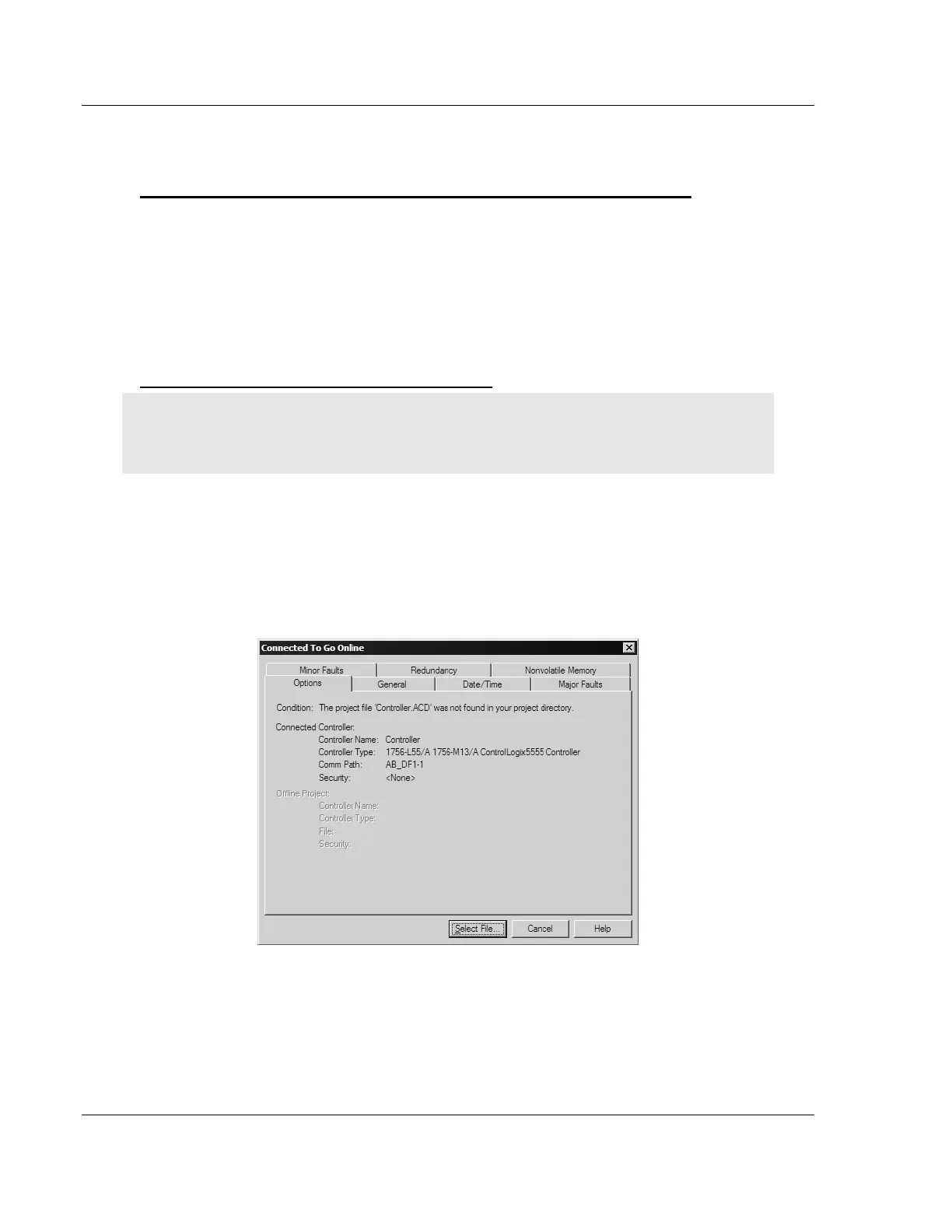

4 When RSLogix has established communication with the processor, the
Connected To Go Online dialog box will open.
