Using the RSLogix 5000 v16 Add On Instruction MVI56-MCM ♦ ControlLogix Platform
Modbus Communication Module
ProSoft Technology, Inc. Page 19 of 159
July 24, 2008

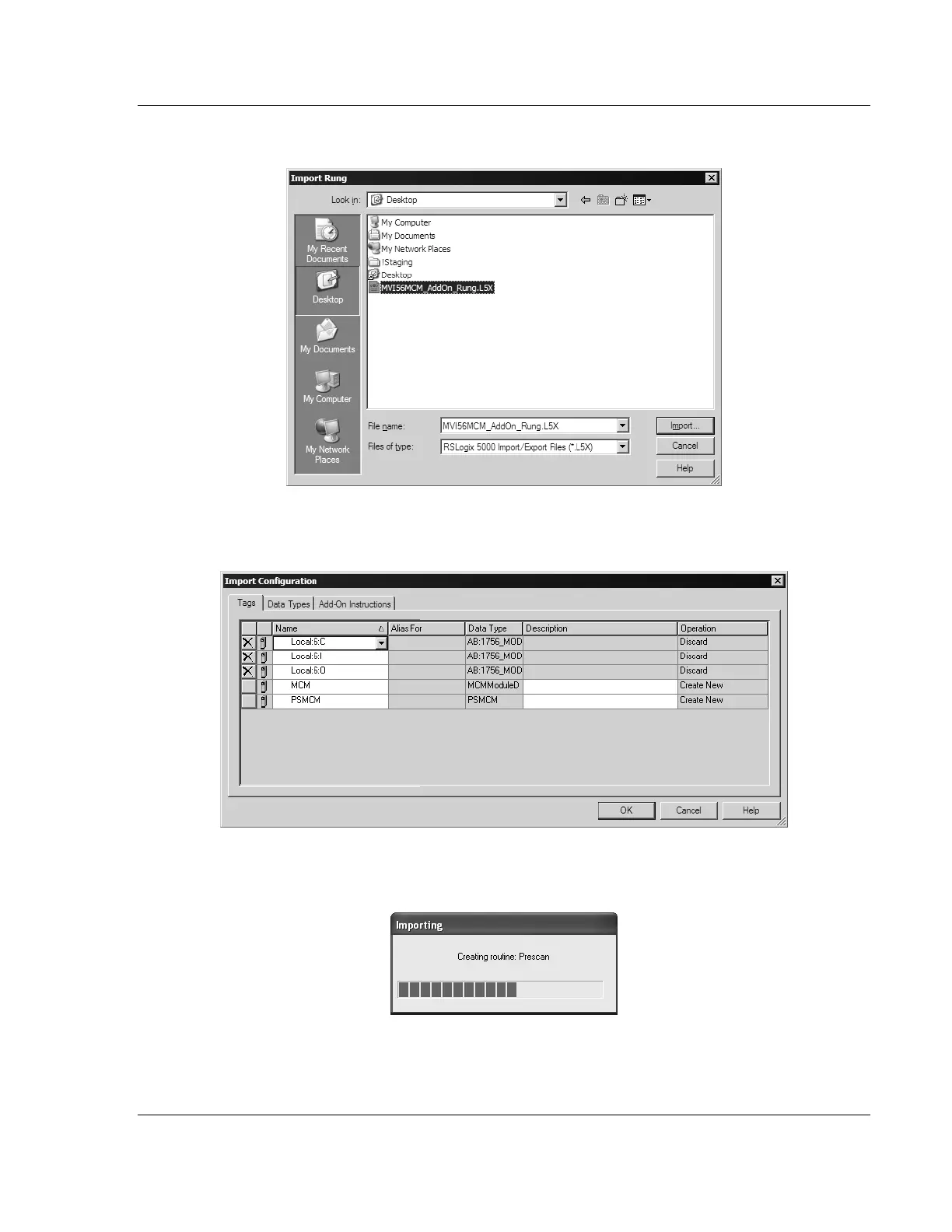

6 Select the MVI56MCM_AddOnRung.L5X file
7 The following window will be displayed showing the controller tags to be
created during the import procedure:
8 Click OK to confirm the import. RSLogix will indicate that the import is under
progress:
