MVI56-MCM ♦ ControlLogix Platform Using the RSLogix 5000 v16 Add On Instruction
Modbus Communication Module
Page 22 of 159 ProSoft Technology, Inc.
July 24, 2008
3.3.1 Configuring RSLinx
If RSLogix is unable to establish communication with the processor, follow these steps:

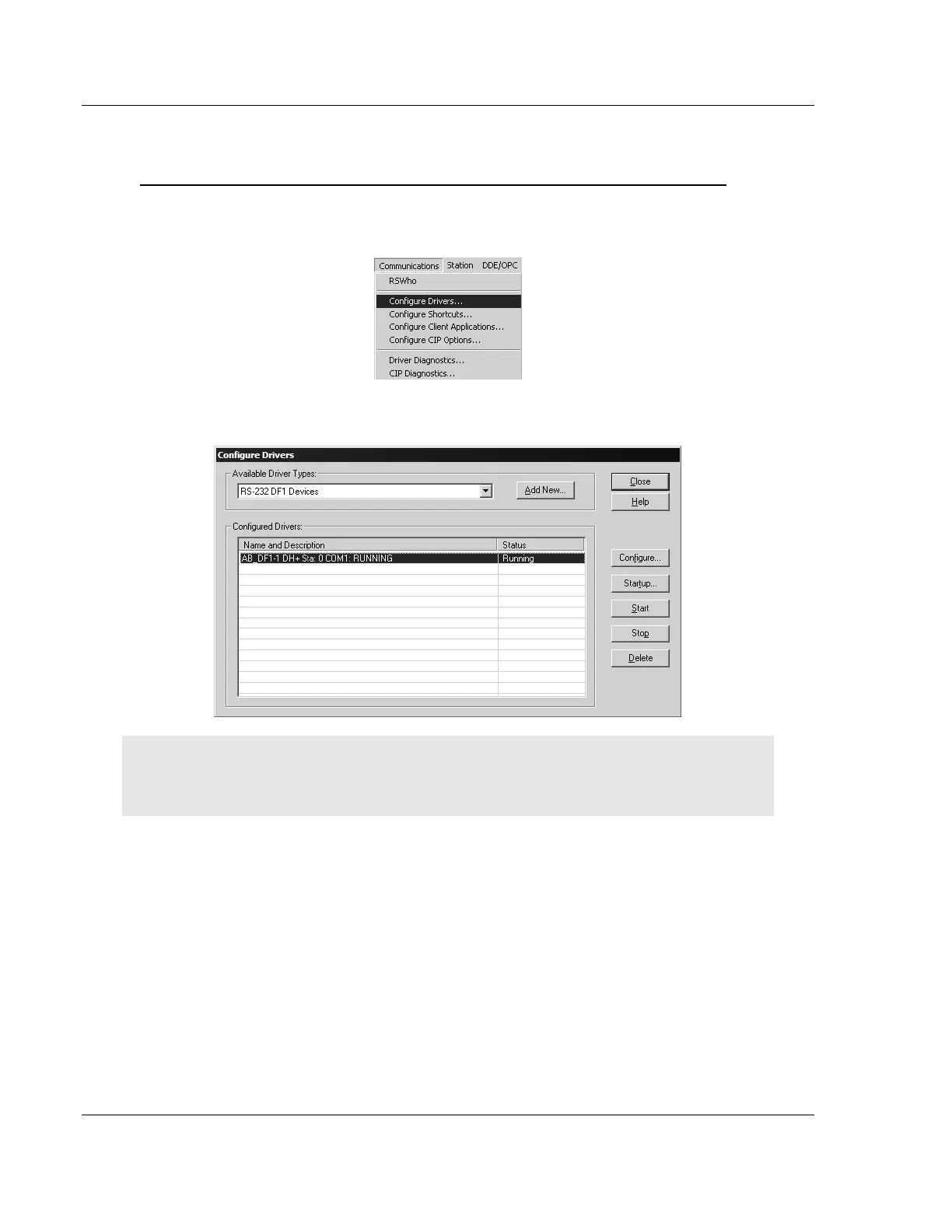

1 Open RSLinx.
2 Open the Communications menu, and choose Configure Drivers.
This action opens the Configure Drivers dialog box.
Note: If the list of configured drivers is blank, you must first choose and configure a driver from the
Available Driver Types list. The recommended driver type to choose for serial communication with
the processor is "RS-232 DF1 Devices".
