Manual & Installer Guide 6
Cool Setpoint
Warm
Button
n
Cooler
Button
Heat Setpoint

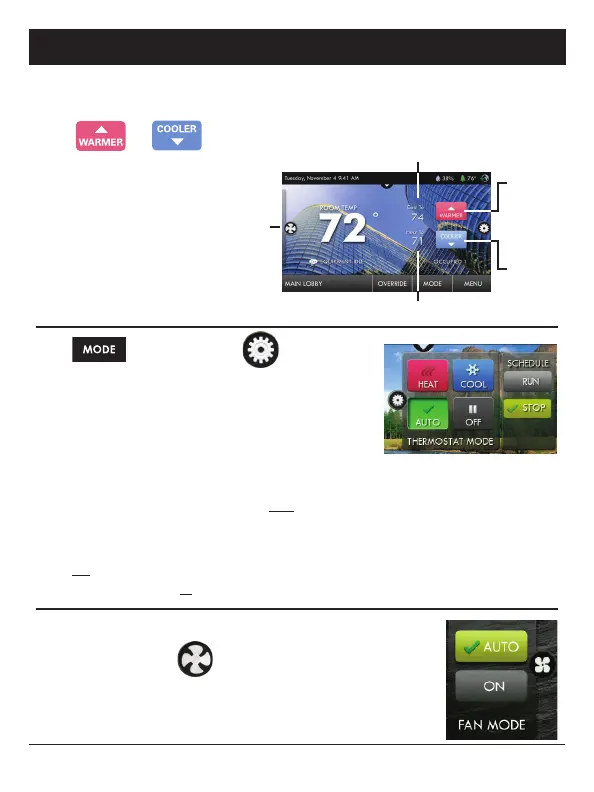

Selecting Your Desired Temperature and Mode
The Heat or Cool Setpoint is
the temperature the room
has to reach before heating
or cooling will turn on.
(Without regard
to deadband)
Press or to adjust temperature
Press
or the MODE Icon
HEAT will allow only operation of the heating system.
COOL will allow only operation of the cooling system.
AUTO will allow operation of the heating and cooling.
OFF - heating and cooling systems are turned off.
AUTO-CHANGEOVER MODE - Pressing the WARMER or
COOLER buttons in Auto mode will adjust both the heat and cool setpoints simultaneously.
To adjust heat and cool setpoints individually, choose HEAT mode to adjust the heat setpoint
and COOL mode to adjust the cool setpoint, then return to AUTO mode.
HEAT OR COOL MODE - Pressing the WARMER or COOLER buttons in Heat or Cool mode
will adjust only the heat or cool setpoints.
Using the Fan Button
Press the FAN Icon
FAN ON fan runs constantly even in OFF Mode.
FAN AUTO fan only runs with a heating or cooling demand.
Note: FAN button is disabled during Program Run Mode.
4 Quick Start - Temperature, Modes & Fan
