5.3 Disconnection of the Fire Brigade Panel Controller
If the 3500 is equipped with the optional fire brigade controller ensure that the ribbon cable and earth
cable are disconnected from the rear of the controller as shown in figure 5.1.

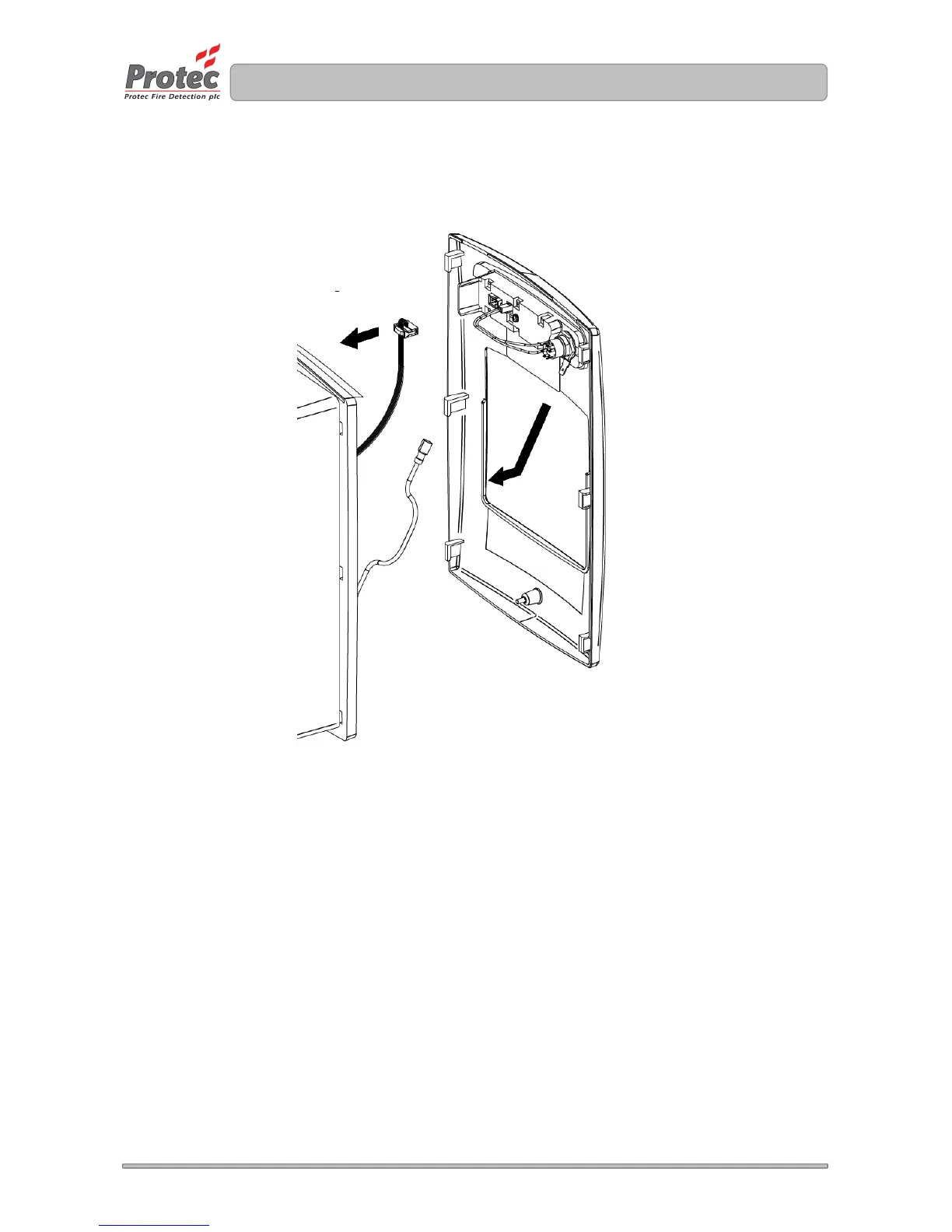

Figure 5.1 Removing the 3500 door
