Protemp PT-53-240 - Assembly Instructions

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A
POWER SOURCE
© 2018 Pinnacle Climate Technologies, Inc. Turbo Electric Fan Heater User’s Manual
®
1 / 2
3
ASSEMBLY INSTRUCTIONS
4
5 6 / 7
4
Tools Needed:
– Phillips Head screw driver.
– 7 mm open end wrench.

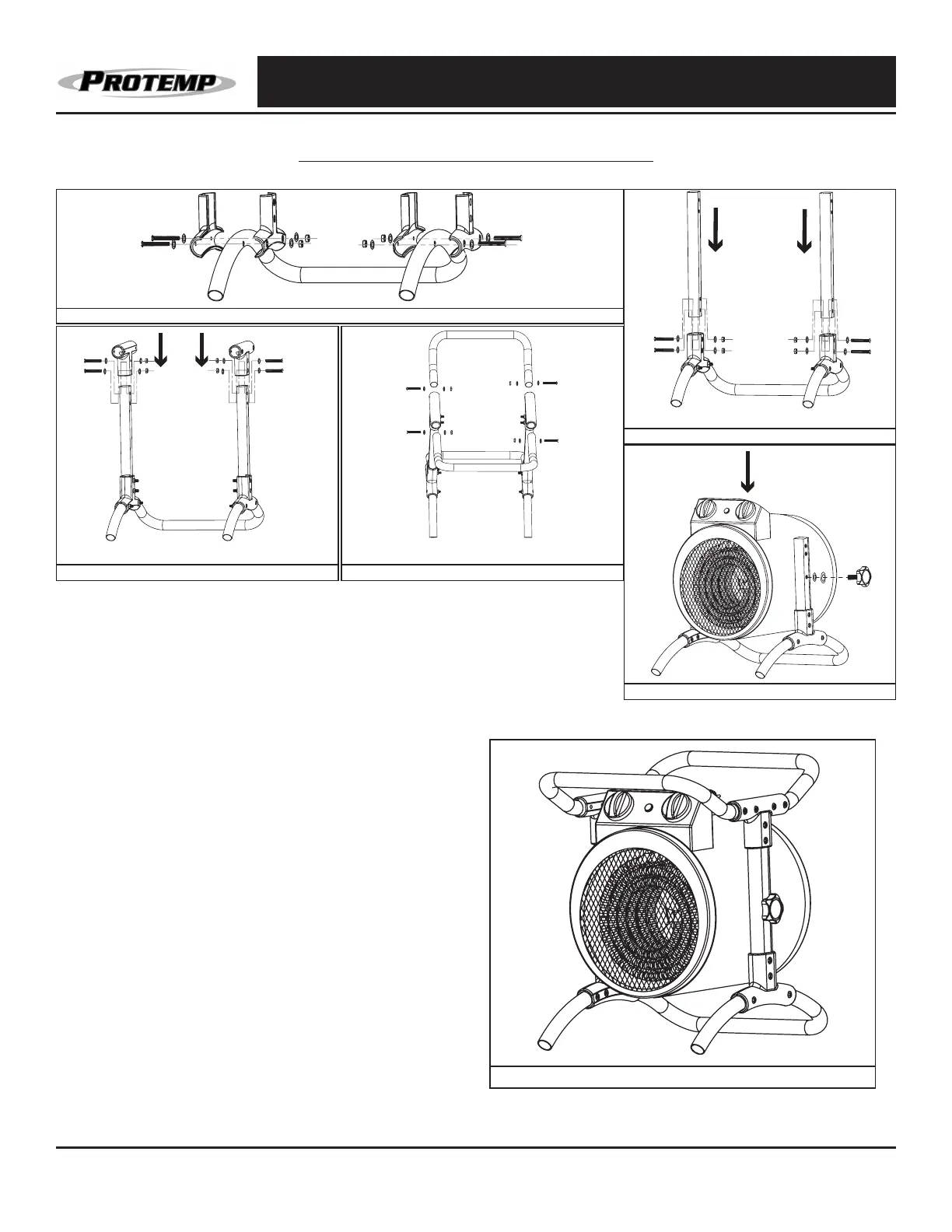

1. Align holes in heater leg frame with lower
inner bracket.
2. Attach lower outer bracket to lower inner
bracket using screws.
3. Align lower inner bracket with side support.
4. Attach side supports to heater using tilt
adjustment knob.
5. Slide side supports into upper brackets, align
holes and insert screws to tighten.
6. Slide upper handle brackets onto front
handle, align holes and insert screws to
tighten.
7. Slide rear handle into upper handle brackets,
align holes and insert screws to tighten.
