NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A
POWER SOURCE
© 2018 Pinnacle Climate Technologies, Inc. Turbo Electric Fan Heater User’s Manual
®
MAINTENANCE
Cleaning and Maintenance
– Before cleaning the appliance, disconnect it
from the outlet and let it cool down.
– The enclosure is easy to get dirty. Wipe it
often with a soft sponge. For very dirty parts,
wipe with a sponge dipped in < 122°F water
and mild detergent, then dry the heater
enclosure with a clean cloth. Be careful not to
let the water enter the inside of the appliance
– In order to protect the enclosure, do not splash
water onto the heater, and never use a solvent
like gasoline, isoamyl acetate, toluene, etc. to
clean the heater.
OPERATION (CONT.)

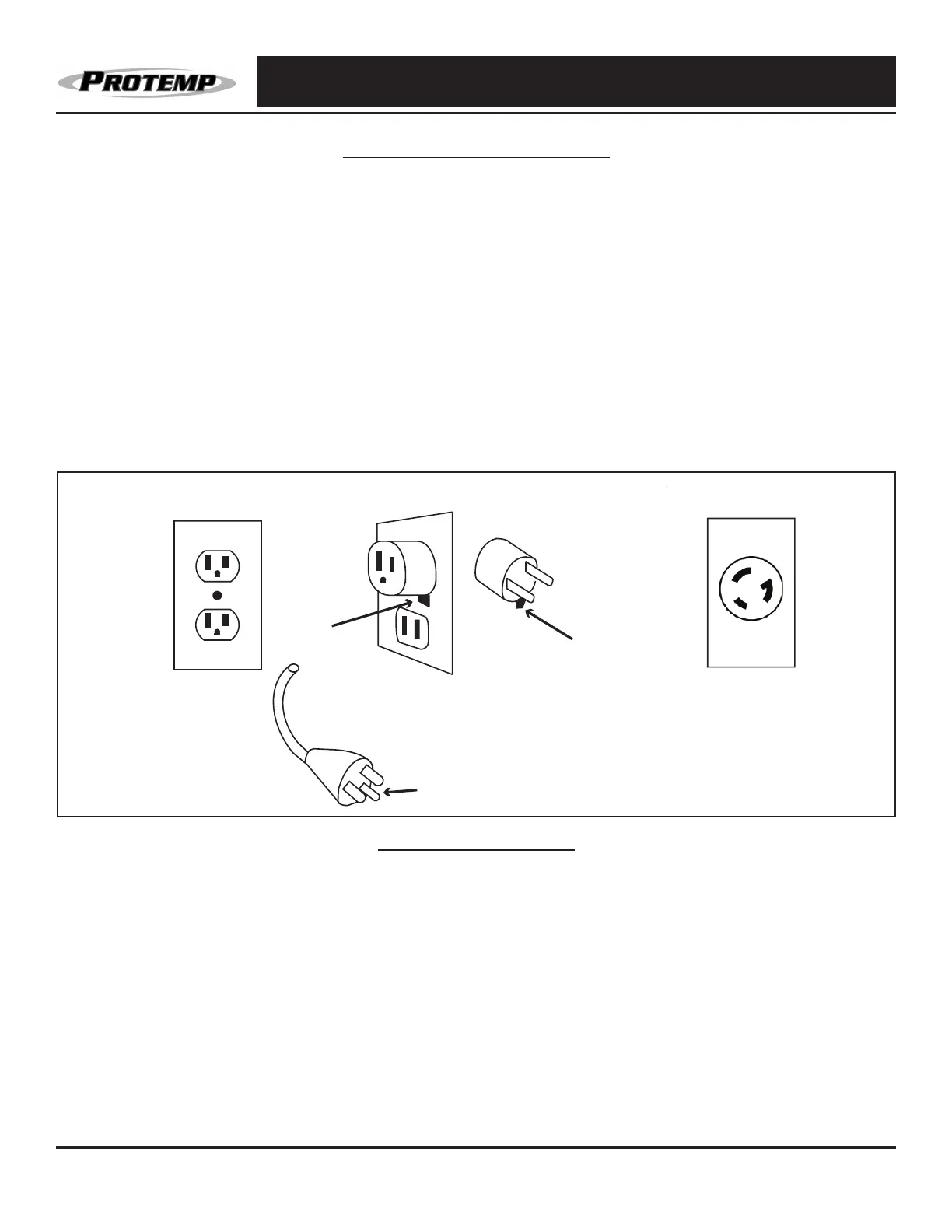

Grounding Instructions (see Figure 1)
PT-515-120:
– This heater is for use on 120 Volts. The cord
has a plug as show at A (below). An adapter
as shown at C is available for connecting
three-blade grounding-type plugs two-
slot receptacles. The green grounding lug
extending from the adapter must be connected
to the permanent ground such as a properly
grounded outlet box. The adapter should not
be used if a three-slot grounded receptacle is
available.
PT-53-240:
– This heater is for use on 240 (or 208)
volts. The cord has a plug as shown in D
(below). No adapter is available for this blade
configuration, and none should be used. The
type outlet is a 240 (or 208) volt grounding
outlet. When properly installed, it provides
a ground connection through the cord to the
heater to protect the operator from electric
shock.
6
B
A
D
C
Grounding Means
Grounding Pin
Metal Screw
Grounding Methods
Figure 1
