INSTALATION
Hydraulic connection6
The boiler connection terminals may not be placed under
undue pressure from the piping system for the CH circuit, the
HW circuit or from the gas intake. This assumes a precise
observance of the dimensions of the endings of all connecting
pipes, with regard to height as well as distance from walls and
separation distances of the interconnected individual intakes
and outlets.
The heating system circuit should be connected to the boiler in
such a way that during repairs to the boiler the heating water
need be released only from the boiler.
1
2
3
4
5
6

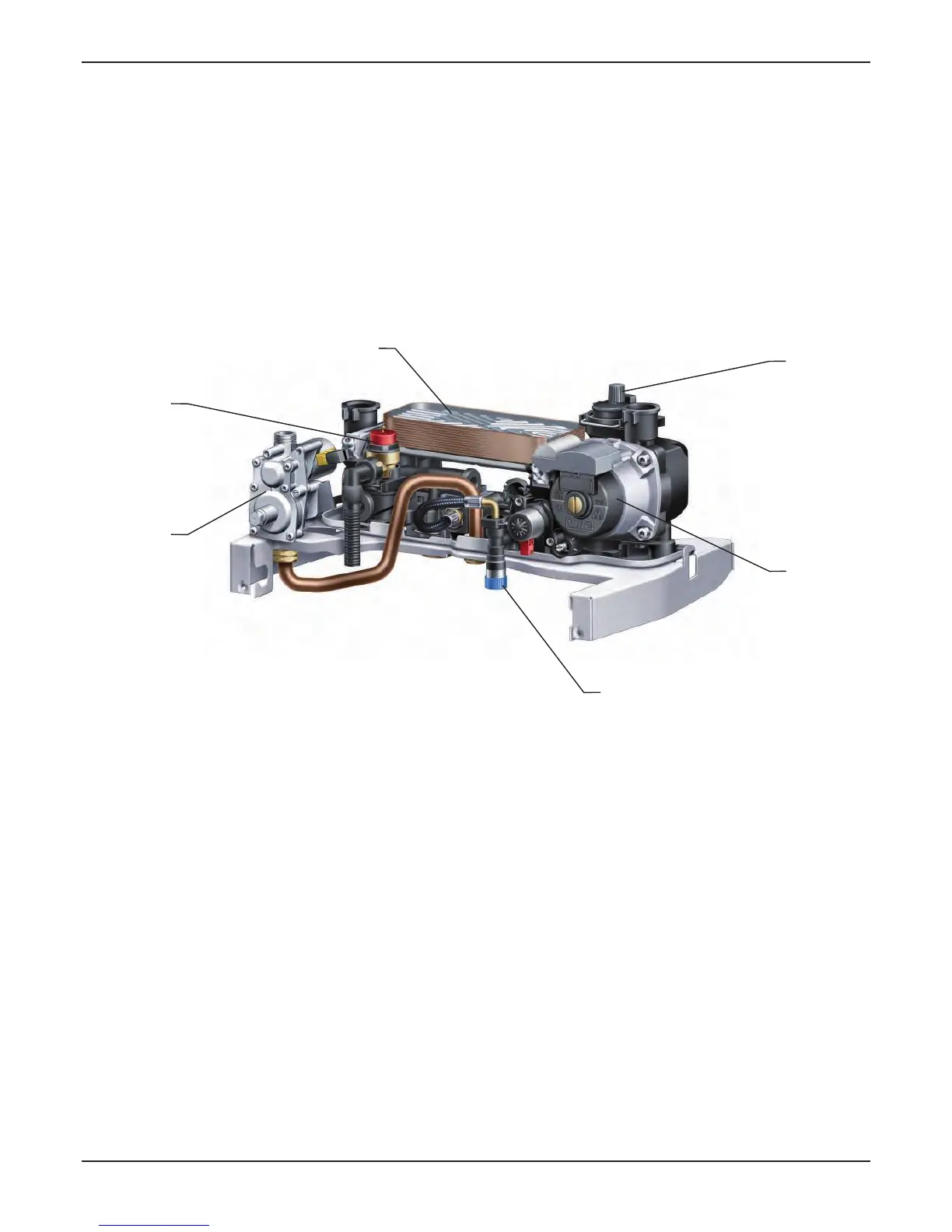

Legend
1 gas valve
2 safety valve
3 plate to plate heat exchanger - 12 plates
4 auto air vent
5 WILO AC pump with two automatic speeds
6 fi lling loop
