INSSTCP0408

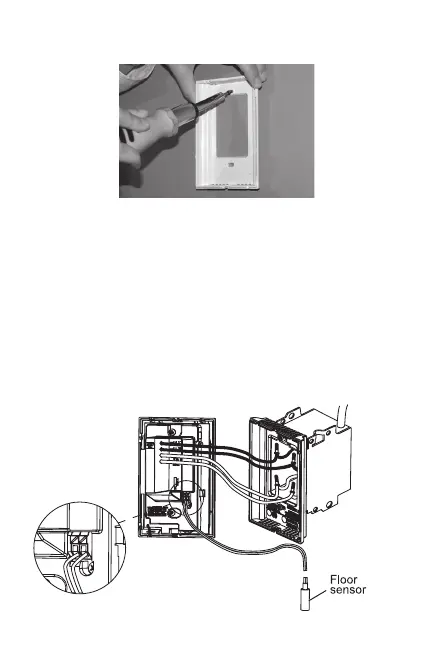

4. Align and secure the mounting base to the connection box
using the two screws supplied.
5.Route wires coming from the wall through the hole of the
mounting base and make the required connections using the
“Four-wire installation” figure, and using the supplied solder-
less connectors. A pair of wires (black) must be connected
to the power source (120-208-240 VAC) and another pair
(yellow) must be connected to the heating cable (refer to the
drawings displayed on the back of the thermostat). For con-
nections with aluminum wires, you must use CO/ALR connec-
tors. Please note that thermostat wires do not have polarity,
meaning that any wire can be connected to the other. Then,
install the floor temperature sensor.
Four-wire installation
