Proxim Tsunami 8000 series User Manual

Advanced Configuration
Tsunami
®
800 & 8000 Series - Software Management Guide 120

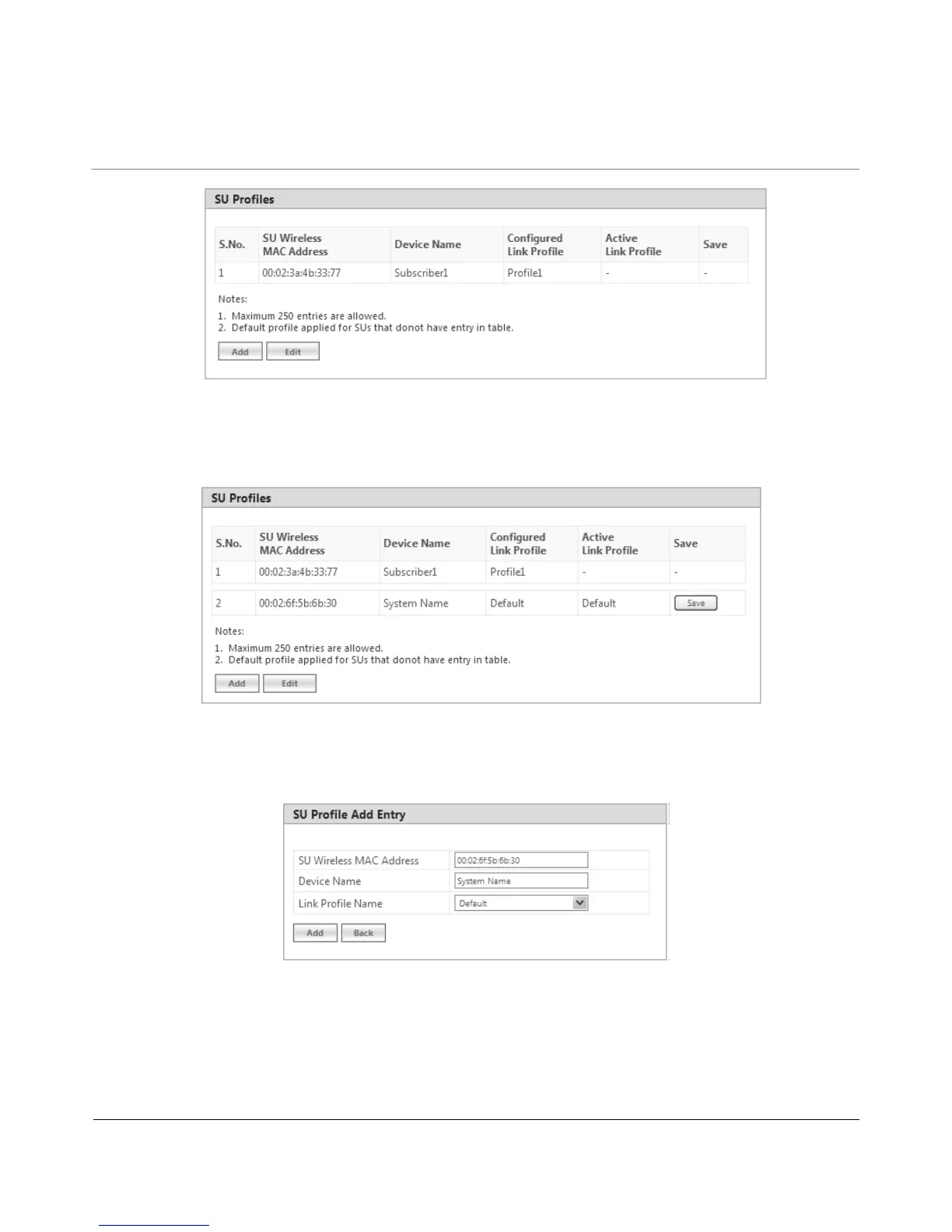

Figure 5-45 SU Profiles Entry Added
Consider a case where a device is currently connected to its peer and no link profile is explicitly mapped. Then in such a
scenario, the default link profile is assigned and displayed in the SU Profiles screen along with a Save option, as shown
below:
Figure 5-46 Save an SU Profile
For such entries, user has the option to click Save button and configure this mapping in the profiles table.
When you click Save, the following screen appears:
Figure 5-47 Add an SU Profile
If you wish to map the peer with a profile other than default, then select a link profile (say Profile1) from Link Profile Name
and click Add.
