Tsunami
®
800 & 8000 Series - Software Management Guide 135
b. SF class: DL-G729 20 ms VoIP rtPS
– PIR: Vonage VoIP DL; PIR Priority: 1
– PIR: Cisco VoIP DL; PIR Priority: 1
5. 2Mbps Video
a. SF class: DL-2Mbps Video
– PIR: Streaming Video (IP/TV); PIR Priority: 1
5.6.2 QoS Configuration
There are several pre-defined QoS classes, SFCs, and PIRs available that cover the most common types of traffic. To add new
QoS classes, SFC and PIR, build the hierarchy of a QoS class as follows:
1. If new MAC Address, IP Address, and/or TCP/UDP Port are necessary, define the PIR MAC Address, IP Address and/or
TCP/UDP Port Entries.
2. Define PIRs and specify packet classification rules, associate MAC Address/IP Address/TCP-UDP Port Entries if required.
3. Define SFCs
4. Define QoS Class by associating PIRs with relevant SFC.
5. Assign priorities to each PIR within each SFC.
For detailed instructions on configuring a management station (a single station used for managing an entire network), refer
to
| k | k C k k k
.
5.6.2.0.1 QoS PIR MAC Address Configuration
1. Navigate to ADVANCED CONFIGURATION > QoS > PIR List > MAC Address Entries, the QoS PIR MAC Address
Entries screen appears:
2. Three predefined MAC Address entries are displayed in this page. You can configure a maximum of 256 entries. MAC
Address and Mask combination should be unique. This MAC Address entry can be referred in the PIR Rule’s Source or
Destination MAC Address Classification. MAC Entry referred by any PIR rule cannot be deleted.

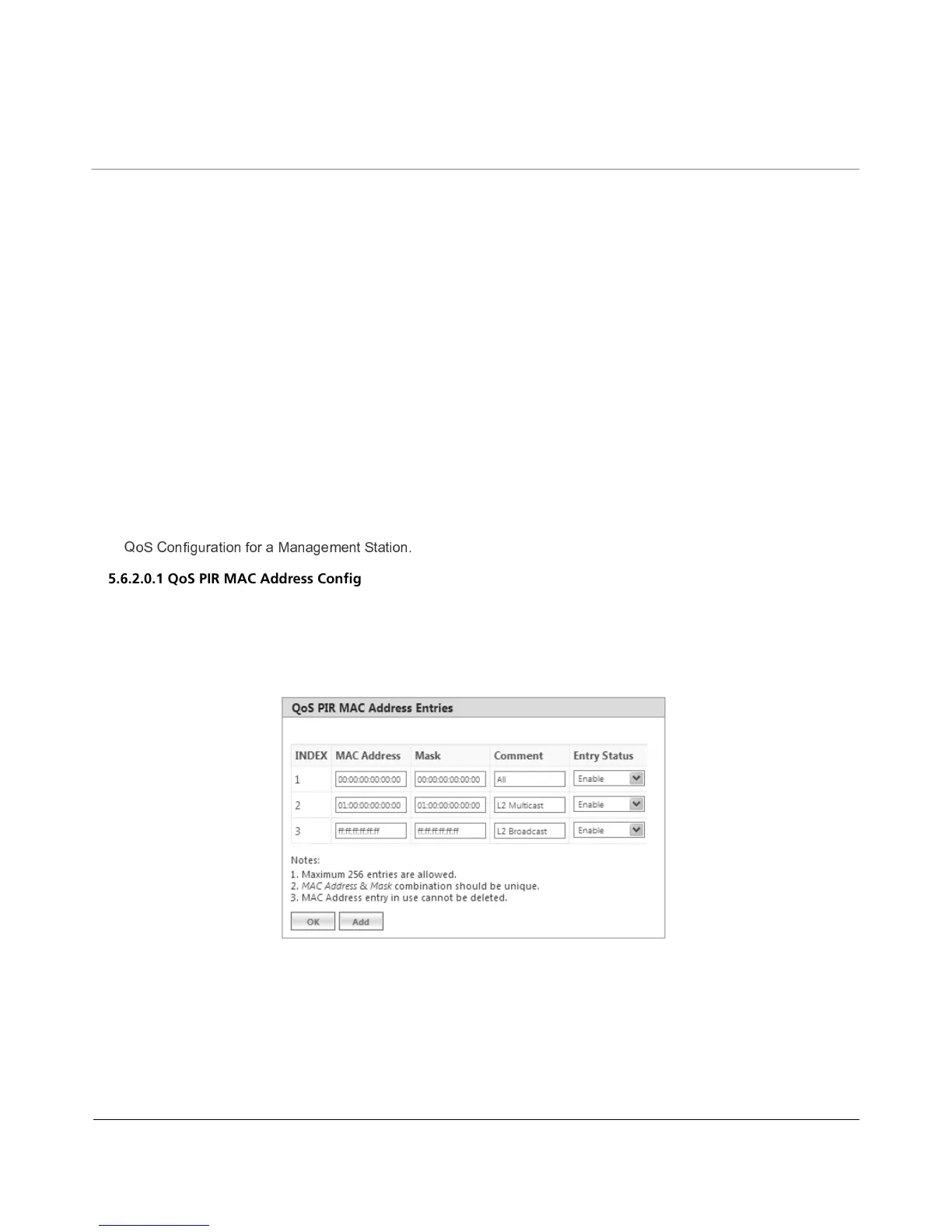

Figure 5-57 QoS PIR MAC Address Entries
3. Click OK.
To Add a New PIR MAC Address Entry,
a. Navigate to ADVANCED CONFIGURATION > QoS > PIR List > MAC Address Entries, the QoS PIR MAC Address
Entries screen appears.
b. Click Add on the QoS PIR MAC Address Entries screen to add a new entry. The following screen appears for
configuring the MAC Entry Details.
