• Use only sensor connection boxes supplied by the manufacturer.
2 Description of the controller
The controller is used for monitoring and controlling a solar thermal system. The controller
allows the system to be configured in accordance with the local situation at the place of use
and with the requirements of the user. In addition, the controller can be used to carry out
system protection functions.

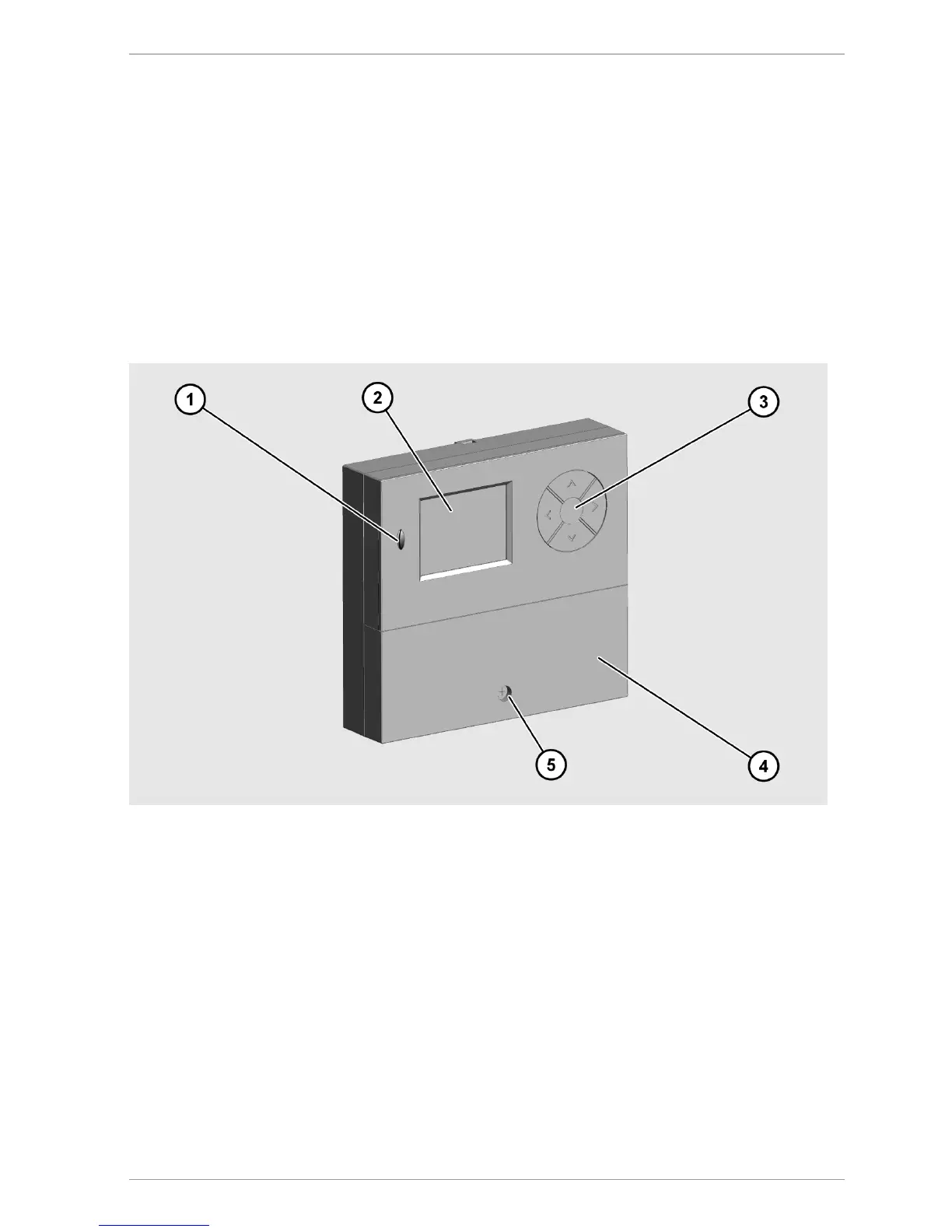

2.1 Overview
microSD card interface
Display
Operating buttons
Terminal cover
Locking screw
The display (2) shows the menus for monitoring and controlling the solar power system. The
operating buttons (3) allow you to display and change the parameters.
For data exchange purposes the controller is equipped with a microSD card interface (1).
