5

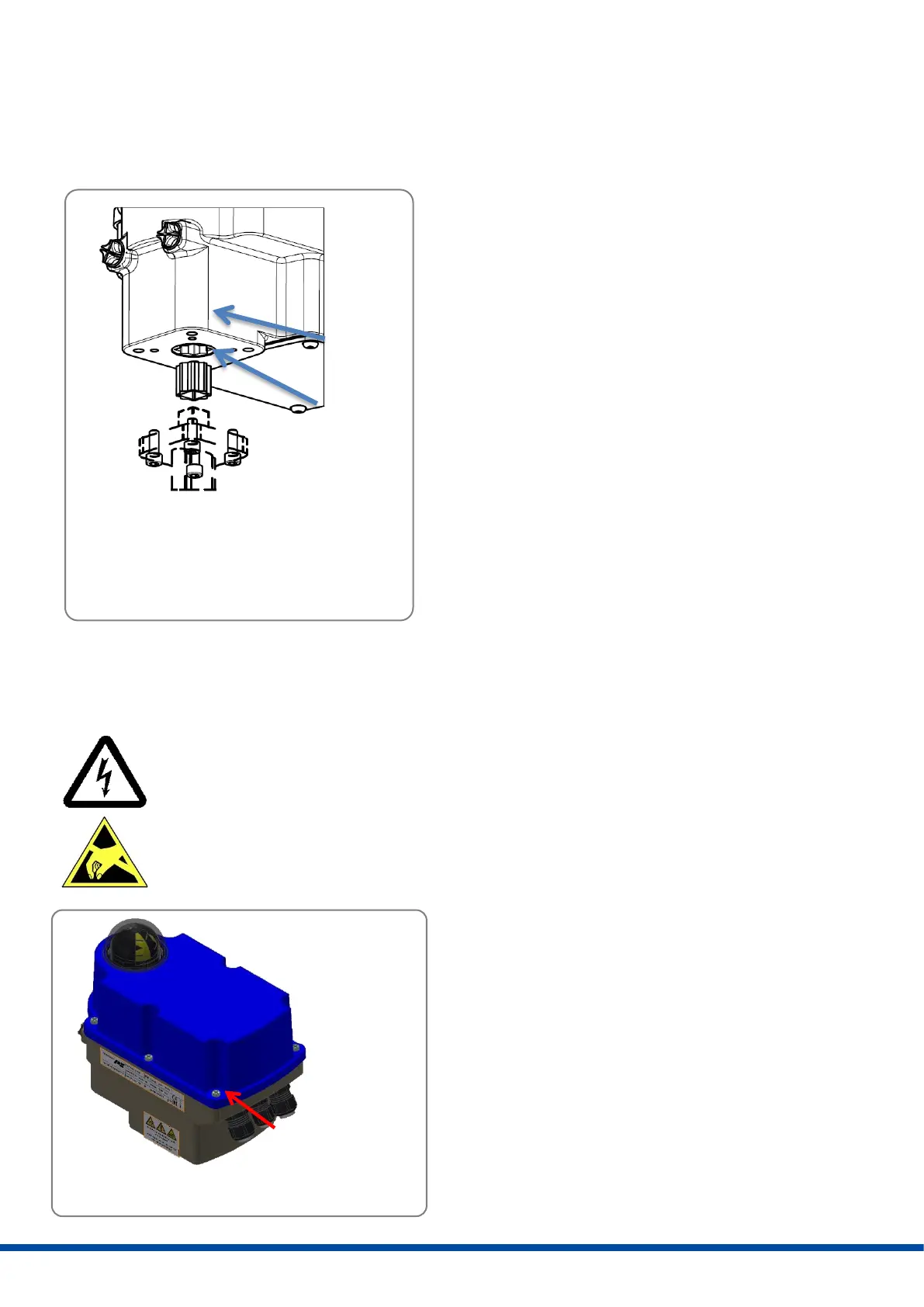

Pos. 1: Actuator flange
Pos. 2: Adapter for valve spindle
4. Valve mounting
The PSF-Q actuators are designed with a mechanical interface according to ISO 5211 for valve mounting. The gear
contains an exchangeable drive bush to connect the actuator to the valve shaft.
Check if the actuator flange suits the valve flange.
Check whether the plug-in coupling of the actuator
matches the design of the valve shaft. If necessary,
commercially available adapters can be used to adapt to
the valve shaft.
Connect the drive electrically (see 6.).
Position the actuator by means of manual operation
(see 10.) so that it matches the position of the valve.
Clean the surface of the connection components,
lubricate valve shaft slightly.
Tighten the screws in a diagonal sequence according to
the required torque.
Figure 4: Actuator flange
5. Removing and closing the cover
Open the cover only in a dry environment.
Attention! Observe precautions for handling. Ground the actuator. Before opening the cover, touch
grounded housing parts.
Open:
Loosen the screws by using a screwdriver and unscrew
them entirely out of the gear casing. The screws are
protected against loss. Carefully remove the cover so that
the injected seal is not damaged.
Close:
Put the cover on the gear casing and press down slightly.
Tighten the screws gently and then crosswise.
Figure 5: Removing and closing the cover
Hexagon socket
screws
