6. Electric supply
Switch mains off before starting to work.
The wiring diagram inside the actuator is binding for the specific actuator wiring. For any optional accessories, see
the separate wiring diagram in the corresponding installation instructions.
*optional

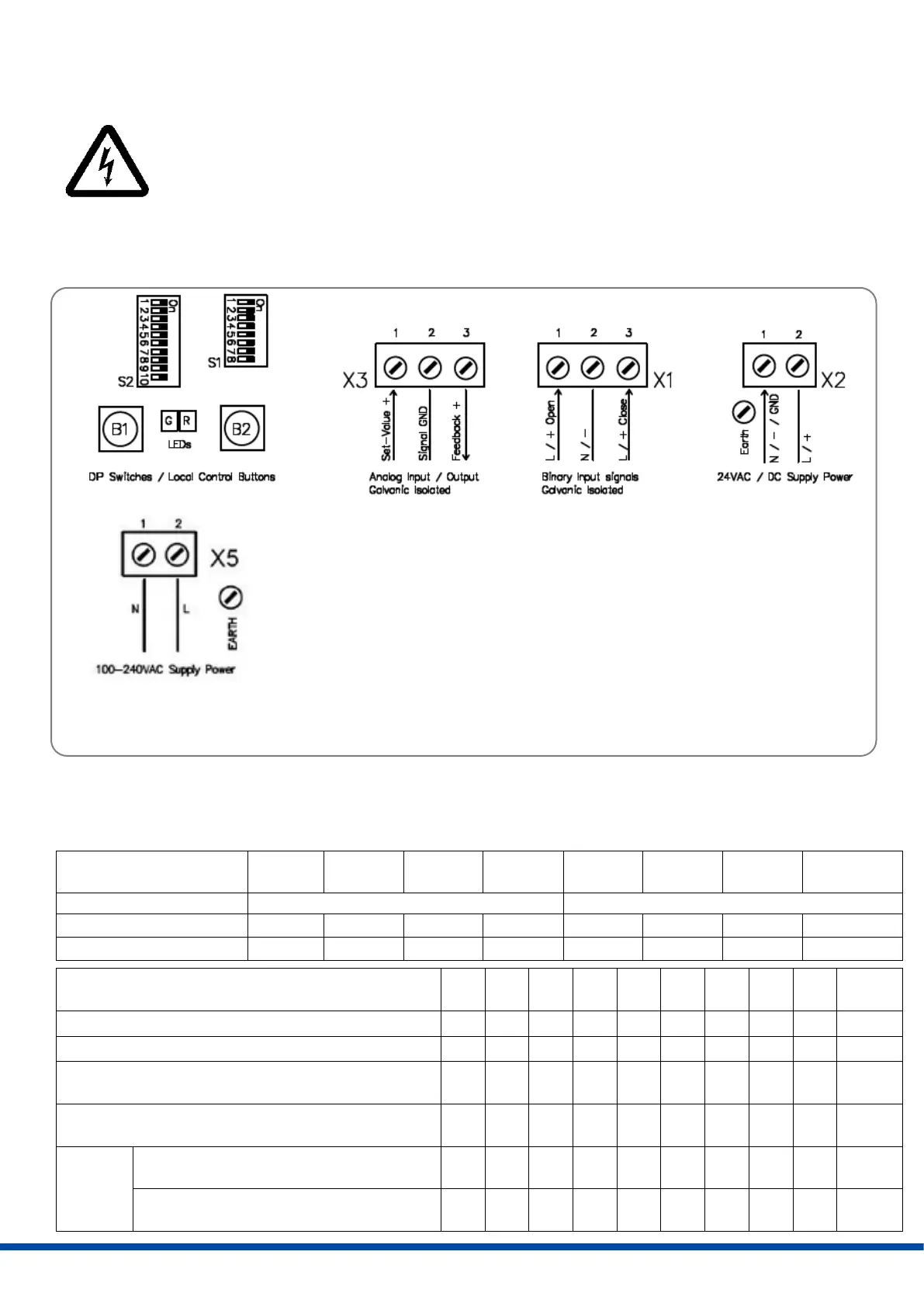

Figure 6: Electric supply
7. Signalisation and functions
7.1 DIP switches
S1
Function
1
2
3
4
5
6
7
8
Signal
Set value
Position feedback
Voltage
On
On
Off
Off
Au Off s
On
Off
On
Current
Off
Off
On
On
On
Off
On
Off
S2
Function
1
2
3
1)
4
1)
5
6
7
8
9
1)
10
Control via set value
On
Control via binary inputs
Off
output valve shaft counterclockwise (CCW) with
increasing set value
On
output valve shaft clockwise (CW) with increasing
set value
Off
Auto-
matic
Commis-
sioning
Close
2)
with torque /
Open
2)
with torque
On
On
Off
Close
2)
with torque /
Open
2)
with torque
On
On
On
