150M Wireless N ADSL2+ Router
- 28 -

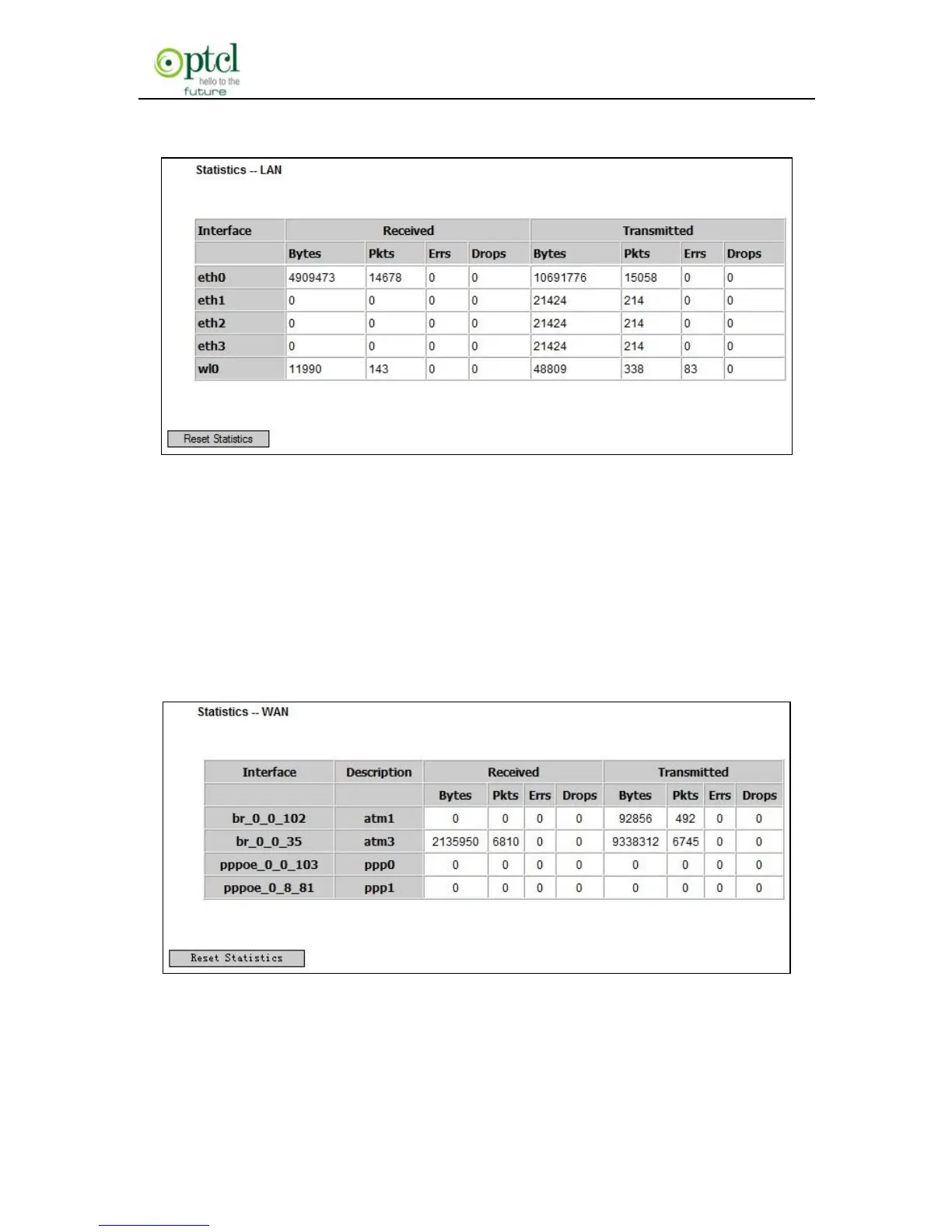

the device’s LAN ports as shown in the figure below:
Note: eth0, eth1 and eth2 are respectively port1, 2 and 3 of the device;
and wl0 is a wireless port.
Statistics—WAN: It displays the received and transmitted packets of
the device’s WAN port as shown in the figure below:
Statistics-xDSL: It displays statistic information of ADSL connection
including mode, traffic type, status and other ADSL parameters as
