150M Wireless N ADSL2+ Router
- 80 -
Group Name：The name of the configuration rule.
WAN Interface used in the grouping: WAN connection that
needs to be grouped.
Available LAN Interfaces: Interfaces that can be grouped.
Grouped LAN Interfaces: LAN interface that needs to connect
with specified WAN interface
Example:
Your ADSL line supports two groups of PVC; the PVC that used to
transmit network data is ppp0 and the PVC that used to transmit IPTV
data is atm1.and you wish your router’s LAN2 port is particularly used
for IPTV and the IPTV data will not be sent to other ports.
The configurations are as follows:
Configure two groups of PVC: ppp0 and atm1 (for the configuration
steps, please refer to the chapter for WAN configuration).

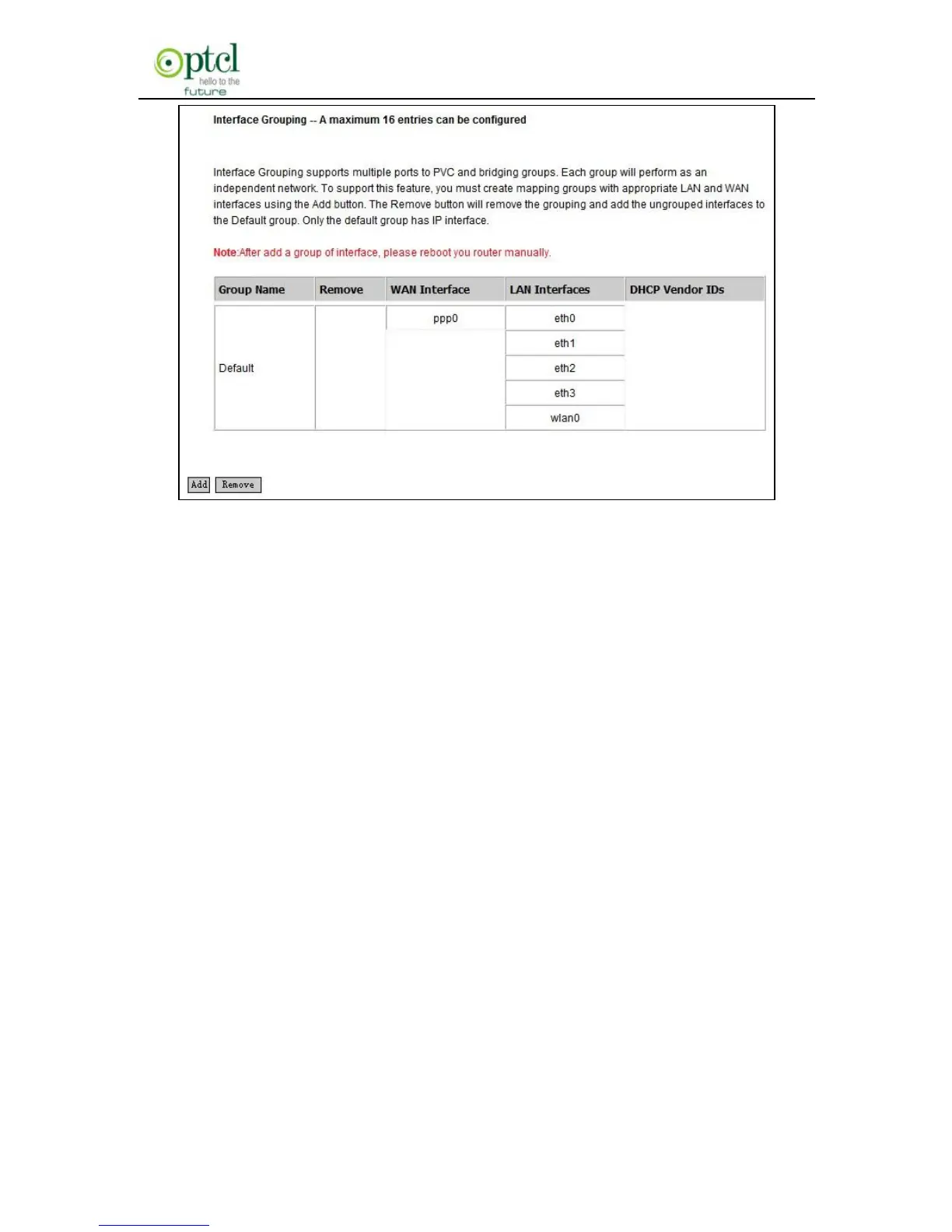

Click ―Advanced Setup‖ -> ―Interface Grouping‖ to enter the screen
