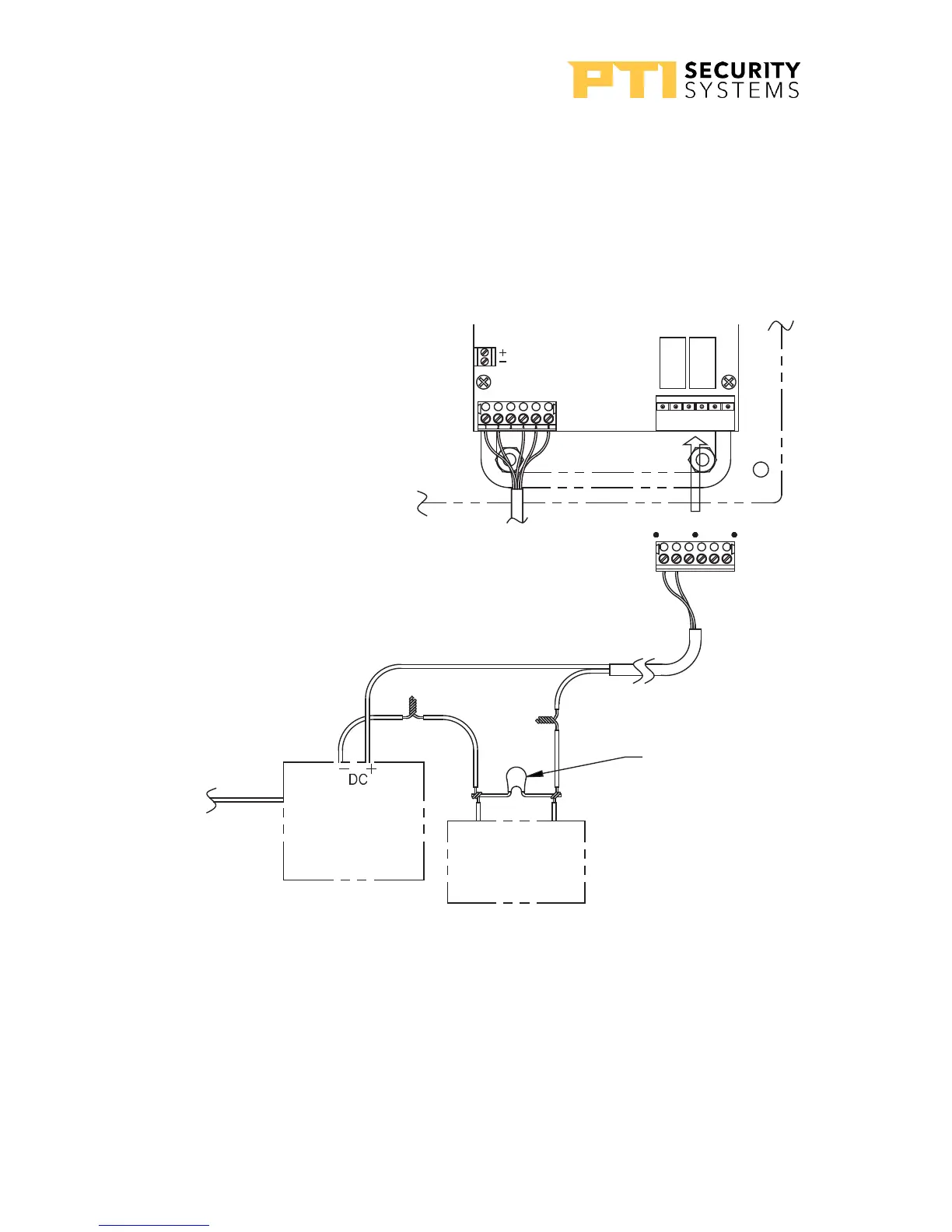

Drawing 18: Door strike wiring
In “Drawing 18: Door strike wiring” on page 22, the two wires
that connect to the relay are labeled C1 and NO1. These should
be connected to the Common and Normally Open contacts of
one of the relays. The door strike can be connected to either relay
if the Extended Door controls are not being used.
18
After all wiring is complete, gently push the excess wire
back through the hole in the wall or gooseneck, leaving just
enough slack to allow the keypad to be opened for service
or maintenance. Seal the back wire hole with outdoor rated
silicone sealant and then screw the housing back together.
APEX Access Device
22
114A3863.E rev. 7-2017
