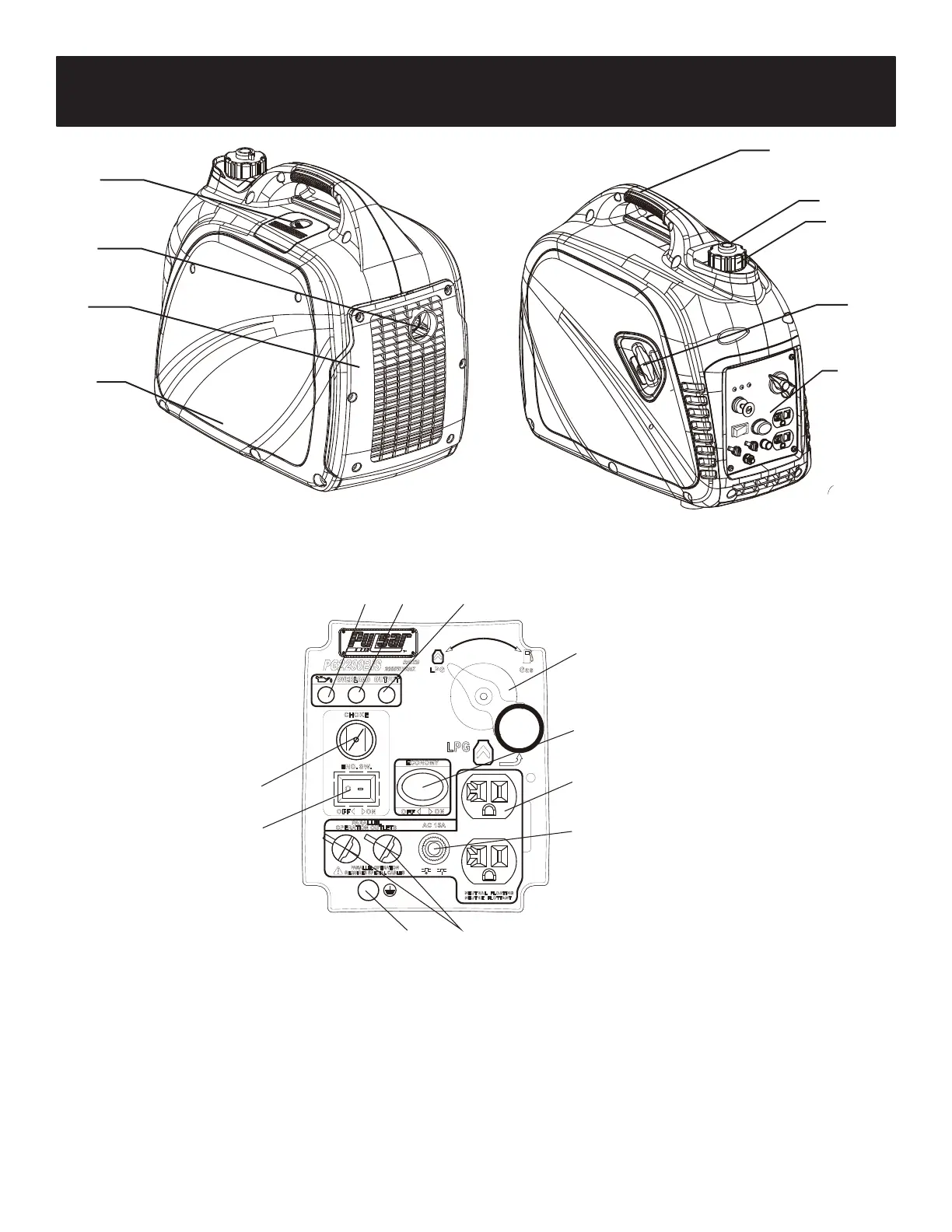

Pulsar PG2200BiS - Generator Features Overview; External Generator Components; Control Panel Component Identification

E
A
F
G
B
C
H
D
I
Q - Parallel Outlets
R - Ground Terminal
S - Engine Switch
T -
Choke
A - Spark Plug Cover
B - Spark Arrestor
C - Muffler Cover
I - Control Panel
J - Oil Warning Light
K - Overload Indicator Light
L - AC Pilot Light
M - Fuel Selector
N - Power Switch
O - 120V AC 15A Duplex Outlet
P - AC 15A Circuit Breaker
7
D - Outer Casing (Side Panel)
E - Handle (Grip)
F - Air Vent
G - Fuel Cap
H - Recoil Starter
FEATURES
J
KL
M
N
O
P
Q
R
S
T
1800W
120V AC 15A
