Puma 20 - Adjusting Mechanical Seat Tilt

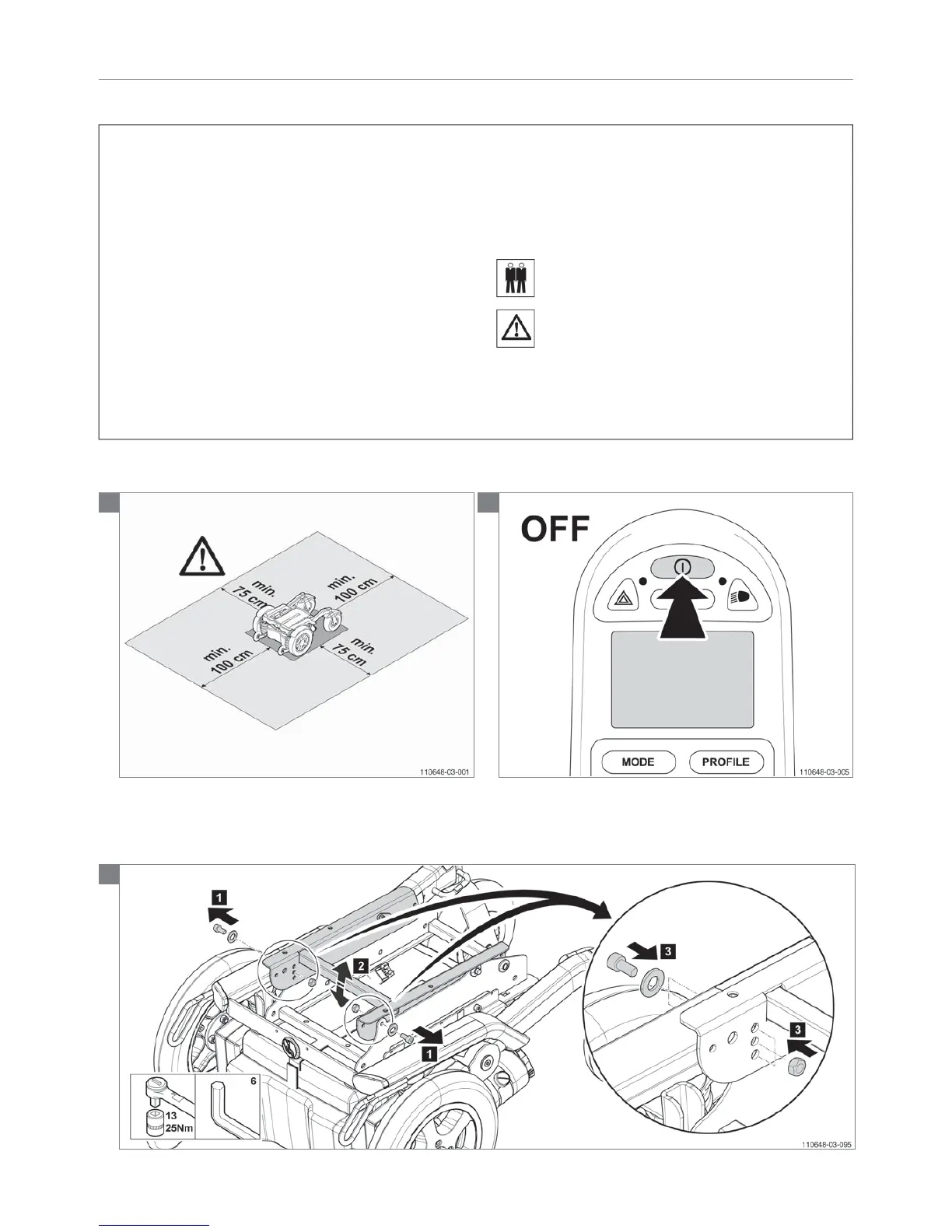

5.2.21 Adjusting the mechanical seat tilt
Preparation
Switch off the wheelchair via the remote control.
Instructions
• Remove the entire seating unit from the carrier. Two
people are needed to carry out this operation.
(See instruction: Converting front wheel drive (FWD) to
rear wheel drive (RWD), Step 2 Remove interface and
seating.)
• Loosen the 2 bolts in the interface frame
• Move the upper part of the interface in the desired
position
• Tighten the 2 bolts
• Replace the seat on the interface
Relevant article numbers
9006016 Mechanical tilt
Tools used
• Torque wrench, socket, 13 mm
• Allen key, 6 mm
Icons
Action must be carried out by two persons!
Note! Be aware of the issue!
1
Note! Suitable work area required!
2
3
Caution! Changing the wheelchair’s tilt position may negatively infl uence the wheelchair’s driving characteristics! Please read the
user manual!
