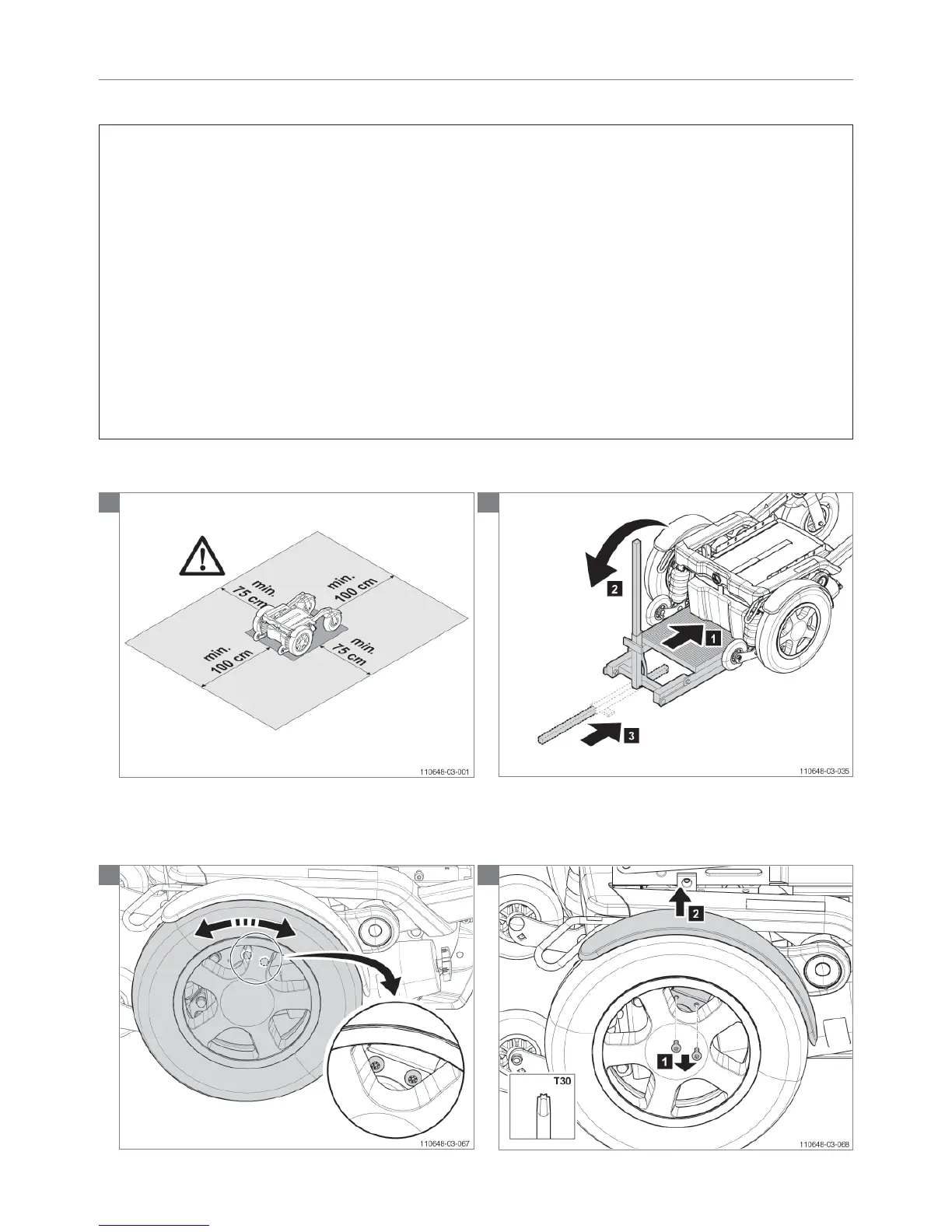

5.2.16 Replacing the mudguards
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive wheels clear of the
ground.
Instructions
• Turn the drive wheel in the correct position.
• Loosen (through the rim) the 2 bolts of the mudguard
brackets on the motor arm.
• Remove the mudguards with brackets.
• Tighten the new mudguard with brackets on the motor
arm.
Relevant article numbers
0001.1110 Rivets alu 3,2 x 10
9002600 Drive wheel bolt and ring
9005978 Drive wheel fender with bracket
Tools used
• Lifting device
• Torx key T30
1
Note! Suitable work area required!
2
3
4
90 | Service instructions Puma 20/40/6090 | Service instructions
