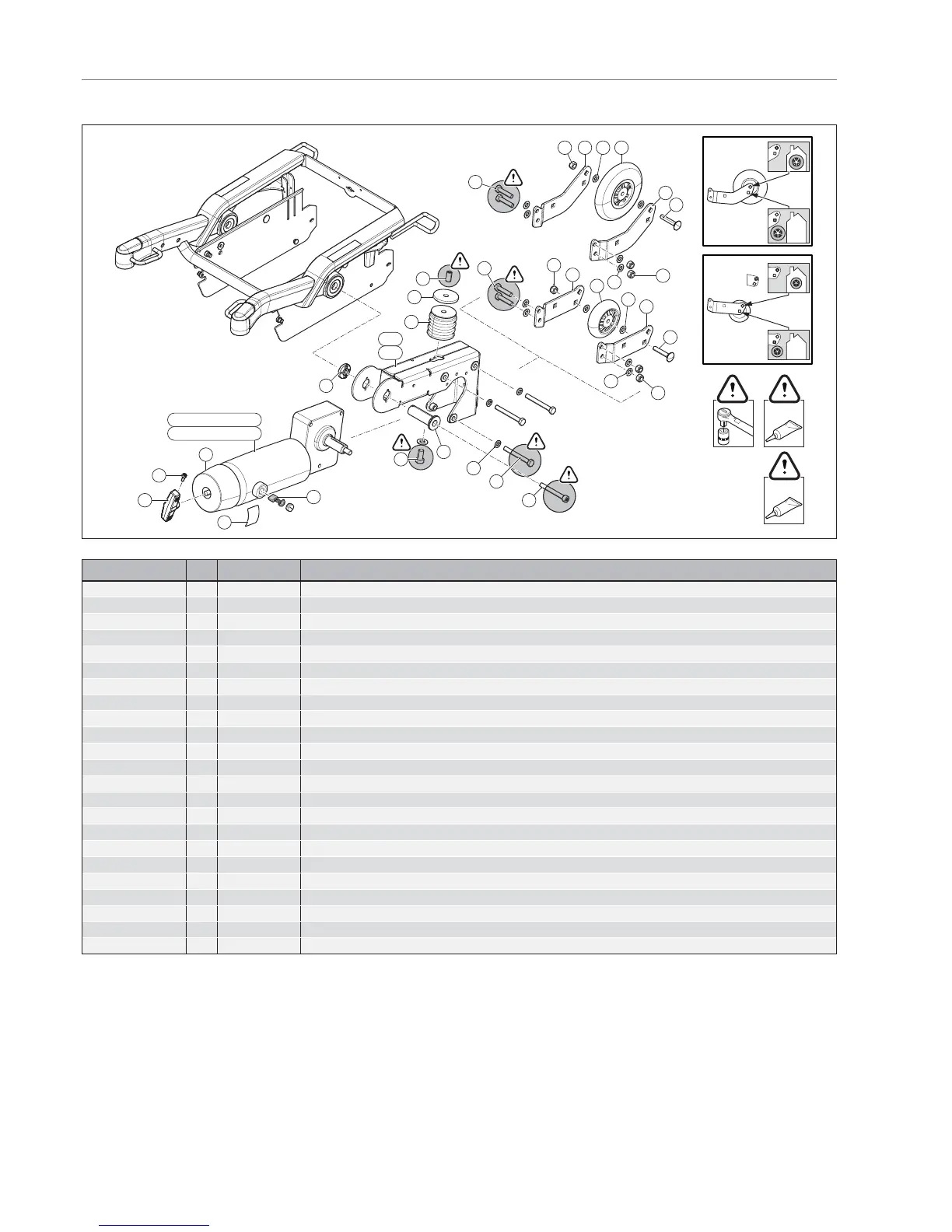

Puma 20 - Suspension Arm and Motors (Puma 20)

Pos Qty Article number Description
1-9 2 9005963 Anti tip complete FWD
1,3,4,6 2 9002896 Anti tip wheel FWD
10-18 2 9005962 Anti tip complete RWD
10,12,13,15 2 9002897 Anti tip wheel RWD
19-21,23 1 9005964 Rubber suspension set
24a,25-29 1 9005939 Motor bracket right
24b,25-29 1 9005938 Motor bracket left
28-32,33,37,38 1 9007478 Motor set, 6 km/h DX and Shark, Puma 20
28-32,33a,37,38 1 9007479 Motor RWD right/FWD left, 6 km/h DX and Shark, Puma 20, see paragraph 5.2.1.
28-32,33b,37,38 1 9007480 Motor RWD left/FWD right, 6 km/h DX and Shark, Puma 20, see paragraph 5.2.1.
28-32,34,37,38 1 9007481 Motor set, 6 km/h PG (R-net and VR2), Puma 20
28-32,34a,37,38 1 9007482 Motor RWD right/FWD left, 6 km/h PG (R-net and VR2), Puma 20, see paragraph 5.2.1.
28-32,34b,37,38 1 9007483 Motor RWD left/FWD right, 6 km/h PG (R-net and VR2), Puma 20, see paragraph 5.2.1.
28-32,35,37,38 1 9007484 Motor set, 10 km/h DX and Shark, Puma 20
28-32,35a,37,38 1 9007485 Motor RWD right/ FWD left, 10 km/h DX and Shark, Puma 20, see paragraph 5.2.1.
28-32,35b,37,38 1 9007486 Motor RWD left/FWD right, 10 km/h DX and Shark, Puma 20, see paragraph 5.2.1.
28-32,36,37,38 1 9007487 Motor set, 10 km/h PG (R-net and VR2), Puma 20
28-32,36a,37,38 1 9007488 Motor RWD right/FWD left, 10 km/h PG (R-net and VR2), Puma 20, see paragraph 5.2.1.
28-32,36b,37,38 1 9007489 Motor RWD left/FWD right, 10 km/h PG (R-net and VR2), Puma 20, see paragraph 5.2.1.
30-31 2 1015807 Freewheel lever
32 2 9002784 Brake Release Sticker
37 1 9006360 Puma 20 Motor Brushes 4pc service
38 2 9006452 Puma 20 Motor Brake Cover service
Pos Qty Article no Description
4 Suspension arm and motors Puma 20
SM_P20_RWD_03
