Puma 20 - Replacing Castor Fork

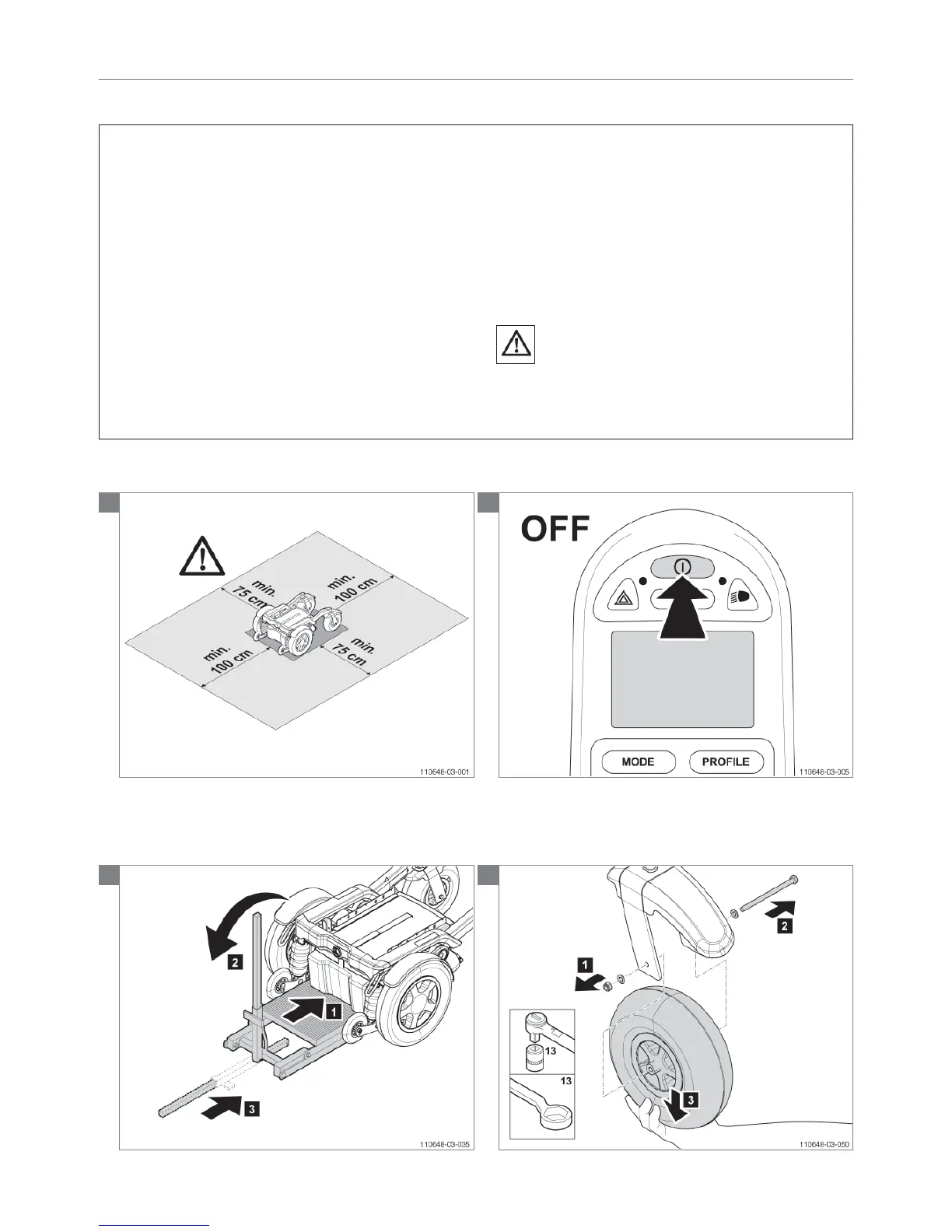

5.2.10 Replacing the castor fork
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive and castor wheels
clear of the ground.
Instructions
• Remove the castor wheel. (See instruction: Replacing
the castor wheel)
• Remove the ball head cover and loosen the bolt,
washers and shaft that hold the castor fork in the castor
arm.
• Take the castor fork out of the castor arm.
• Remove the fender from the castor fork (not valid for
Puma 20).
• Replace the fender on the new castor fork.
• Mount the castor fork and wheel in the reverse order.
Relevant article numbers
9005932 Castor fork (9" and 10")
9007752 Castor fork 60 mm (8") (only for Puma 20)
Tools used
• Lifting device
• Torque wrench, socket, 13 mm
• Torque wrench, Torx key T30
• Circlip pliers
• Loctite 243
Icons
Note! Be aware of the issue!
1
Note! Suitable work area required!
2
3 4
Service instructions | 79
Puma 20/40/60
Service instructions | 79
